IHDAPP AX200NGW Wi-Fi 6 M.2 adapter Bluetooth 5.0
Dual-band Wi-Fi 6 M.2 adapter with Bluetooth 5.0 reaching 2400 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- TypeM.2 Wi-FI Adapter
- Wireless Data RatesSpeed up to 2400Mbps(5Ghz), 574Mbps(2.4Ghz)
- InterfaceNGFF(M.2)
- Frequency Band2.4 GHz / 5 GHz
- AntennaDual Band Antenna
- Wi-Fi 6 AX200 delivers up to 2.4 Gbps throughput for faster downloads
- Bluetooth 5.0 enables reliable connections with modern peripherals
- 2x2 MU-MIMO dual-band antennas improve signal stability on 2.4 GHz and 5 GHz
- M.2 2230 form factor fits compatible Intel-based laptops running Windows 10 64-bit
- Driver installation via USB flash drive simplifies setup without CD-ROM
Wi-Fi 6 M.2 adapter for Intel laptops

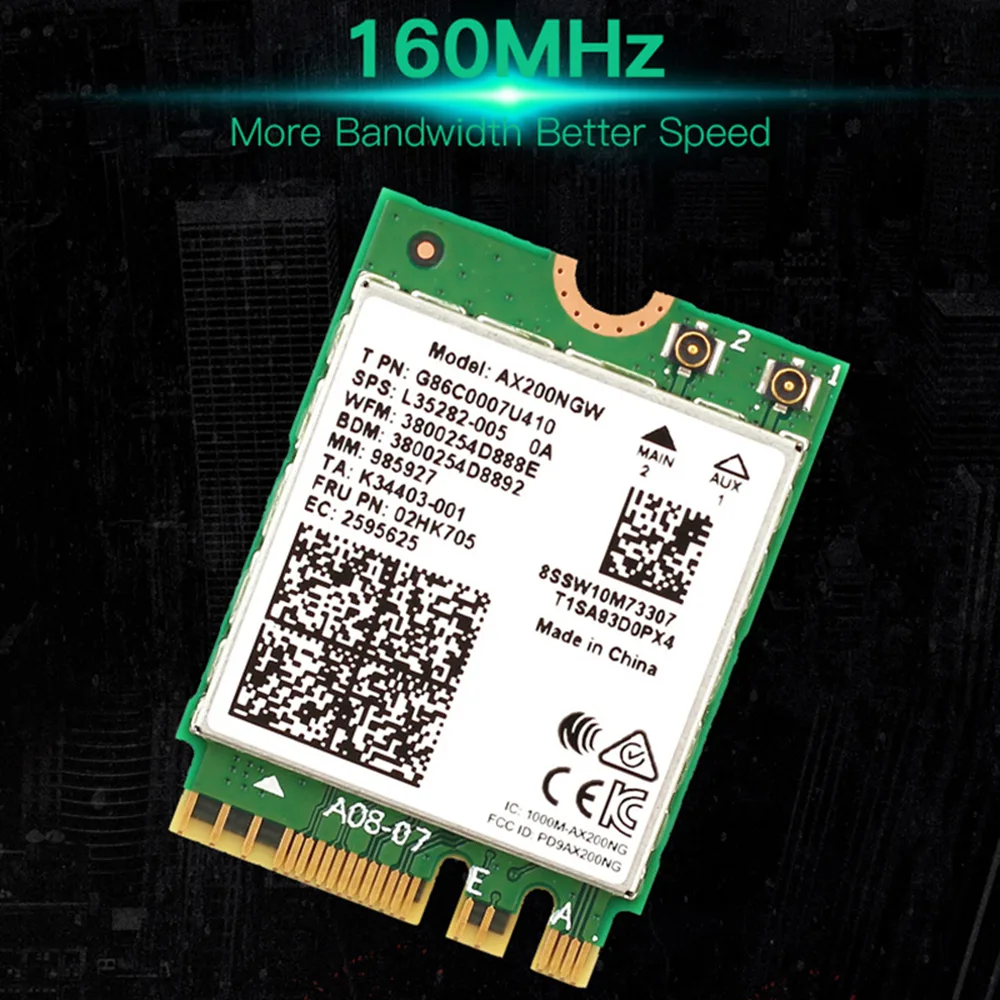

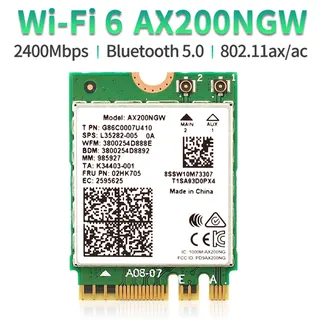

The IHDAPP AX200NGW adds Wi-Fi 6 and Bluetooth 5.0 to compatible Intel-based laptops through an NGFF M.2 2230 slot. It delivers dual-band 2.4 GHz and 5 GHz connectivity with 2x2 MU-MIMO antennas. Driver installation is handled via a supplied USB flash drive and works on Windows 10 64-bit or Linux kernel 5.1 and later. Systems with BIOS whitelist restrictions such as older Lenovo or HP models are not supported.
Thermals and power in daily use
The module draws power directly from the M.2 slot and operates without a dedicated heatsink or fan. Typical wireless traffic produces minimal heat and no audible noise. Peak throughput of 2400 Mbps on 5 GHz and 574 Mbps on 2.4 GHz is available when the router uses a 160 MHz channel. Backward compatibility with 802.11ac and 802.11n maintains connection stability on older networks.
Build integration and requirements
Installation requires a free M.2 2230 keyed slot and two antenna connectors on the host device. The adapter frees up USB ports by moving Wi-Fi and Bluetooth inside the chassis. It is intended for Intel platforms running Windows 10 64-bit or supported Linux distributions; AMD systems, Windows 7, 8 or 8.1, and laptops with locked BIOS whitelists cannot use this card.
Highlights
- Wi-Fi 6 AX200 delivers up to 2.4 Gbps throughput for faster downloads
- Bluetooth 5.0 enables reliable connections with modern peripherals
- 2x2 MU-MIMO dual-band antennas improve signal stability on 2.4 GHz and 5 GHz
- M.2 2230 form factor fits compatible Intel-based laptops running Windows 10 64-bit
- Driver installation via USB flash drive simplifies setup without CD-ROM
Specifications
| Type | M.2 Wi-FI Adapter |
|---|---|
| Wireless Data Rates | Speed up to 2400Mbps(5Ghz), 574Mbps(2.4Ghz) |
| Interface | NGFF(M.2) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Antenna | Dual Band Antenna |
Questions about this item
How do I install the AX200NGW into an M.2 2230 slot without triggering a BIOS whitelist error?
Insert the card at a 30-degree angle into the NGFF M.2 22x30mm slot, secure with the screw, attach the dual-band antenna cables, then install the driver from the supplied USB flash drive; the module only works on Intel-based systems running Windows 10 64-bit without a BIOS lock.
Will the Bluetooth 5.0 module need a firmware update or antenna replacement later?
The adapter uses the included dual-band antennas for both Wi-Fi 6 and Bluetooth 5.0; no separate antenna replacement is required, and Linux 5.1 kernel support handles firmware updates automatically while Windows drivers are updated via the provided executable.
At what throughput does the 2x2 MU-MIMO link saturate during sustained 160 MHz transfers?
The AX200NGW reaches a maximum of 2400 Mbps on 5 GHz and 574 Mbps on 2.4 GHz when the router operates at 160 MHz with 802.11ax; sustained loads will hit this 2.4 Gbps ceiling first.
