IHDAPP 8K@60Hz HDMI + 2 DisplayPort KVM Switch 3 Monitors 2 Computers 4K@144Hz
A KVM switch that lets two computers share three monitors and four USB 3.0 ports with push-button or wired-remote switching
- TypeHDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers
- PC Connectors1 HDMI + 2 Displayport
- Computer Connections1 HDMI + 2 Displayport
- Monitor Connections3 Ports ( 1 HDMI + 2 Displayport )
- Video ResolutionDisplayport: support resolution up to 8K@30Hz/4K@144Hz; HDMI
- PC SelectionPush Buttons and Wired Remote
- Control 2 PCs with 1 keyboard, mouse and 3 monitors
- 8K@60Hz over HDMI and 4K@144Hz over DisplayPort for sharp video
- 5Gbps USB 3.0 ports connect printers, scanners and drives
- Push-button or wired remote switching with LED status lights
- Compact 6.38×2.6×1.3 in design with 12V power included
Triple-monitor KVM for two computers
This IHDAPP switch lets two PCs share three displays and four USB 3.0 peripherals through one HDMI 2.1 and two DisplayPort 1.4 connections. It targets home-office workers and streamers who need a tidy desk without swapping cables. The unit is driver-free on Windows, macOS, Chrome OS and Linux, so setup is plug-and-play. Two colour LEDs show which computer is active at a glance.
Sustained 8K and high-refresh output
Each port maintains its rated resolution continuously — HDMI delivers 8K at 60 Hz or 4K at 120 Hz, while DisplayPort handles 8K at 30 Hz or 4K at 144 Hz. USB 3.0 ports keep 5 Gbps throughput during long file transfers, avoiding the 480 Mbps bottleneck of USB 2.0. Switching via front button or 1.52 m wired remote is instant, with no signal dropout during extended sessions. Extended and duplicate display modes are selectable with a simple hotkey combination.
Passive cooling and external power
The aluminium enclosure dissipates heat without a fan, so operation stays silent even when all three monitors run at maximum refresh. A bundled 12 V DC adapter supplies stable power for the switch and downstream USB devices, preventing port brown-outs under load. At 6.38 by 2.6 by 1.3 inches and 270 g the unit sits unobtrusively on the desk. Shorter HDMI 2.1 and DP 1.4 cables are recommended to preserve signal integrity at the highest resolutions.
Highlights
- Control 2 PCs with 1 keyboard, mouse and 3 monitors
- 8K@60Hz over HDMI and 4K@144Hz over DisplayPort for sharp video
- 5Gbps USB 3.0 ports connect printers, scanners and drives
- Push-button or wired remote switching with LED status lights
- Compact 6.38×2.6×1.3 in design with 12V power included
Specifications
| Type | HDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers |
|---|---|
| PC Connectors | 1 HDMI + 2 Displayport |
| Computer Connections | 1 HDMI + 2 Displayport |
| Monitor Connections | 3 Ports ( 1 HDMI + 2 Displayport ) |
| Video Resolution | Displayport: support resolution up to 8K@30Hz/4K@144Hz; HDMI: support resolution up to 8K@60Hz/4K@120Hz. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Two color lights indicate the active computer. |
| Power Features | with DC 12V Power Adapter |
| USB Features | KVM switch with 4 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps. |
| Application | This KVM Switch can control 2 computers sharing 3 monitors and 4 USB devices. HDMI+2*Displayport is designed with most users in mind. 2 computers, only 1 set of devices to meet all requirements with one click. |
| Features | 8K@60Hz/4K@144Hz Brings Exquisite and Lifelike Video Effects; 5Gbps Ultra-fast USB 3.0 Data Transmission; Two Easy and Fast Switching Methods; Universal Compatibility, Plug and Play |
| Dimensions | 6.38 x 2.6 x 1.3 inches |
| Weight | 270g |
| Package Contents | 1*Triple Monitor USB3.0 KVM Switch; 2*USB3.0 Cables(1.5m/4.9ft); 1*Wired remote controller(1.52m/5ft); 1*User manual; 1*12V Power Adapter(1.52m/5ft). |
Questions about this item
Does the IHDAPP KVM switch run hot or make any noise when it powers three monitors all day?
The unit has no fan and draws power from an external 12 V adapter, so it runs silently and stays cool during continuous use.

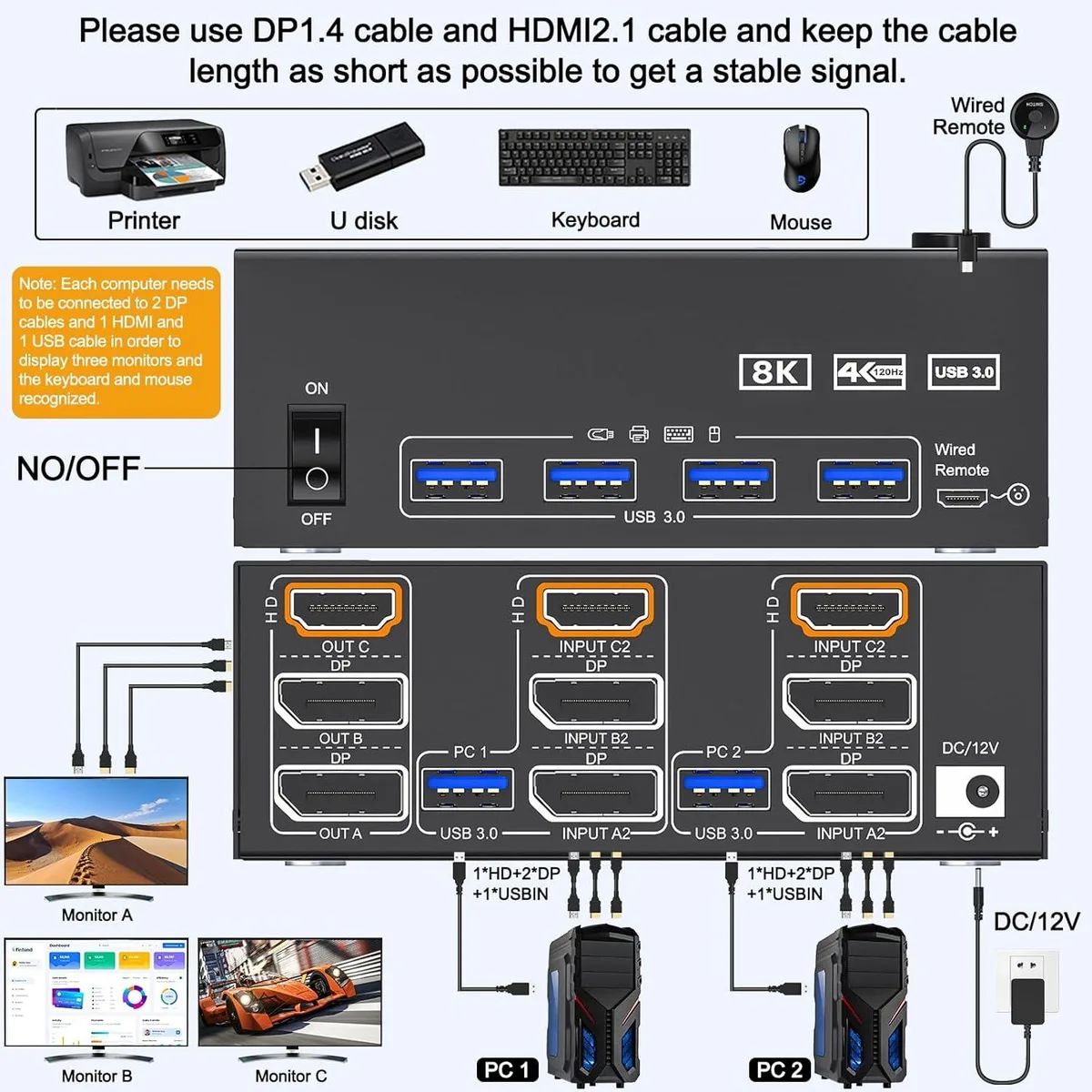

Which cables and ports must my two computers already have to connect all three displays?
Each computer needs one HDMI 2.1 output and two DisplayPort 1.4 outputs to drive the three monitor ports at full resolution.
Will my older 4K 60 Hz monitors work correctly through the DisplayPort and HDMI ports on this switch?
Yes, both DisplayPort and HDMI interfaces are backward compatible, so 4K 60 Hz displays will operate normally.
