IHDAPP

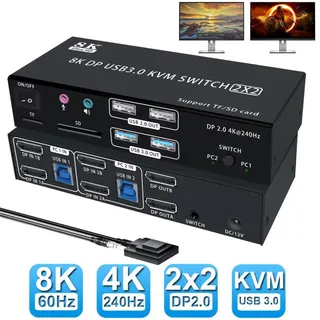

IHDAPP 8K@60Hz DP2.0 KVM Switch 2x2 USB 3.0
A dual-monitor DisplayPort 2.0 KVM switch lets two computers share one keyboard, mouse and two displays at up to 8K 60 Hz with USB 3.0 peripherals
- TypeDisplayport KVM Switch 2 Monitors 2 Computers
- PC ConnectorsDP2.0, USB 3.0, Audio
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionSupport max resolution up to 8K@60Hz RGB/YUV 4:4:4,4K@240Hz,
- PC SelectionPush Buttons and Wired Remote
- Share two computers with one keyboard and mouse using dual DP monitors
- Switch instantly via front button or wired remote for uninterrupted workflow
- Supports 8K at 60 Hz plus 4K at 240 Hz for sharp high-refresh visuals
- Four USB 3.0 ports plus SD and TF readers connect peripherals and storage
- Includes audio and microphone jacks for complete desk consolidation
Dual-PC DP 2.0 KVM Switch

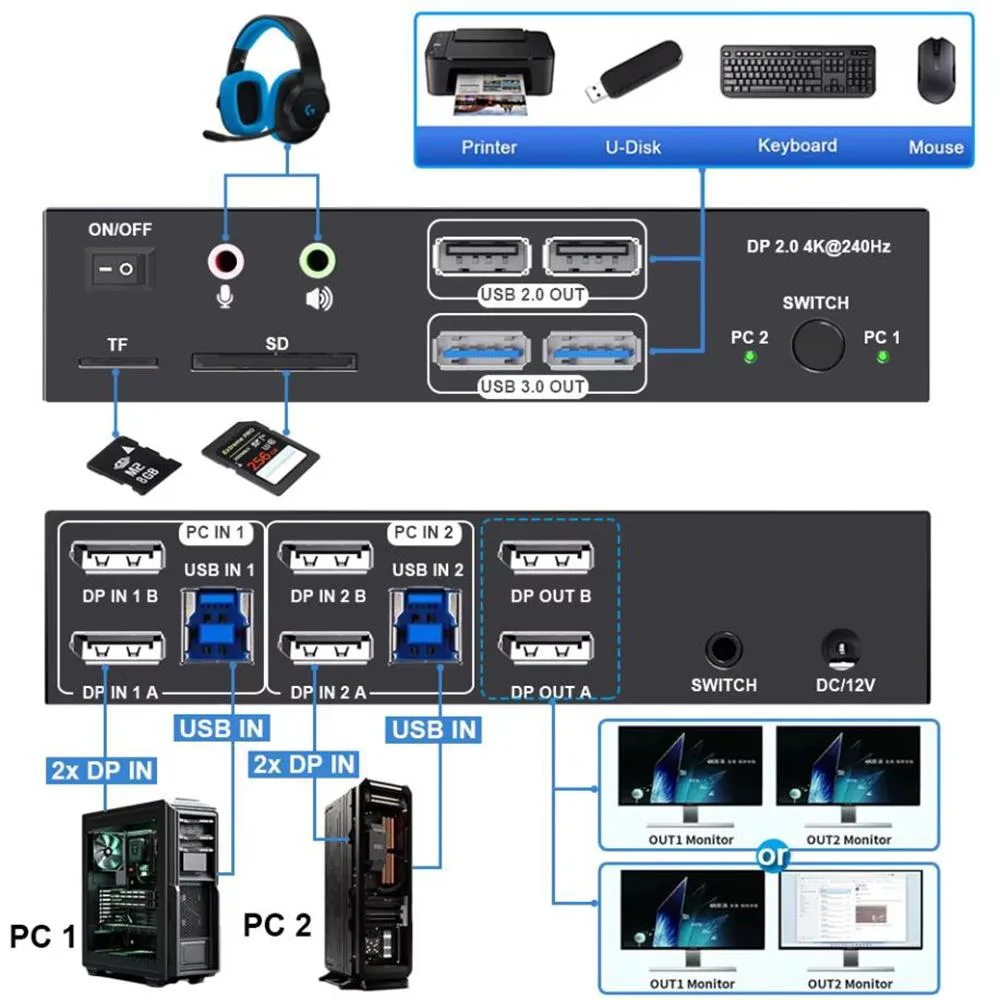

This DisplayPort 2.0 KVM switch connects two computers to two monitors, a shared keyboard, mouse and four USB 3.0 peripherals. It supports resolutions up to 8K at 60 Hz RGB 4:4:4 plus high-refresh rates such as 4K at 240 Hz and 2K at 360 Hz. A wired remote and front-panel button provide instant source switching.
For dual-monitor power users.
The unit suits professionals and gamers who run two DisplayPort monitors from two PCs, laptops or consoles and need simultaneous audio, microphone and SD/TF card access. It does not fit workflows that rely on HDMI, USB-C video or a single display, nor setups that require more than two computer ports.
8K 60 Hz headroom with adaptive scaling
The switch comfortably handles 8K at 60 Hz, 4K at 240 Hz and 1080p at 360 Hz without compression, while adaptive scaling drops to lower resolutions such as 1080p at 165 Hz when displays demand it. Bandwidth runs out beyond 8K 60 Hz, so higher resolutions or multi-stream configurations are not supported.
Highlights
- Share two computers with one keyboard and mouse using dual DP monitors
- Switch instantly via front button or wired remote for uninterrupted workflow
- Supports 8K at 60 Hz plus 4K at 240 Hz for sharp high-refresh visuals
- Four USB 3.0 ports plus SD and TF readers connect peripherals and storage
- Includes audio and microphone jacks for complete desk consolidation
Specifications
| Type | Displayport KVM Switch 2 Monitors 2 Computers |
|---|---|
| PC Connectors | DP2.0, USB 3.0, Audio |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | Support max resolution up to 8K@60Hz RGB/YUV 4:4:4,4K@240Hz,2K@360Hz,1080@360Hz, also support 1080P@165/240Hz or lower resolution, makes image display more exquisite and realistic. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | with Audio Microphone Output |
| Power Features | DC power adapter |
| USB Features | with USB support |

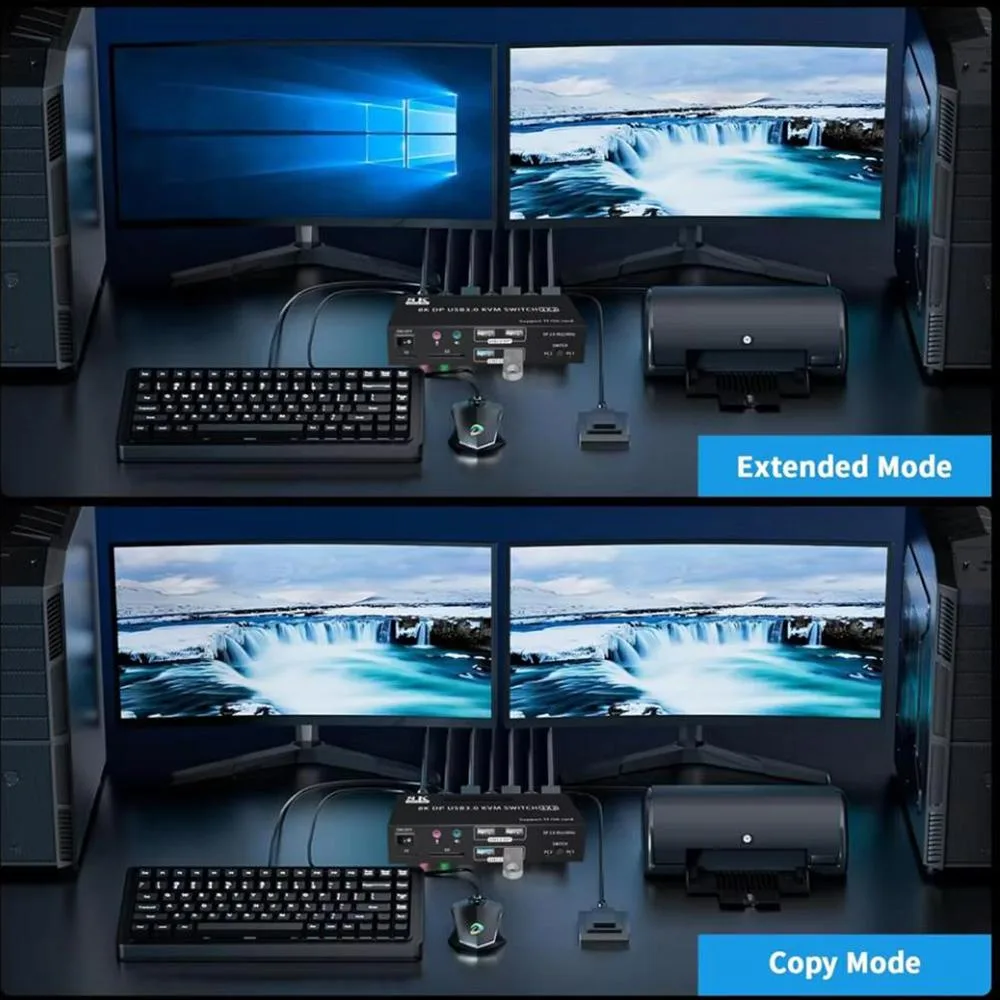

| Application | 8K 60Hz DP 2.0 USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and two DP Monitor to control 2 computers, laptops, game consoles with extended mode and mirror mode. It is designed for multitask with two computers at your necessary, increasing productivity in the office or at home ; You can switch between 2 computers using a manual switch located on the top of the KVM unit. |
| Features | - Support Displayport 2.0 - Resolution: Support 1080P/1080@144/240/360Hz, 2K@120/165/360Hz, 4K@120/144/240Hz,8K@60Hz RGB 4:4:4 resolution, adaptive screen resolution - Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems - Supports high current hard disk devices - Two Switching Method: |
| Dimensions | About 140x60x30mm |
| Weight | 300g |
| Package Contents | 1 x DP KVM Switch 2x2 2 x USB 3.0 data cable 1 x DC power adapter 1 x External switch kit 1 x User Manual |
Questions about this item
What cables must I already have to connect both computers to the KVM?
Each computer needs a DisplayPort 2.0 cable and a USB 3.0 cable for video and peripheral data; the package includes two USB 3.0 data cables.
Will my existing 4K 144 Hz monitors work with this switch?
Yes, the switch supports 4K at 120, 144 and 240 Hz, so 4K 144 Hz displays operate at their native refresh rate.
How do I confirm the switch is passing an 8K 60 Hz signal after setup?
Check the front-panel LED for the active port and verify the OS display settings show 8K at 60 Hz RGB 4:4:4 on each monitor.
