IHDAPP 8K 60Hz DP 1.4 KVM Switch 2 Monitors 2 Computers 3 USB 3.0 Ports Wired Remote
Dual-monitor DisplayPort 1.4 KVM shares two computers across two screens at up to 8K 60 Hz with three USB 3.0 ports, audio, microphone and wired remote
- TypeDisplayPort, USB
- PC ConnectorsDP1.4, USB 3.0, 3.5mm Audio
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionup to 8K@60HZ
- PC SelectionPush Buttons and Wired Remote Controller
- Control 2 PCs with one keyboard and mouse via dual DisplayPort
- Share 3 USB 3.0 devices and independent audio between both computers
- Switch instantly using front buttons or the wired remote controller
- Drive dual monitors up to 8K at 60 Hz or 4K at 120 Hz
- Backward compatible with DisplayPort 1.2 for wider GPU support
Dual 8K 60 Hz KVM Switch

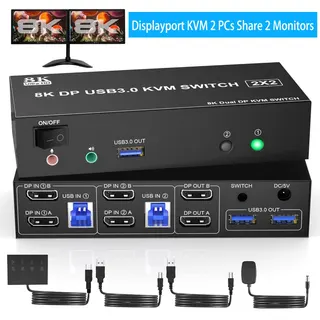

This IHDAPP DisplayPort 1.4 KVM switch lets two computers or laptops share dual monitors, three USB 3.0 peripherals, audio output and a microphone. It supports resolutions up to 8K at 60 Hz or 4K at 120 Hz with HDR 10 and Dolby Vision pass-through. The unit includes a wired remote for convenient switching.
Upgrade from single-monitor
Users moving from a single-display KVM or a DP 1.2 device gain simultaneous dual-monitor support and the 32.4 Gbps bandwidth needed for 8K 60 Hz. The jump is worth it when both source graphics cards and both displays can drive 8K 60 Hz; otherwise the link falls back to the highest common mode.
Simple desktop installation
Connect each computer with the two supplied USB 3.0 cables and DisplayPort leads, attach the 12 V power adapter, then plug monitors, keyboard, mouse and USB devices into the rear ports. Switching works via front push-buttons or the tethered remote. Common issues arise if cables exceed practical lengths or if one system lacks DP 1.4 output, limiting the shared resolution.
Highlights
- Control 2 PCs with one keyboard and mouse via dual DisplayPort
- Share 3 USB 3.0 devices and independent audio between both computers
- Switch instantly using front buttons or the wired remote controller
- Drive dual monitors up to 8K at 60 Hz or 4K at 120 Hz
- Backward compatible with DisplayPort 1.2 for wider GPU support
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | DP1.4, USB 3.0, 3.5mm Audio |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | up to 8K@60HZ |
| PC Selection | Push Buttons and Wired Remote Controller |
| Monitors Supported | Dual Monitor Displayport |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | 12V Power Adapter |
| USB Features | with USB support |
| Application | This dual monitor 8K DisplayPort KVM switch lets you control 2 computers or laptops with a single set of wired or wireless keyboard mouse, share 3 USB 3.0 devices, audio output, microphone and 2 monitors (extended mode or copy display mode). Note that extended mode can output two different screens, while mirror mode can output two identical screens. |
| Features | 1. DisplayPort KVM Switch 2 Port allows 2 computers/laptops to share keyboard, mouse, and 2 monitors (DisplayPort+ DisplayPort). 2. Dual monitor output supports up to 8K@60Hz/4K@120Hz, Ultra HD, HDR 10, Dolby Vision, 3D effect. 3. Support DP 1.4, transfer speed up to 32.4Gbps, backward compatible with DP 1.2. 4. 2 switching modes: Push button switch and wired remote control. 5. With 3 additional USB 3.0 ports and independent audio microphone output. 6. Plug and Play, compatible with Windows/Vista/XP and Mac Os, Linux and Unix |
| Dimensions | 17,5 x 13,1 x 6,2 cm |
| Weight | 540g |
| Package Contents | 1x Dual Monitor KVM Switches, 2x USB 3.0 Cables, 1x Wired Remote, 1x Power Adapter, 1x User Manual |
Questions about this item
How much desk space does the 17,5 x 13,1 x 6,2 cm unit need?
The switch measures 17,5 cm wide, 13,1 cm deep and 6,2 cm high, weighing 540 g, so allow at least that footprint plus cable clearance behind it.
Which cables must be plugged in first to avoid a blank screen on the second monitor?
Connect both DisplayPort 1.4 cables and the two USB 3.0 cables to each computer, attach the 12 V power adapter, then power on the PCs before pressing the front button or wired remote.
When should the 12 V power adapter be replaced?
Replace the adapter if the LED indicators fail to light, USB 3.0 devices disconnect randomly, or the switch cannot hold 8K@60 Hz or 4K@120 Hz output on both monitors.
