IHDAPP
IHDAPP 8K@60Hz 1 HDMI + 2 DisplayPort KVM Switch 3 PC 3 Monitors
Connects three computers to three monitors at up to 8K 60 Hz with four USB 3.0 ports and push-button or IR remote switching
- Type1 HDMI + 2 Displayport
- PC ConnectorsHDMI, Displayport, USB
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video Resolutionup to 8K@60Hz 4K@144Hz and below and is backward compatible
- PC SelectionPush Buttons
- Share one keyboard, mouse and three monitors across three PCs
- Supports up to 8K at 60 Hz and 4K at 144 Hz
- Four USB 3.0 ports deliver 5 Gbps data transfer
- Switch instantly via front buttons or infrared remote
- Compact 23.7 x 8.4 x 4.9 cm design weighs 800 g
Three-computer triple-monitor KVM switch

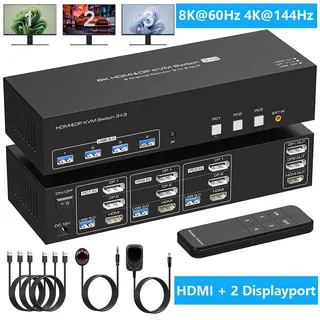

This IHDAPP KVM switch lets three computers share one keyboard, one mouse and three monitors. Each host must provide one HDMI and two DisplayPort outputs plus a USB 3.0 link to drive all three screens correctly. The unit is new and includes an IR receiver, remote control, power adapter and three USB 3.0 cables.
Sustained 48 Gbps video bandwidth
The switch handles a continuous video bandwidth of 48 Gbps across all three ports, so extended sessions at 8K 60 Hz or 4K 144 Hz do not throttle. Four USB 3.0 ports deliver up to 5 Gbps each for peripherals while remaining backward compatible with USB 2.0 and 1.1 devices. No hotkey or Bluetooth mouse switching is supported.
DP 1.4 and HDMI 2.1 interface limits
Compliance with DP 1.4 and HDMI 2.1 caps the maximum resolution at 8K 60 Hz and 4K 144 Hz respectively, with backward compatibility down to lower timings. Each computer needs the full complement of one HDMI and two DisplayPort cables, so hosts lacking triple-video outputs cannot use the three-monitor mode.
Highlights
- Share one keyboard, mouse and three monitors across three PCs
- Supports up to 8K at 60 Hz and 4K at 144 Hz
- Four USB 3.0 ports deliver 5 Gbps data transfer
- Switch instantly via front buttons or infrared remote
- Compact 23.7 x 8.4 x 4.9 cm design weighs 800 g
Specifications
| Type | 1 HDMI + 2 Displayport |
|---|---|
| PC Connectors | HDMI, Displayport, USB |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | up to 8K@60Hz 4K@144Hz and below and is backward compatible with lower resolutions (e.g. B. 4K@1200Hz, 4K60Hz etc) |
| PC Selection | Push Buttons |
| Monitors Supported | 2 Displayport + 1 HDMI - 3 Monitors |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |

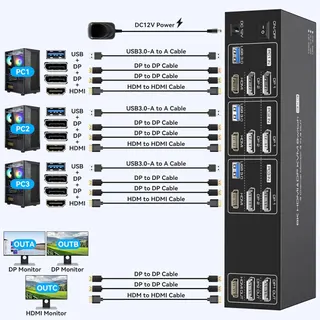

| Application | with this KVM switch 3 computer, you can connect 3 computer hosts to share 1 set of keyboard, mouse and 3 monitors. Note: (Your computer must support triple or multiple monitors to share 3 computers with 3 monitors with this KVM; each computer requires 1 x HDMI + 2 x DP + 1 x USB 3.0 cable to display 3 screens correctly) |
| Features | This KVM switch 3 monitors supports resolutions up to 8K@60Hz 4K@144Hz and below and is backward compatible with lower resolutions (e.g. B. 4K@1200Hz, 4K60Hz etc); This KVM switch HDMI DisplayPort 3 monitor has four USB 3.0 ports, supports a video bandwidth of up to 48 GBPS, data transfer rates of up to 5 Gbps and is backwards compatible with USB 2.0 and USB 1.1 devices. Supports various operating systems such as Windows/Vista/XP and Mac OS, Linux and Unix, Plug & Play. (Bluetooth mouse and hotkey switching are not supported) |
| Dimensions | 23.7 x 8.4 x 4.9 cm |
| Weight | 800g |
| Package Contents | 1 x Triple Monitor KVM Switches, 3 x USB 3.0 Cable, 1 x IR Extend, 1 x Remote Controller, 1 x Power Adapter, 1 x User Manual |
Questions about this item
Does the IHDAPP KVM switch run hot or draw much power when left on all day with three 8K60Hz monitors active?
The unit requires the included DC12V adapter and draws power only for signal switching and the four USB 3.0 ports; it has no fan, so heat output stays low during continuous operation.
What cables and ports must each of my three computers already have to use all three monitors on this switch?
Every computer needs one HDMI 2.1 output, two DisplayPort 1.4 outputs and one USB 3.0 port; the box supplies three USB 3.0 cables but no video cables.
Will my older 4K60Hz DisplayPort 1.2 monitors work correctly through the two DP inputs on this KVM?
Yes, the switch is backward compatible with lower resolutions such as 4K60Hz, so DP 1.2 sources display normally on the two DisplayPort monitor ports.
