IHDAPP
IHDAPP 8K@30Hz DisplayPort KVM Switch 4 in 2 Out
A DisplayPort KVM switch lets four computers share two monitors, a keyboard, a mouse and four USB 3.0 ports at up to 8K@30Hz or 4K@144Hz
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB 3.0
- Computer Connections4 Ports
- Monitor Connections2 Ports
- Video Resolution8K@30Hz and 4k@1440Hz
- PC SelectionPush Buttons
- Control four computers with one keyboard and mouse set
- Drive two DisplayPort monitors at 8K@30Hz or 4K@144Hz
- Switch instantly via front buttons or the wired remote
- Share four USB 3.0 peripherals across all systems
- Operates without extra power supply for a clean desk
4-Port Dual-Monitor KVM Switch
This DisplayPort KVM switch lets four computers share two monitors, one keyboard, one mouse and four USB 3.0 peripherals. It is aimed at users who need to control multiple workstations from a single desk without swapping cables. The unit operates without an extra power brick, drawing what it needs from the connected systems.
DP 1.4 8K@30Hz Video Support

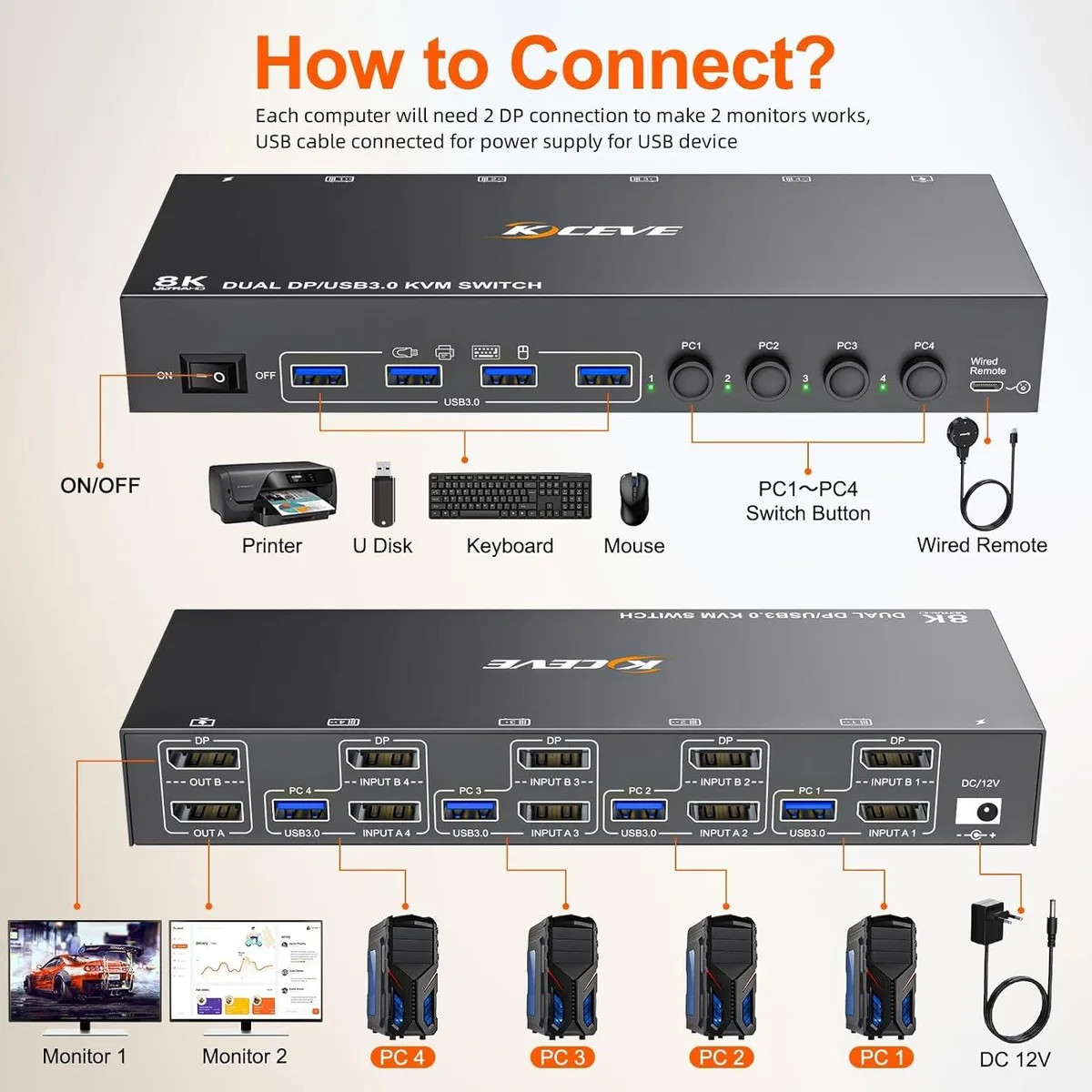

The decisive specification is DisplayPort 1.4 compliance with 8K resolution at 30 Hz and 4K at 144 Hz on both outputs. Each computer must provide two DisplayPort connections, so buyers should verify that every source has two DP ports before purchasing. The switch also handles mixed input resolutions such as 4K@60 Hz, 4K@30 Hz or 1440p@60 Hz.
Passive Cooling Under Continuous Use
Because the device requires no external power supply and has no moving parts, it runs silently and maintains stable temperatures during extended switching sessions. The included DC 12 V adapter simply ensures reliable operation when high-draw USB devices are attached, so thermal performance stays consistent whether you switch once an hour or every few minutes.
Highlights
- Control four computers with one keyboard and mouse set
- Drive two DisplayPort monitors at 8K@30Hz or 4K@144Hz
- Switch instantly via front buttons or the wired remote
- Share four USB 3.0 peripherals across all systems
- Operates without extra power supply for a clean desk
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | Displayport, USB 3.0 |
| Computer Connections | 4 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 8K@30Hz and 4k@1440Hz |
| PC Selection | Push Buttons |
| Monitors Supported | Displayport Monitor |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This KVM switch dual monitor help you to control 4 computers or laptops by only one set of wired or wireless keyboard mouse,share 2 monitors and 4 USB 3.0 devices |
| Features | 8K@30Hz/4K@144Hz Dual Monitor KVM Switch allows 4 computers/laptops to share one set of keyboard, mouse, and 2 monitors (2 DisplayPort) Support DP 1.4 standards and downward compatibility. 2 monitors output support 8K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）; 2 Switching modes: Button switch and wired remote. KVM switch equipped with 4 USB 3.0 ports for USB devices Equipped with DC12V power supply, ensuring stable operation even when high-power devices are connected. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Rasp |
| Dimensions | 7.87 x 5.91 x 1.97 inches |
| Weight | 1.1 Pounds |
| Package Contents | 1x kvm switch; 4x USB 3.0 cables; 1x Wired control; 1x power adapter |
Questions about this item
What does the 8K@30Hz rating mean when I connect two monitors to four computers?
The switch passes 8K at 30 Hz or 4K at 144 Hz per DisplayPort output; each computer needs two DP cables and your graphics card decides whether extended, mirrored or spliced modes are available.
Which DisplayPort standard does the switch implement and what bandwidth limit does that impose?
It follows DP 1.4, so the link caps at the 1.4 maximum; actual resolution and refresh depend on the host GPU and cable quality.
How much desk space and power does the unit need to fit and run?
The box measures 7.87 by 5.91 by 1.97 inches, weighs 1.1 pounds, and ships with a 12 V DC adapter — no extra power supply is required beyond the included brick.
