IHDAPP 8401A 8K HDMI KVM Switch 4 Ports USB 3.0
Connect four HDMI computers to one monitor at up to 8K@60Hz or 4K@144Hz with four USB 3.0 ports and push-button or wired remote switching
- TypeHDMI KVM Switch 4 Computer 1 Monitor
- PC ConnectorsHDMI
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video ResolutionThe HDMI 2.1 KVM switch 1 Monitor 4 Computer supports resolu
- PC SelectionPush Buttons and Wired Controller
- Control four computers with one keyboard, mouse and monitor
- Switch instantly via front button or 1.5 m wired remote
- 8K at 60 Hz and 4K at 144 Hz for sharp visuals
- Four USB 3.0 ports deliver 5 Gbps data throughput
- Works with Windows, macOS, Linux, consoles and more
Four-computer HDMI KVM switch

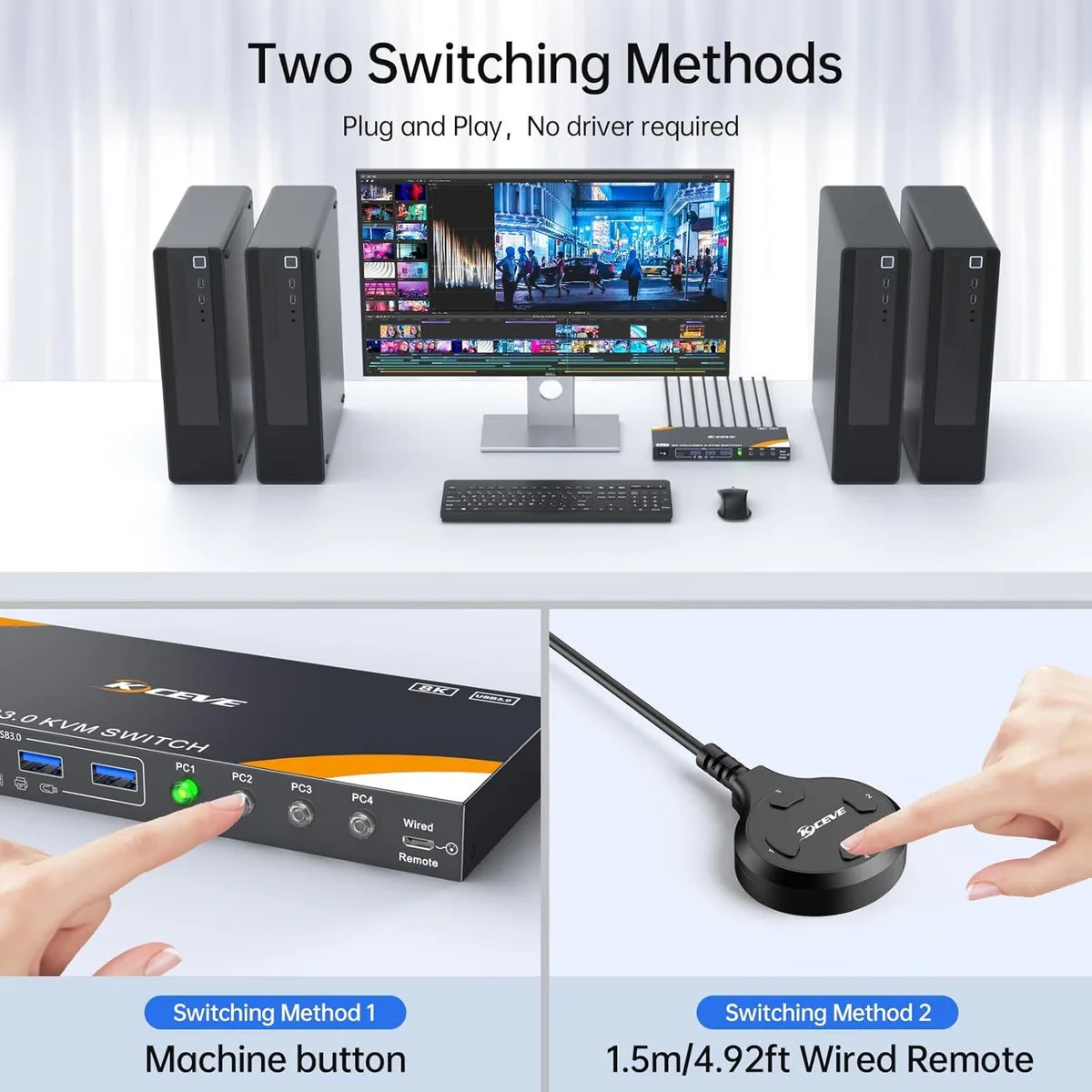

The IHDAPP 8401A lets a single HDMI monitor, keyboard and mouse control up to four computers or laptops. It accepts four HDMI inputs and one HDMI output, with front-panel push buttons and a 1.5-metre wired remote for source selection. LED indicators show the active port at a glance.
Bundled cables and power adapter

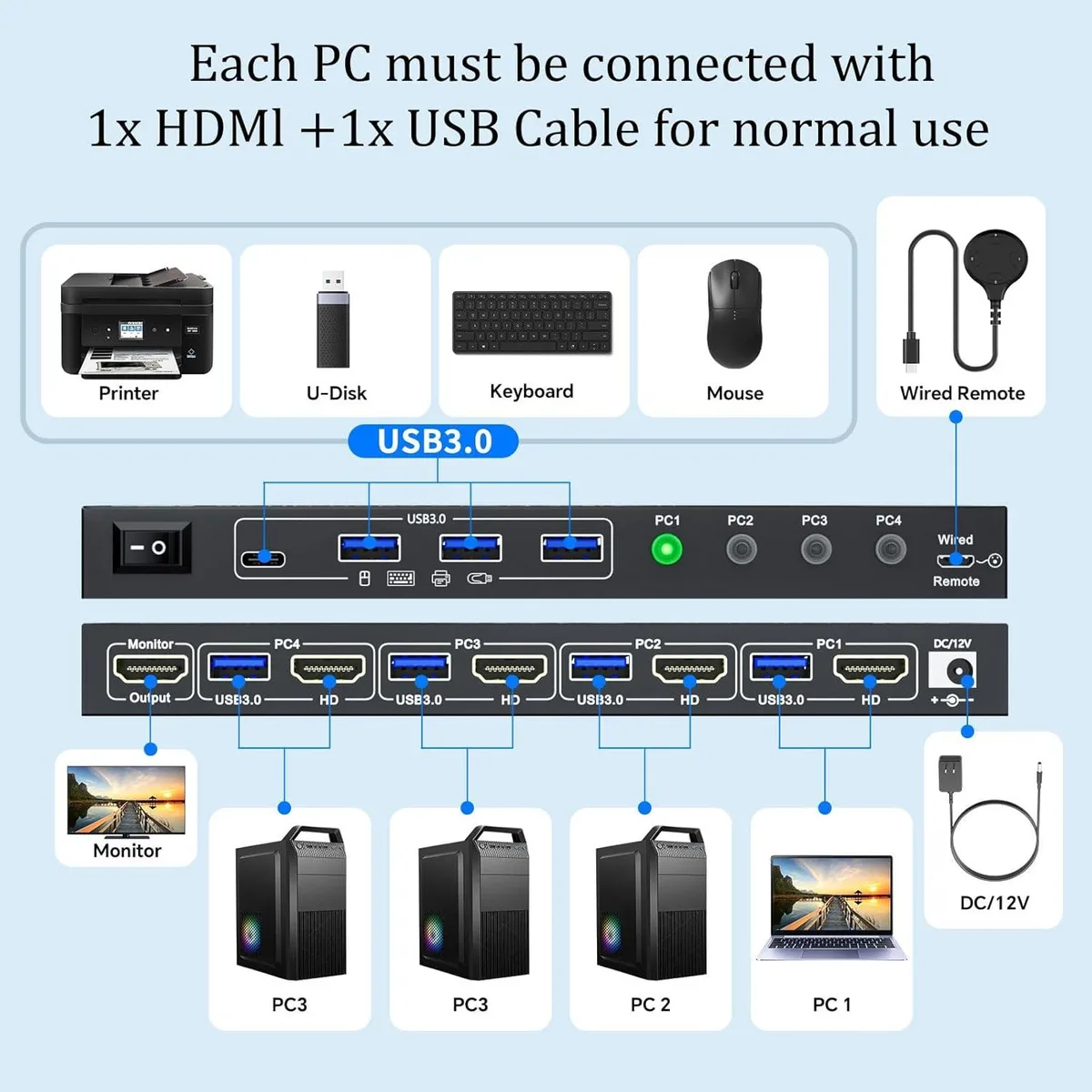

Four USB 3.0 cables and a DC 12V power adapter are included so every connected system receives both video and USB data links immediately. The switch provides four downstream USB 3.0 ports running at 5Gbps for peripherals such as printers or cameras, while remaining compatible with USB 2.0 and 1.1 devices.
HDMI 2.1 bandwidth and switching delay
The unit passes 8K at 60Hz, 4K at 144Hz, 120Hz and 60Hz with YUV 4:4:4 colour, plus 1080p at 165Hz, and is backward compatible with lower resolutions. Using USB-C-to-HDMI or DisplayPort-to-HDMI adapters will reduce the achievable resolution, and each source change incurs an approximate 8-second delay.
Highlights
- Control four computers with one keyboard, mouse and monitor
- Switch instantly via front button or 1.5 m wired remote
- 8K at 60 Hz and 4K at 144 Hz for sharp visuals
- Four USB 3.0 ports deliver 5 Gbps data throughput
- Works with Windows, macOS, Linux, consoles and more
Specifications
| Model | 8401A |
|---|---|
| Type | HDMI KVM Switch 4 Computer 1 Monitor |
| PC Connectors | HDMI |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | The HDMI 2.1 KVM switch 1 Monitor 4 Computer supports resolutions including 8K@60Hz, 4K@144Hz, 4K@120Hz, and 4K@60Hz with YUV 4:4:4 color, and is fully backward compatible. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI |
| LED Indicators | LED indicators clearly show which computer is currently active. |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | Equipped with four USB 3.0 ports offering 5Gbps transfer speeds, this KVM Switch 4 port handles data swiftly. The HDMI USB Switch 4 computer seamlessly works with USB 2.0 / 1.1 devices, offering automatic recognition for your mouse, keyboard, printer, U disk, hard drive, scanner, and camera. For optimal performance, please connect using a USB 3.0 cable |
| Application | The USB 3.0 KVM Switch 4 Computer enables you to connect 4 HDMI desktops or laptops to a single HDMI monitor. With this KVM switch HDMI 4 port, organize your workspace efficiently using just one keyboard and mouse set to control all 4 computers. |
| Features | Excellent Compatibility |
| Dimensions | 7 x 3 x 1 inches |
| Weight | 270g |
| Package Contents | 1x 8K KVM Switch HDMI unit, 1x 1.5m Wired Remote, 1x DC 12V Power Adapter, 4x USB 3.0 Cables, and 1x User Manual. |
Questions about this item
Will the USB 3.0 ports or HDMI 2.1 circuitry need any periodic replacement?
No user-replaceable parts are inside the 8401A; the DC 12V adapter and the four supplied USB 3.0 cables are the only items that may wear out over time.
At 8K 60 Hz or 4K 144 Hz, which limit appears first during long sessions?
The 8-second switching delay is the first bottleneck you will notice when changing sources repeatedly; video bandwidth itself is rated for 8K@60Hz and 4K@144Hz continuously.
How much heat or fan noise does the 270 g unit produce when running all day?
The metal case runs warm but stays silent because there is no fan; the external 12 V power brick handles the conversion heat away from the desk.
