IHDAPP
IHDAPP 4K@60Hz HDMI KVM Switch 2 Monitors 4 Computers
Control four computers with one keyboard, mouse and dual monitors at up to 4K@60Hz, plus three extra USB 3.0 ports and audio
- TypeHDMI, USB
- PC ConnectorsHDMI2.0, USB 3.0, 3.5mm Audio
- Computer Connections4 Ports
- Monitor Connections2 Ports
- Video ResolutionOur KVM supporting high resolution max up to 4K@60Hz, and al
- PC SelectionPush Buttons and Desktop Controller
- Control four computers with one keyboard and mouse
- Dual 4K 60 Hz monitors for extended or mirrored views
- Three extra USB 3.0 ports plus audio and microphone
- Push-button or wired remote switching with LED status
- EDID emulation keeps display settings stable across switches

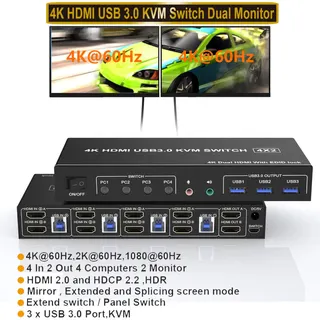

Four-PC Dual-Monitor KVM Switch

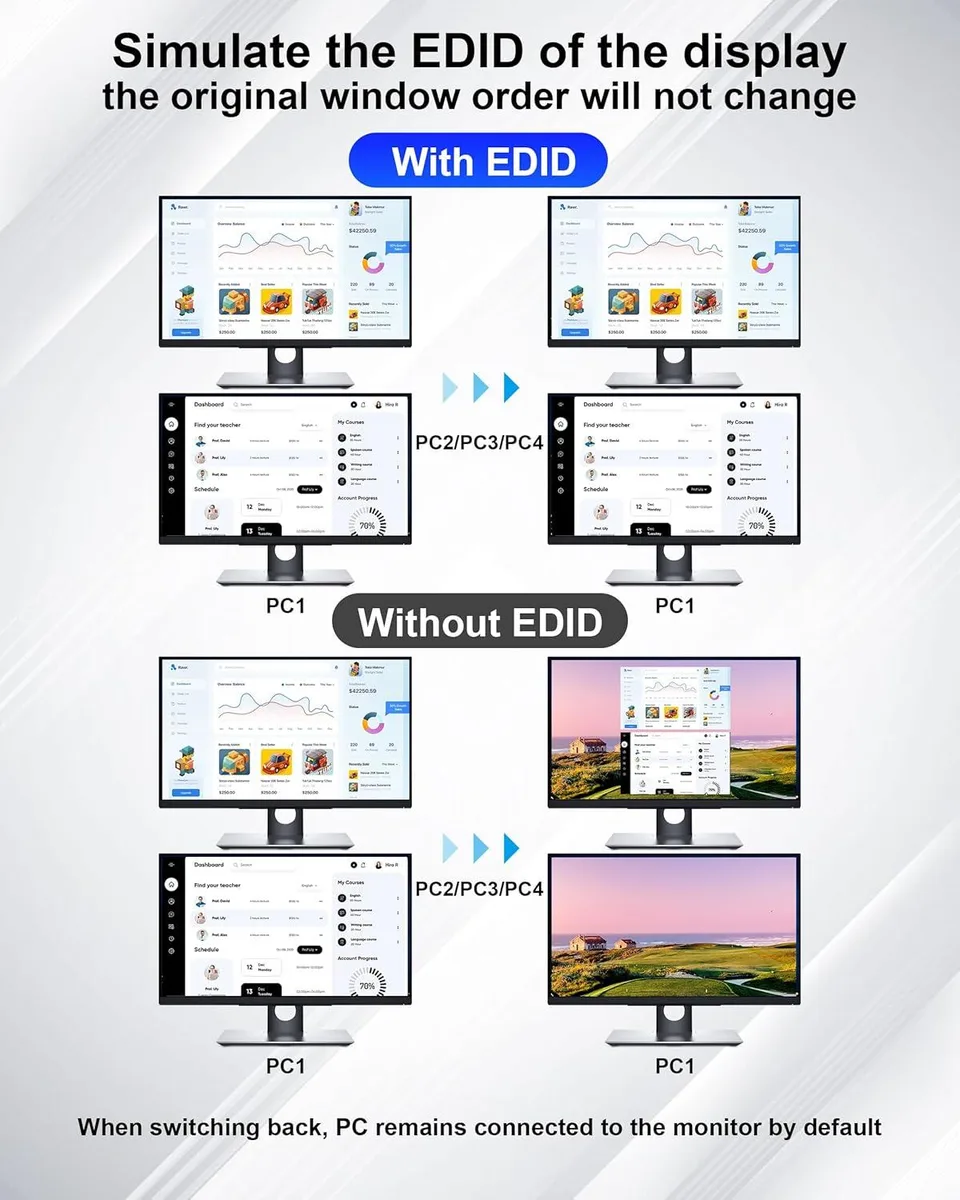

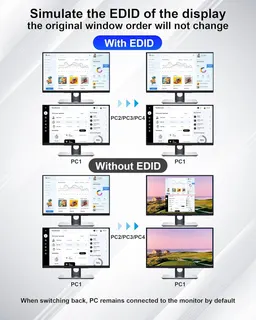

This HDMI 2.0 KVM switch lets four computers share one keyboard, one mouse and two monitors. It is aimed at professionals who run multiple workstations or laptops and want a single, tidy desktop without unplugging cables. The unit handles 4K at 60 Hz with YUV 4:4:4 colour, HDCP 1.4 and HDR 2.2, and includes EDID emulation so each PC keeps its display settings when you switch away. Compatible with Windows 11, 10, 7 and Linux systems.

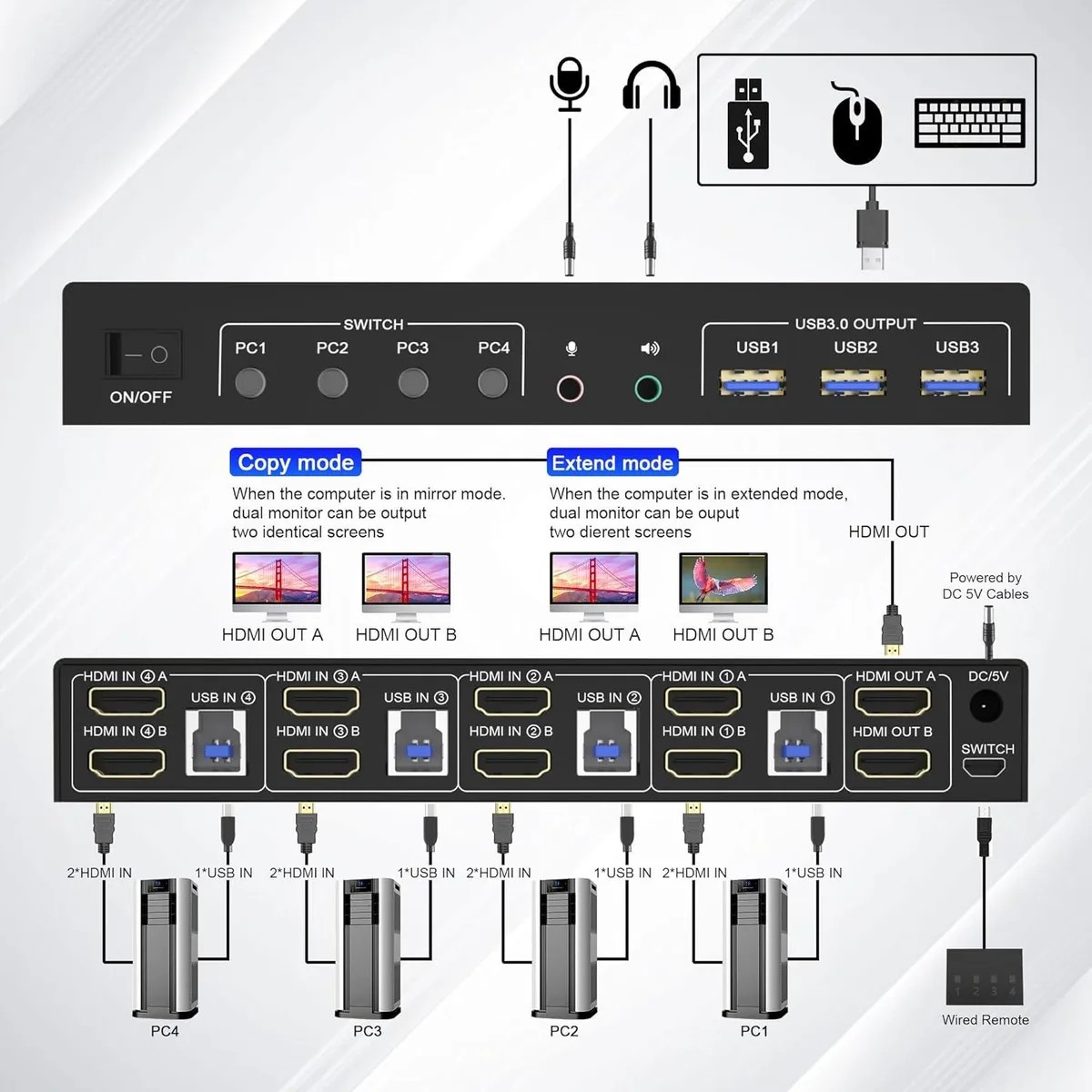

Rear-Panel Connectivity and Switching
All four HDMI inputs, four USB 3.0 upstream ports, three extra USB 3.0 downstream ports, 3.5 mm audio and microphone jacks sit on the back, keeping the desk surface clear. You change the active computer with front push buttons or the supplied wired desktop controller; LED indicators show which port is live. An external power adapter is included so the switch and its USB hub remain stable under load. The metal chassis measures 23.39 by 17.09 by 5.69 cm and weighs 880 g.
Cables, Controller and Setup
The box contains four combined USB 3.0 cables that carry both video and peripheral data, the wired remote, the power adapter and a user manual. No driver installation is required; the switch works immediately on supported operating systems. The three additional USB 3.0 ports let you attach drives, webcams or other peripherals that all four computers can access in turn. Buyers whose systems lack dual-video outputs or who need more than four computer ports will need a different solution.
Highlights
- Control four computers with one keyboard and mouse
- Dual 4K 60 Hz monitors for extended or mirrored views
- Three extra USB 3.0 ports plus audio and microphone
- Push-button or wired remote switching with LED status
- EDID emulation keeps display settings stable across switches
Specifications
| Type | HDMI, USB |
|---|---|
| PC Connectors | HDMI2.0, USB 3.0, 3.5mm Audio |
| Computer Connections | 4 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | Our KVM supporting high resolution max up to 4K@60Hz, and also supports 3D and 1080P@60Hz or other lower resolution (Downward Compatible). |
| PC Selection | Push Buttons and Desktop Controller |
| Monitors Supported | Dual Monitor HDMI |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | with Power Adapter |
| USB Features | with USB support |
| Application | This dual monitor KVM Switch is for you to control them using one set of keyboard, mouse and single or dual monitors to make your work space tidy and efficient, also a premium choice for working from home. Only when your computer supports dual display or multi display, you can use this KVM to achieve 4 PC to share 2 monitors. (Extended, mirrored or spliced display modes depend on your computer's graphics card). |
| Features | 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals; With extra 3 USB 3.0 and Audio Microphone output; Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2, with EDID Emulator;Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）; Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems; Advanced switching modes: push button and wired remote; The ports that need to plug in HDMI/USB cables are all hidden behind |
| Dimensions | 23.39 x 17.09 x 5.69 cm |
| Weight | 880g |
| Package Contents | 1 x Dual Monitor KVM Switch, 4 x USB 3.0 Cables, 1 x Power Adapter, 1 x Wired Controller, 1 x User Manual |
Questions about this item
What maximum resolution and refresh rate does the HDMI 2.0 interface support on this KVM switch?
The HDMI 2.0 interface supports a maximum resolution of 4K at 60Hz with YUV 4:4:4 colour sampling, and is also compatible with 1080P at 60Hz and lower resolutions.
What are the physical dimensions and weight of this KVM switch for desk mounting?
The unit measures 23.39 x 17.09 x 5.69 cm and weighs 880g, with all HDMI and USB ports recessed at the rear to keep the desktop tidy.
How do you switch between the four connected computers, and what common setup step is required for dual-monitor operation?
Switch using the front push buttons or the included wired desktop controller; each computer must support dual display and be connected to both HDMI inputs for dual-monitor mode to function.
