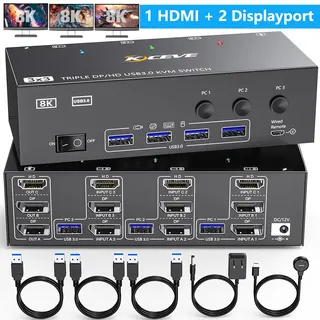

IHDAPP 4K@144Hz HDMI + 2 DP KVM Switch 3 Monitors 3 Computers
A KVM switch connecting three computers to three monitors via HDMI and dual DisplayPort while sharing four USB 3.0 peripherals
- Type1 HDMI + 2 Displayport
- PC Connectors1* HDMI, 2* Displayport, 4 USb 3.0
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video ResolutionHDMI+2 Displayport Triple Monitor KVM Switch up to 8K 30Hz &
- PC SelectionPush Buttons
- Share three computers across three monitors with extended or mirrored display modes
- Switch instantly via front-panel buttons or the included wired remote
- Four USB 3.0 ports deliver up to 5 Gbps for keyboard, mouse, printer and storage
- HDMI output supports 4K at 144 Hz and 8K at 60 Hz; each DisplayPort supports 4K at 120 Hz and 8K at 30 Hz
- Compact 6.69 × 1.97 × 1.97 in design operates without an extra power supply
Triple-Monitor KVM for Three PCs
This KVM switch connects three computers to three monitors using one HDMI and two DisplayPort outputs per system. It also provides four USB 3.0 ports for shared peripherals such as keyboards, mice, printers and flash drives. The unit operates without an extra power supply and includes a wired remote for convenient switching.
Suits Multi-System Workstations; Not for Fewer Ports
The switch is built for users who run three separate PCs or laptops and need simultaneous triple-monitor output with extended or mirrored display modes. It supports Windows, Mac, Linux and Unix without drivers. Buyers with only one or two computers, or who require audio switching, should consider a different device.
8K30 and 4K144 Video Over HDMI and DP
HDMI ports deliver up to 8K at 60 Hz and 4K at 144 Hz, while each DisplayPort handles 8K at 30 Hz and 4K at 120 Hz. Both interfaces are backward compatible with 2K at 144 Hz and 1080p. Each computer must supply one HDMI and two DisplayPort connections to use all three monitor outputs.
Highlights
- Share three computers across three monitors with extended or mirrored display modes
- Switch instantly via front-panel buttons or the included wired remote
- Four USB 3.0 ports deliver up to 5 Gbps for keyboard, mouse, printer and storage
- HDMI output supports 4K at 144 Hz and 8K at 60 Hz; each DisplayPort supports 4K at 120 Hz and 8K at 30 Hz
- Compact 6.69 × 1.97 × 1.97 in design operates without an extra power supply
Specifications
| Type | 1 HDMI + 2 Displayport |
|---|---|
| PC Connectors | 1* HDMI, 2* Displayport, 4 USb 3.0 |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | HDMI+2 Displayport Triple Monitor KVM Switch up to 8K 30Hz & 4K 120Hz, backward compatible, 2K@144Hz, 1080P. Note, HDMI resolution: 4K144Hz, 8K60Hz; DP resolution: 8k30Hz, 4K120Hz. |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI + 2 Displayport - Triple Monitor |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |

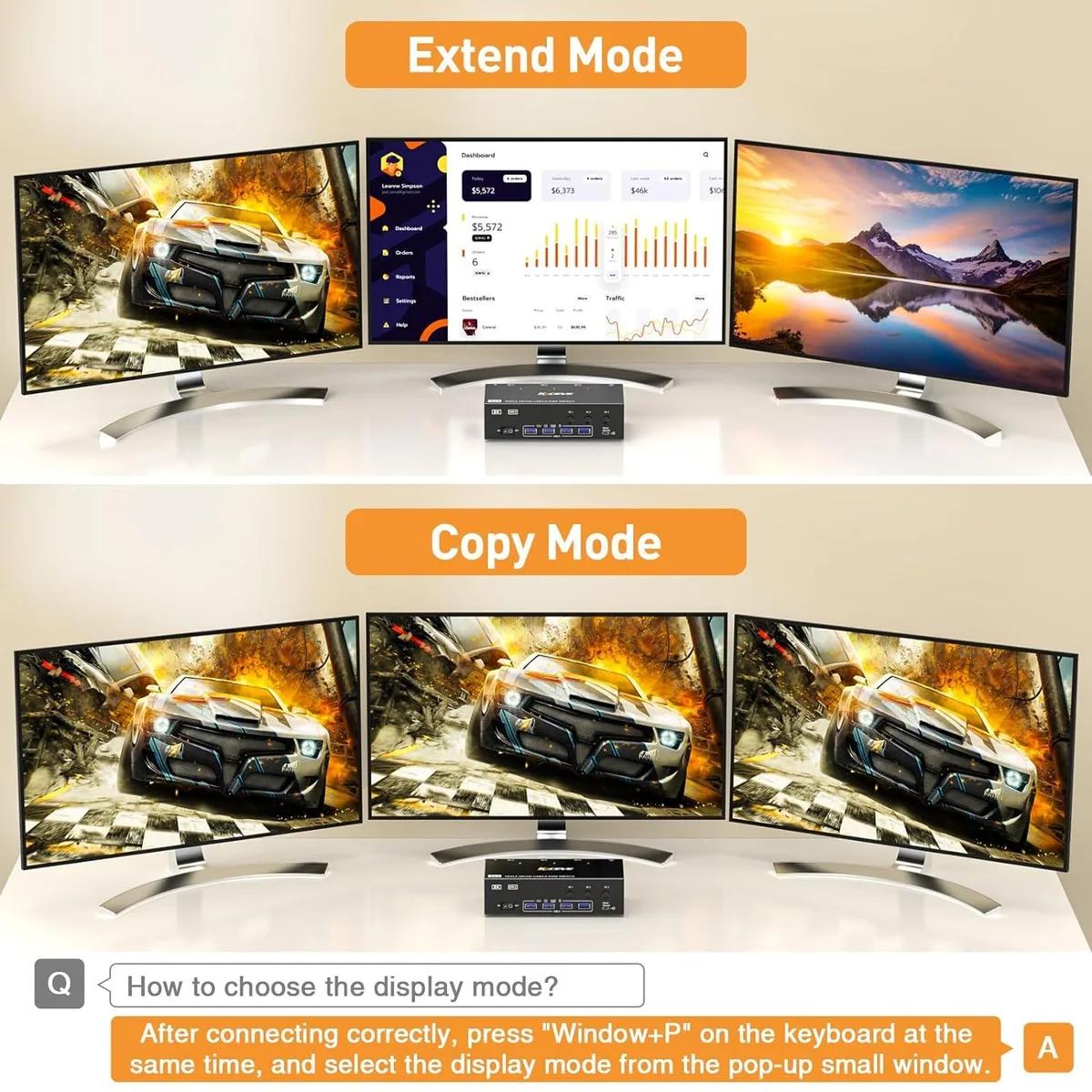

| Application | The KVM switches 3 port allows 3 computers share double monitor and 4 USB3.0 devices Printer. Support extended and copy display mode. Extended Mode: Computers host in output 3 different images on 3 monitors. Copy Mode: Computer host outputs 3 identical images on 3 monitors. |
| Features | USB3.0 Ports 5Gbps transmission; HDMI +2 Displayport multiple inputs; UHD 8K@60Hz/4K@144Hz |
| Dimensions | 6.69 x 1.97 x 1.97 inches |
| Weight | 230g |
| Package Contents | 1x Triple Monitor KVM Switch, 3x USB 3.0 Cable, 1x Power Adapter, 1x Wired remote, 1x User's manual |
Questions about this item
Does each computer need its own HDMI and two DisplayPort outputs to use the three-monitor extended mode?
Yes, the supplier specifies that every connected PC must provide one HDMI and two DisplayPort signals to drive the three monitors in extended mode.
Will the 5 Gbps USB 3.0 hub work with my older USB 2.0 keyboard and mouse without losing functionality?
The hub is backward compatible with USB 2.0, so existing keyboards, mice and other 2.0 devices will operate normally at their rated speeds.
How can I confirm the switch is routing video to the correct computer after I press the front button or the wired remote?
Three colour LEDs on the panel indicate which of the three computers is currently active, giving immediate visual confirmation.
