IHDAPP
IHDAPP 4 Port HDMI KVM Switch 8K@60Hz USB 3.0 Audio
Share one monitor, keyboard, mouse and audio across four computers with 8K 60 Hz video and USB 3.0 speed
- TypeHDMI, USB
- PC ConnectorsHDMI, USB
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video Resolution8K@60Hz
- PC SelectionPush Buttons
- Share four computers on one 8K@60Hz monitor
- EDID emulators keep display settings correct when switching
- USB 3.0 ports connect keyboards, mice and peripherals at high speed
- 5 mm audio jack lets speakers or headphones follow the active PC
- Push-button or wired remote switching within 1.5 m range
Four-Port KVM for Multi-System Workstations
This IHDAPP switch lets four HDMI-equipped computers share one monitor, a keyboard, a mouse and up to four USB 3.0 peripherals. EDID emulators on every input keep display settings intact when you change sources. The unit operates without an external power supply and includes a wired remote for switching within 1.5 metres.
Passive Operation With Audio Support
Because the switch draws power from the connected USB 3.0 links, it adds no fan noise or heat to the desk. A 3.5 mm audio jack routes sound from the active computer to speakers or headphones. LED indicators show the selected port at a glance, and the compact 7.87 x 5.91 x 1.97 inch enclosure fits easily beside a display.
Stable Switching Under Continuous Use
EDID emulation prevents resolution renegotiation during extended sessions, so the monitor retains its 8K@60Hz or 4K@120Hz timing without blanking. USB 3.0 bandwidth remains available for storage or printers while video switches instantly via the front button or wired remote. No hot-key switching is supported, so users rely on the physical controls for every change.
Highlights
- Share four computers on one 8K@60Hz monitor
- EDID emulators keep display settings correct when switching
- USB 3.0 ports connect keyboards, mice and peripherals at high speed
- 5 mm audio jack lets speakers or headphones follow the active PC
- Push-button or wired remote switching within 1.5 m range
Specifications
| Type | HDMI, USB |
|---|---|
| PC Connectors | HDMI, USB |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 8K@60Hz |
| PC Selection | Push Buttons |
| Monitors Supported | 1 HDMI Monitor |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This is a 4 in 1 out HDMI KVM USB 3.0 switch, it will be an amazing choice if you need to share your monitor, keyboard & mouse between 4 HDMI port computers. |
| Features | KVM Switch 4 PC with EDID emulators in each input port USB 3.0 KVM switch with EDID emulators in each input port to keep computers always having correct display information when switch back. For most KVM switch on the market are not support EDID locking sreen function, it’s not very convenient sometimes. Enjoy 8K HD quality display Support resolution 8k@60hz, 4K@120hz, 4K@60hz and lower resolution Please use 8K cable to achive 8k resolution. And HDMI cable shoud not be too long ( within 1.5m would be stable) With audio function This KVM switch design with audio for audio device, such |
| Dimensions | 7.87 x 5.91 x 1.97 inches |
| Weight | 500g |
| Package Contents | 1 x KVM Switch, 4 x USB 3.0 Cable, 1 x Wired Controller, 1 x Power Adapter, 1 x User Manual |
Questions about this item
How do I connect all four computers and the monitor, and what step is commonly missed?

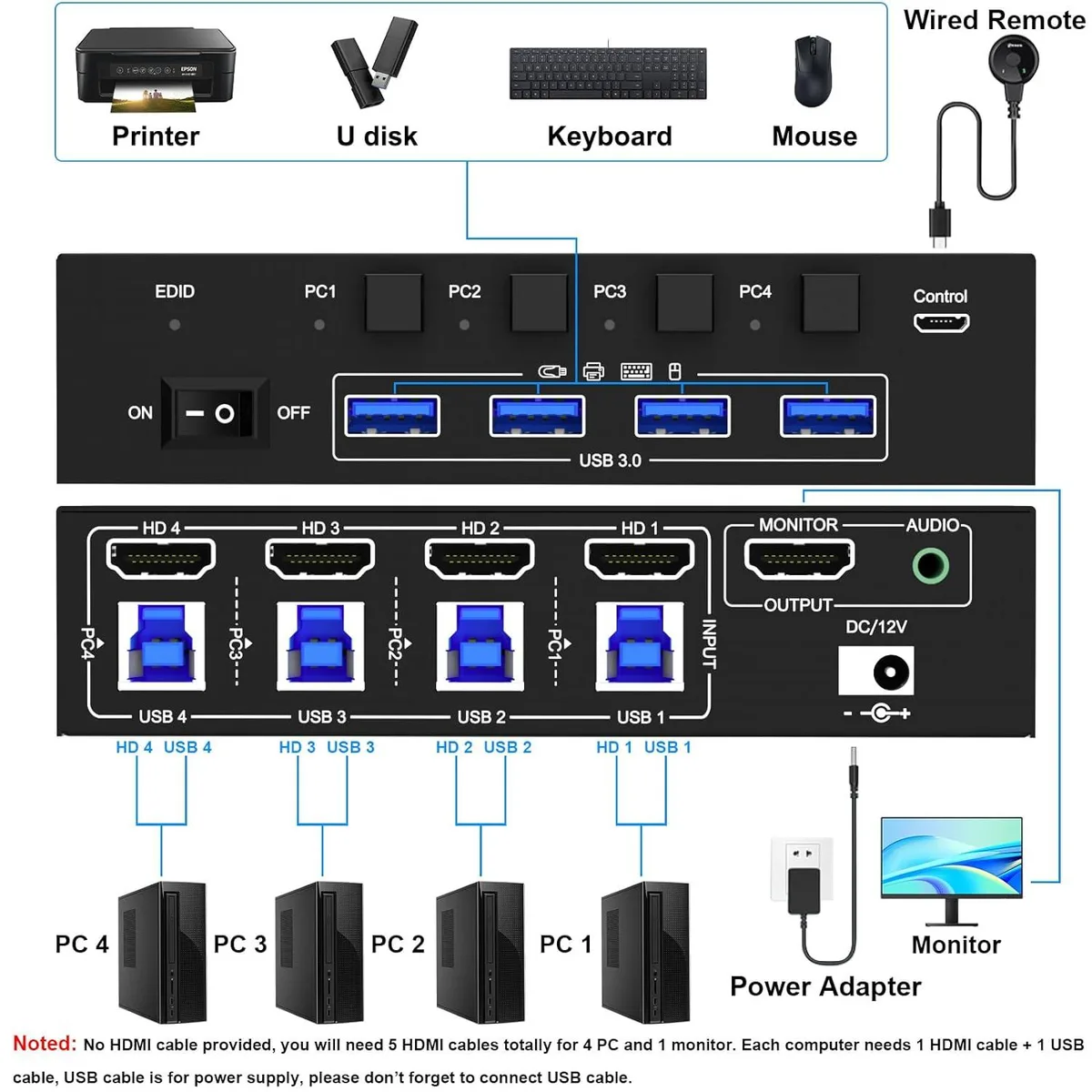

Each computer needs one HDMI cable and one USB 3.0 cable plugged into matching numbered ports (HD 1 with USB 1, HD 2 with USB 2, HD 3 with USB 3, HD 4 with USB 4), then one HDMI cable from the switch output to the monitor; the step often missed is matching the HDMI and USB port numbers for every computer.
What components will need replacement after extended use?
The supplied HDMI and USB 3.0 cables are the parts most likely to wear from repeated plugging; the switch itself has no user-serviceable components and the EDID emulators are built into each input port.
At what resolution and refresh limit does the HDMI output cap out during sustained 8K use?
The HDMI 2.1 output supports up to 8K at 60 Hz; it does not support 4K at 120 Hz or 144 Hz over HDMI, so 8K 60 Hz is the ceiling for continuous operation.
