IHDAPP 3-Port USB 3.0 KVM Switch HDMI+DP+DP 8K@60Hz
Share three computers across three monitors and four USB 3.0 devices with 8K@60Hz HDMI and dual DisplayPort outputs, switched by button or 1.5 m wired remote
- Type2 Displayport + HDMI USB 3.0
- PC ConnectorsDP1.4, HDMI2.1, USB 3.0
- Computer Connections3 Ports
- Monitor Connections3 Ports
- Video ResolutionDual Displayport port supports 8K@30Hz, 4K@144Hz, 4K@60Hz, 2
- PC SelectionPush Buttons and Wired Remote
- Control three computers with one keyboard, mouse and triple-monitor setup
- HDMI port delivers 8K at 60 Hz, each DisplayPort handles 8K at 30 Hz or 4K at 144 Hz
- Four USB 3.0 ports share peripherals at up to 5 Gbps across all connected PCs
- Switch instantly via front-panel buttons or the included 1.5 m wired remote
- Driver-free operation on Windows 7 through 11, macOS, Linux and Chrome OS
Triple-monitor KVM for three computers
This IHDAPP KVM switch lets three PCs share one keyboard, one mouse and three displays through a mix of two DisplayPort 1.4 and one HDMI 2.1 outputs. It is built for users who run multiple workstations or a PC plus console and want a single desktop setup without cable swapping.
Build integration and cabling
Each computer must provide one HDMI, two DisplayPort and one USB 3.0 connection to the switch, so three video cables and one data cable per system are required. The unit draws power from the included 12 V adapter and adds no extra load to the PCs, while four downstream USB 3.0 ports keep peripherals permanently attached.
Bundled accessories and software impact
The package supplies three USB 3.0 cables, a 1.5 m wired remote, the 12 V power adapter and a manual. No driver installation is needed on Windows 7 through 11, macOS, Linux or Chrome OS, and the remote or front-panel buttons give instant PC switching without software utilities.
Highlights
- Control three computers with one keyboard, mouse and triple-monitor setup
- HDMI port delivers 8K at 60 Hz, each DisplayPort handles 8K at 30 Hz or 4K at 144 Hz
- Four USB 3.0 ports share peripherals at up to 5 Gbps across all connected PCs
- Switch instantly via front-panel buttons or the included 1.5 m wired remote
- Driver-free operation on Windows 7 through 11, macOS, Linux and Chrome OS
Specifications
| Type | 2 Displayport + HDMI USB 3.0 |
|---|---|
| PC Connectors | DP1.4, HDMI2.1, USB 3.0 |
| Computer Connections | 3 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | Dual Displayport port supports 8K@30Hz, 4K@144Hz, 4K@60Hz, 2K@144Hz, HDMI port supports 8K@60Hz, 4K@60Hz and downward compatibility. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | DP + DP + HDMI - Triple Monitor |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |

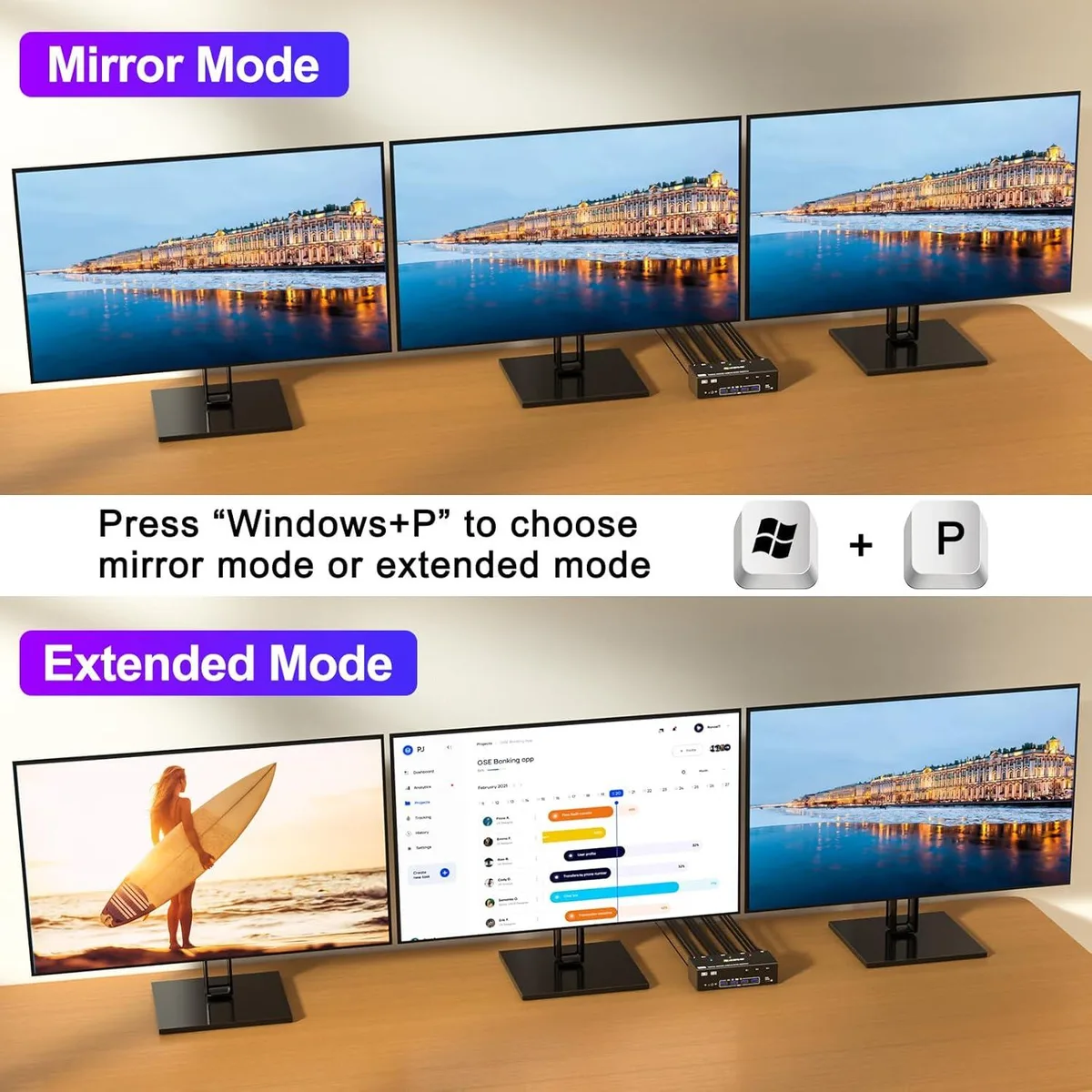

| Application | USB 3.0 KVM switch HDMI +2 displayport is very suitable for devices with DP and HDMI interfaces, realize 3 computers share a set of mouse, keyboard and monitors. Press "Windows+P" to let this USB 3.0 KVM switch 3 monitors choose to support mirror screen or extended display screen. Video output to screen with 2 DP and 1 HDMI interface. Each PC needs 1 HDMI + 2 DP + 1 USB cable to plug into the KVM switch 3 port. |
| Features | 2 Switching methods: Switched by 1.5m Wired Remote & Button Switch Plug and play. No additional driver software required LED light indicate which computer is active Compatible with Windows11/10/8/7/XP/Vista/Mac OS/Chrome/Linux etc system Support most HDMI DP interfaces input device: PC, laptop, TV Box, PS-3, PS-4, PS-5, Blu-ray player, projectors. |
| Dimensions | 16.2 x 6.6 x 4.4 cm |
| Weight | Net Weight: 380g , Package: 1000g |
| Package Contents | 1 x KVM Switch 3 Monitor HDMI+DP+DP 3 x USB 3.0 Cable 1 x DC 12V US Adapter 1 x Wired Remote 1.5m 1 x User Manual |
Questions about this item
What happens if the HDMI monitor tries to run at 8K above 60 Hz?
The HDMI port is specified for 8K at 60 Hz, so higher refresh rates are not supported on that output.
Does the unit need its own power adapter for continuous operation?
Yes, a 12 V DC adapter is included and the switch draws power from it rather than the USB ports.
Which cables must each computer already provide to use all three monitors?
Each computer needs one HDMI cable, two DisplayPort cables and one USB 3.0 cable to connect to the switch.
