IHDAPP

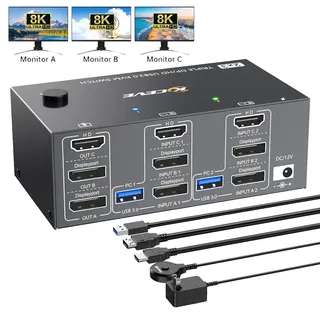

IHDAPP 203DH KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz
Shares three monitors, four USB 3.0 peripherals and one keyboard-mouse set between two computers at up to 8K@60Hz or 4K@144Hz
- TypeKVM Switch 3 Monitors 2 Computers
- PC ConnectorsHDMI + 2 Displayport
- Monitor Connections3 Ports
- Video ResolutionHDMI2.1 + DP1.4 KVM switch 3 monitors supports resolution 8K
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, Displayport, Displayport
- Control two computers with one keyboard, mouse and three monitors
- Share four USB 3.0 peripherals at 5 Gbps transfer speed
- Switch instantly via front buttons or wired remote
- Supports 8K at 60 Hz and 4K at 144 Hz resolution
- Works with Windows, Mac OS, Linux and Chrome OS driver-free
Triple-monitor KVM for two computers
The IHDAPP 203DH KVM switch lets a single keyboard, mouse and three displays control two desktops or laptops. Four USB 3.0 ports share peripherals such as printers or scanners between the connected systems. Extended and mirror display modes are supported for flexible workspace layouts. Driver-free operation works with Windows, macOS, Chrome OS and Linux.
Video bandwidth limited to HDMI 2.1 and DP 1.4

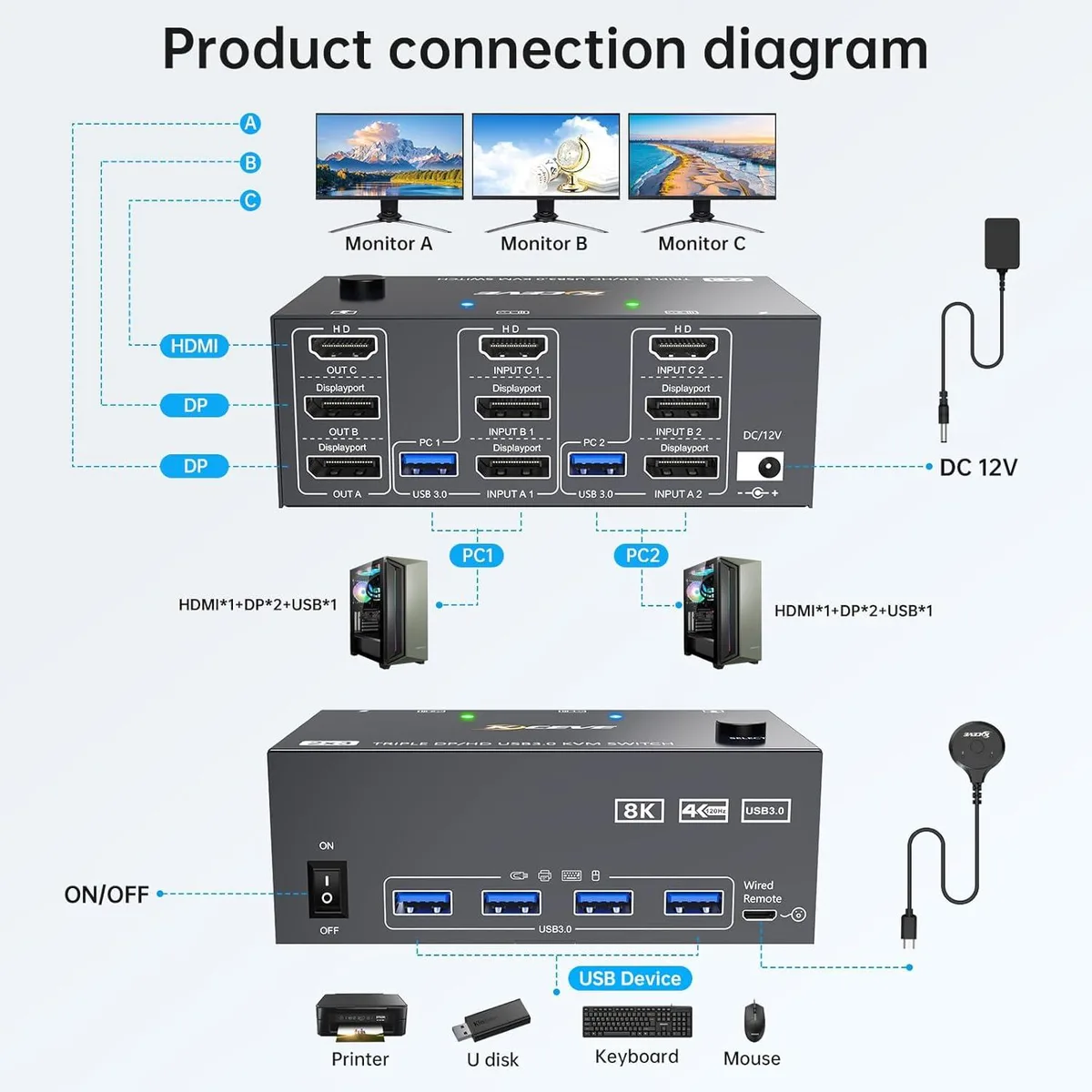

Each computer connects through one HDMI and two DisplayPort inputs, while three monitor outputs handle up to 8K at 60 Hz or 4K at 144 Hz. Achieving the highest resolutions requires certified HDMI 2.1 and DP 1.4 cables; longer cable runs may reduce the maximum supported refresh rate. The switch is backward compatible with lower resolutions and refresh rates. No higher interface versions are supported.
Metal enclosure with front-panel and remote
The unit measures 3.94 by 2.56 by 1.77 inches and weighs 700 g, with LED indicators showing the active host. A wired remote button allows switching when the switch is placed out of reach, reducing cable clutter on the desk. A 12 V power adapter is included for stable operation. Four USB 3.0 ports provide up to 5 Gbps data transfer and remain backward compatible with USB 2.0 devices.
Highlights
- Control two computers with one keyboard, mouse and three monitors
- Share four USB 3.0 peripherals at 5 Gbps transfer speed
- Switch instantly via front buttons or wired remote
- Supports 8K at 60 Hz and 4K at 144 Hz resolution
- Works with Windows, Mac OS, Linux and Chrome OS driver-free
Specifications
| Model | 203DH KVM Switches |
|---|---|
| Type | KVM Switch 3 Monitors 2 Computers |
| PC Connectors | HDMI + 2 Displayport |
| Monitor Connections | 3 Ports |
| Video Resolution | HDMI2.1 + DP1.4 KVM switch 3 monitors supports resolution 8K@60Hz/4K@144Hz and backward compatible with lower resolution,KVM switch offers ultra-highdefinition image quality,a feast for your eyes. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | Come with 12V Power Adapter |
| USB Features | KVM switch triple monitor has 4 USB ports,data transfer rate up to 5Gbp/s(???? ?????????? ???????????? ???????? ?????? ??.??),this 3 monitors KVM switch can recognize USB devices like keyboards, mice,printers,scanners,etc,and is backwards compatible with USB2.0 peripherals... |
| Application | 3 monitor KVM allows you to control 2 desktops or laptops by only one set of wired or wireless keyboard mouse share 4 USB peripherals devices and 3 monitors.lt supports extended and mirror display modes.(extended mode can output three different screens and mirror mode can output three identical screens) |
| Features | Support 8K HD resolution The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz,to achieve 8K high resolution,please use HDMI2.1 and DP1.4 cables,if the set distance allows,the length of cabels more short more better. With Four USB 3.0 ports Upgraded USB 3.0 version ensure datatransfer more faster and stable,data transfer speed of 5Gbps,it's a greatsolution to solve many USB deviced is connected issue during use. 2 switch methods This KVM Switch with 2 switch methods that are pressing the button on the panel and the wired controller(Included). LED |
| Dimensions | 3.94 x 2.56 x 1.77 inches |
| Weight | 700g |
| Package Contents | x Triple Monitor KVM Switch, ???? ??????.?? ??????????,???? ??????????.?? ??????????,???? ?????? ??.?? ??????????,1x Power Adapter,1x Wired Remote,1x User's Manual. |
Questions about this item
How do I decide between the HDMI and DisplayPort inputs for my three monitors?
Connect each monitor to one of the three output ports — one HDMI and two DisplayPort — then use the matching cables from each computer to the corresponding HDMI and DisplayPort inputs on the switch.
What does 8K at 60 Hz actually deliver on my desk?
It provides an ultra-high-definition image at 8K resolution refreshed 60 times per second, assuming your graphics cards, cables and monitors all support HDMI 2.1 or DP 1.4.
Which video standard limits the 4K 144 Hz capability?
The 4K 144 Hz refresh rate is enabled by the HDMI 2.1 and DisplayPort 1.4 interfaces built into the switch.
