IHDAPP

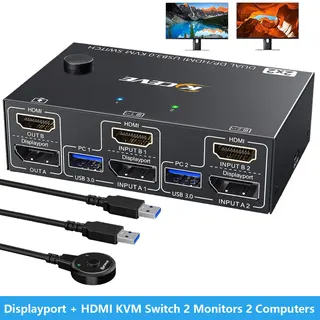

IHDAPP 202DH KVM Switch 2×2 4K@60Hz 4×USB 3.0
Dual-monitor KVM switch controls two computers from one keyboard, mouse and 4 USB 3.0 ports at up to 4K@60Hz
- TypeDisplayport + HDMI KVM Switch 2 PCs Dual Monitor
- PC ConnectorsHDMI, Displayport
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution2 computers 2 monitors KVM switch aslo support 2K@120Hz,4K@3
- PC SelectionPush Buttons
- Control two computers with one keyboard and mouse set
- Share four USB 3.0 peripherals at up to 5Gbps transfer speed
- Drive two monitors at 4K 60Hz or 2K 120Hz via HDMI and DisplayPort
- Switch instantly using front buttons or the included wired remote
- Works driver-free on Windows, Mac OS and Linux
Dual PC dual monitor control

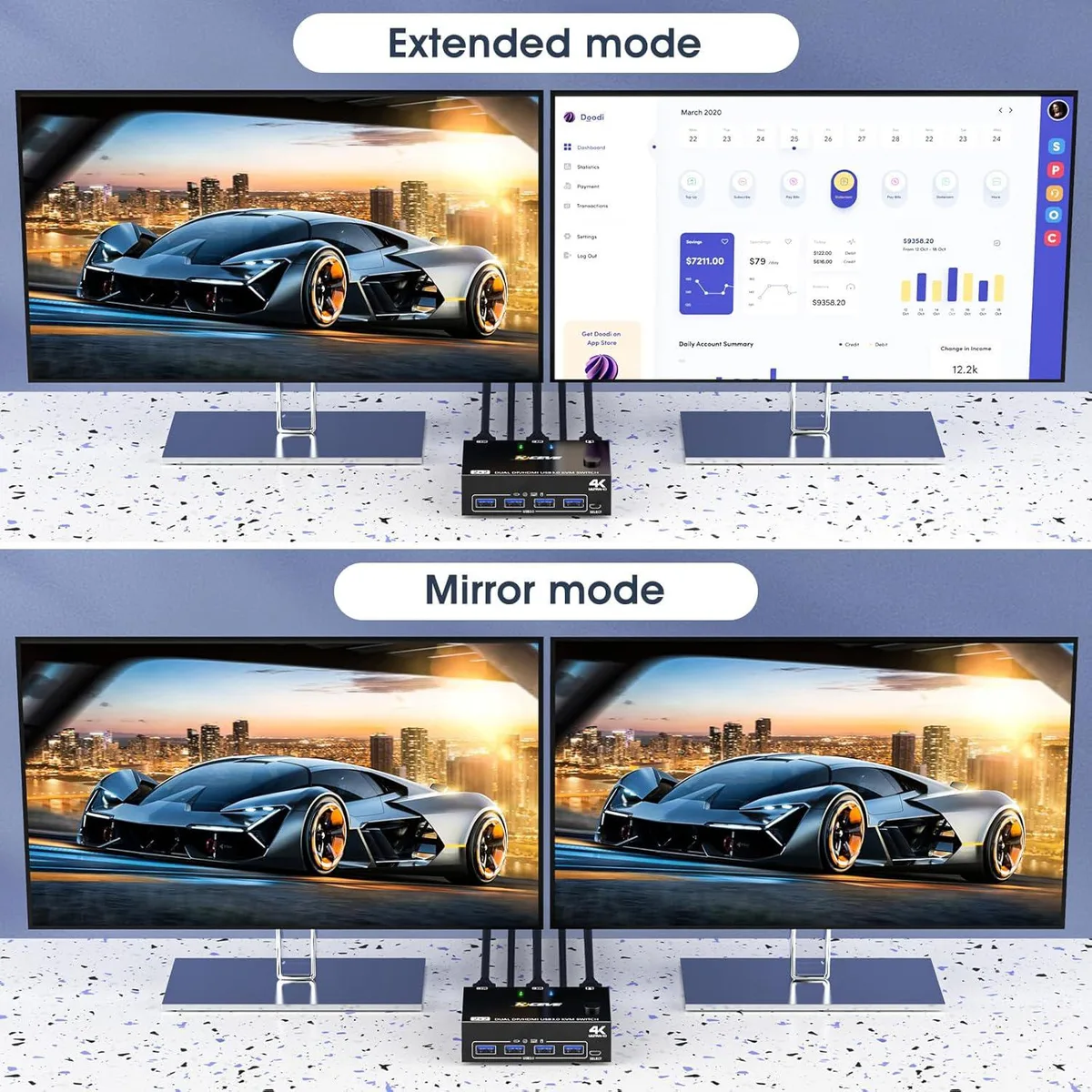

The IHDAPP 202DH KVM switch lets you operate two computers with one keyboard, one mouse and two displays. Each computer connects through one HDMI and one DisplayPort input plus a USB 3.0 link. The unit supports extended desktop or mirrored output across both screens. It is aimed at users who need to share peripherals and monitors between a pair of workstations or a laptop and a desktop.
Steady 4K 60 Hz and high refresh 2K
Video passes through at up to 4K 60 Hz over both HDMI 2.0 and DisplayPort 1.4 paths. The switch also handles 2K 120 Hz and 1440p 144 Hz signals without frame drops during prolonged sessions. Because the device draws power from the USB cables, sustained operation stays stable as long as the host ports supply adequate current. No external adapter is needed unless a high-power USB device such as a hard drive is attached.
Plug and play with cabling constraints

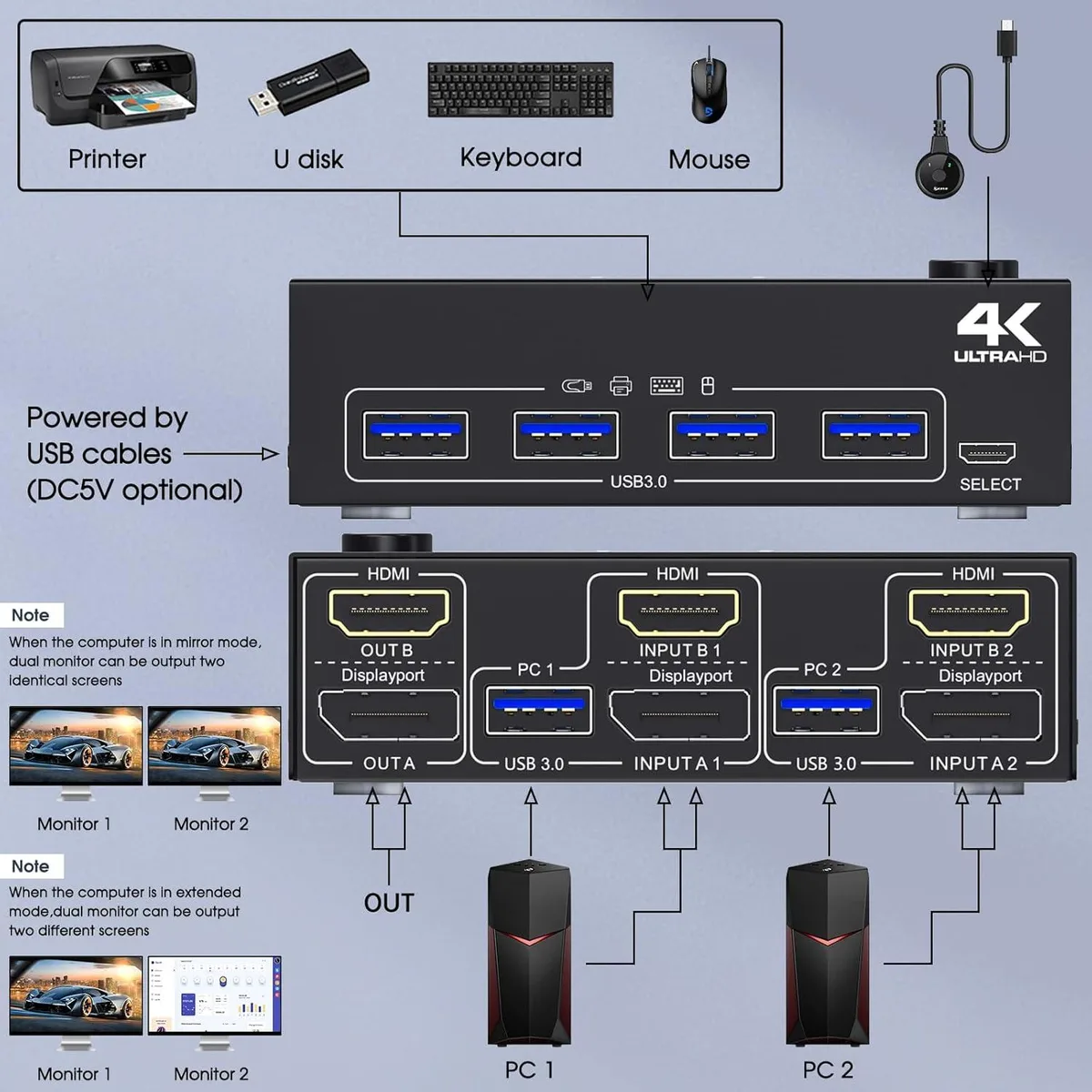

Installation is driver-free on Windows, macOS and Linux; switching is done by front button or the wired remote. Each PC requires its own HDMI, DisplayPort and USB cable trio — cables cannot be cross-connected because the USB links carry both power and data. The box includes one HDMI cable, one DisplayPort cable, two USB 3.0 cables, the remote and a power cable for optional use. Users with USB-C only laptops must add a multi-stream docking station.
Highlights
- Control two computers with one keyboard and mouse set
- Share four USB 3.0 peripherals at up to 5Gbps transfer speed
- Drive two monitors at 4K 60Hz or 2K 120Hz via HDMI and DisplayPort
- Switch instantly using front buttons or the included wired remote
- Works driver-free on Windows, Mac OS and Linux
Specifications
| Series | KVM Switch 2 Monitors 2 Computers |
|---|---|
| Model | 202DH KVM Switch |
| Type | Displayport + HDMI KVM Switch 2 PCs Dual Monitor |
| PC Connectors | HDMI, Displayport |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 2 computers 2 monitors KVM switch aslo support 2K@120Hz,4K@30Hz,1440P@60Hz or lower resolution.Note: if you need a 4K resolution , Please use HDMI2.0/DP1.4 cables and make sure your computers and monitors support 4K ! |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI + Displayport |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | Dual monitor KVM USB switch with 4 integrated USB 3.0 ports for keyboard,mouse,printer and other USB devices. supports ultra-fast USB 3.0 data transfer speeds up to 5Gbps,compatible with USB 2.0/1.1 devices. |
| Application | KVM switch 2 monitors 2 computers allow you to control 2 computers by only one set of wired or wireless keyboard mouse,share 4 USB 3.0 devices and 2 monitors(extended mode or copy display mode). |
| Features | Plug and Play |
| Dimensions | 10 x 6.5 x 3.2 centimetres |
| Package Contents | 1 x KVM Switch, 2 x USB 3.0 Cables, 1 x DP Cable, 1 x HDMI Cable, 1 x Wired Remote, 1 x Power Cable, 1 x User Manual |
Questions about this item
Does the 202DH KVM switch need an external power supply when running all day?
It draws power from the two USB 3.0 cables connected to the computers, so no separate adapter is required unless you attach a high-power device such as an HDD or SSD.
Which cables must I already have to connect each computer to the 202DH?
Each PC needs one HDMI cable, one DisplayPort cable and one USB 3.0 cable; the box includes one of each, so a second set is required for the second computer.
Can I keep using my older 1440P monitors with this KVM switch?
Yes, the switch supports 1440P at 60 Hz and lower resolutions, so existing 1440P displays will work without changes.
