IHDAPP

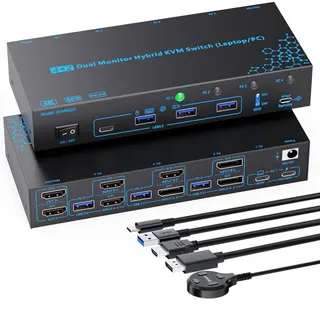

IHDAPP 2-Monitor 4-Computer 4-Port Hybrid USB-C KVM Switch
A hybrid KVM switch connects four computers — one USB-C laptop and three desktops with mixed DisplayPort and HDMI outputs — to two monitors at up to dual 4K 60 Hz, adds four USB 3.0 ports at 5 Gbps.
- Type2 Monitors 4 Computers KVM Switch Laptop and Desktop
- Computer Connections4 Ports
- Monitor Connections2 Ports
- Video ResolutionThe 2 monitors 4 port laptop and desktop KVM switch supports
- PC SelectionPush Buttons
- Monitors SupportedHDMI, Displayport
- Share four computers across two monitors
- Dual 4K 3840×2160 at 60 Hz video
- One-click switching via buttons or wired remote
- 100 W PD charging for connected laptop
- Four USB 3.0 ports at 5 Gbps data
Hybrid USB-C KVM for four systems

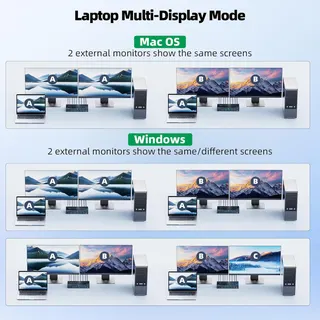

This KVM switch connects one USB-C laptop and three desktops to two monitors and four USB 3.0 peripherals. It accepts four mixed video input pairs simultaneously: USB-C, dual DisplayPort, DisplayPort plus HDMI, or dual HDMI. One-click switching shares the displays and devices across all four computers. Driver-free installation works with Windows, Mac OS, Linux and Chrome OS.
Upgrade from single-head or two-port switches
The unit replaces a basic two-port KVM when you need to manage four computers on dual screens without re-plugging cables. The jump is worth it when your workflow spans a laptop and multiple desktops and you require 4K 60 Hz on both monitors plus 5 Gbps peripheral throughput. It does not suit buyers who need more than four computer ports or more than two display outputs.
Limits of the DisplayPort 1.4
Dual 4K at 60 Hz is the maximum resolution and refresh rate the video inputs support. Higher refresh rates such as 120 Hz or 144 Hz are only available at 1440p or 1080p. The USB-C port provides up to 100 W power delivery for laptop charging while the switch is powered by the included 12 V adapter. EDID emulation can be toggled on or off via a dedicated dial to prevent window rearrangement during switching.
Highlights
- Share four computers across two monitors
- Dual 4K 3840×2160 at 60 Hz video
- One-click switching via buttons or wired remote
- 100 W PD charging for connected laptop
- Four USB 3.0 ports at 5 Gbps data
Specifications
| Series | 2 Monitors 4 Computers KVM Switch |
|---|---|
| Type | 2 Monitors 4 Computers KVM Switch Laptop and Desktop |
| Computer Connections | 4 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | The 2 monitors 4 port laptop and desktop KVM switch supports up to dual 4K(3840*2160)@60Hz, 2560*1440@60Hz/120Hz, 1920*1080@60Hz/120Hz/144Hz, whether you’re working from home, hosting a video conference, editing media, or teaching online – images stay sharp and fluid. The perfect dual monitor 4 PC KVM switch for multitaskers |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with USB support |
| Application | The hybrid 4 computers dual monitor KVM switch accepts 4 different interfaces combination at once(???????????? ??: USB-C;???? ??: DP + DP;???? ??: DP + HDMI;???? ??: HDMI + HDMI); Easily one-click switching between one laptop and three desktops to share 2 monitors and 4 USB 3.0 peripherals. |
| Features | Broad Compatibility & Flexible Switching Ways |
| Dimensions | 5.91 x 3.94 x 1.97 inches |
| Package Contents | 1 x KVM Switch, 1 x USB C Cable, 2 x USB 3.0 Cable, 1 x Power Adapter, 1 x Wired Remote, 1 x User Manual |
Questions about this item
What cables do I need to connect four computers to the two monitor outputs?
The switch provides one USB-C 3.1 Gen 2 cable, two USB 3.0 cables and a wired remote. You must supply two DisplayPort 1.4 cables and one USB 3.0 cable for PC2, one DisplayPort 1.4 cable, one HDMI 2.0 cable and one USB 3.0 cable for PC3, and two HDMI 2.0 cables plus one USB 3.0 cable for PC4.
Which step in the eight-step connect guide is most often missed?
Step 2 is frequently overlooked: you must plug the laptop's original 100W PD power cable into the "PC1-- PD/100W" port on the switch, otherwise the laptop will not charge while docked.
When will the EDID dial need to be toggled?
Enable the EDID dial if window layouts shift when you switch between the four computers; disable it if a display fails to detect its native 3840x2160@60Hz, 2560x1440@120Hz or 1920x1080@144Hz timing.
