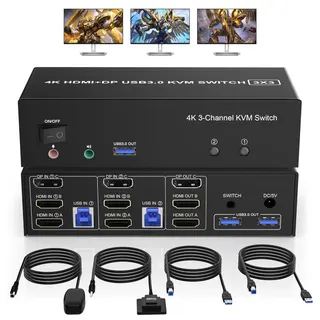

IHDAPP
IHDAPP 2 HDMI + 1 DisplayPort KVM Switch 2 Computers 3 Monitors 4K@60Hz Audio Microphone
Lets two computers share three monitors at up to 4K@60Hz with keyboard, mouse, audio and microphone switching via button or wired remote
- Type2 HDMI + 1 Displayport
- PC Connectors2 HDMI + 1 Displayport, USB 3.0
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video Resolutionup to 4K@60Hz and downwards.
- PC SelectionPush Buttons
- Control two computers with one keyboard and mouse
- Triple-monitor output at up to 4K 60 Hz
- Switch instantly via front button or wired remote
- Three USB 3.0 ports plus dedicated audio and mic jacks
- Works with Windows, Linux, Mac and more

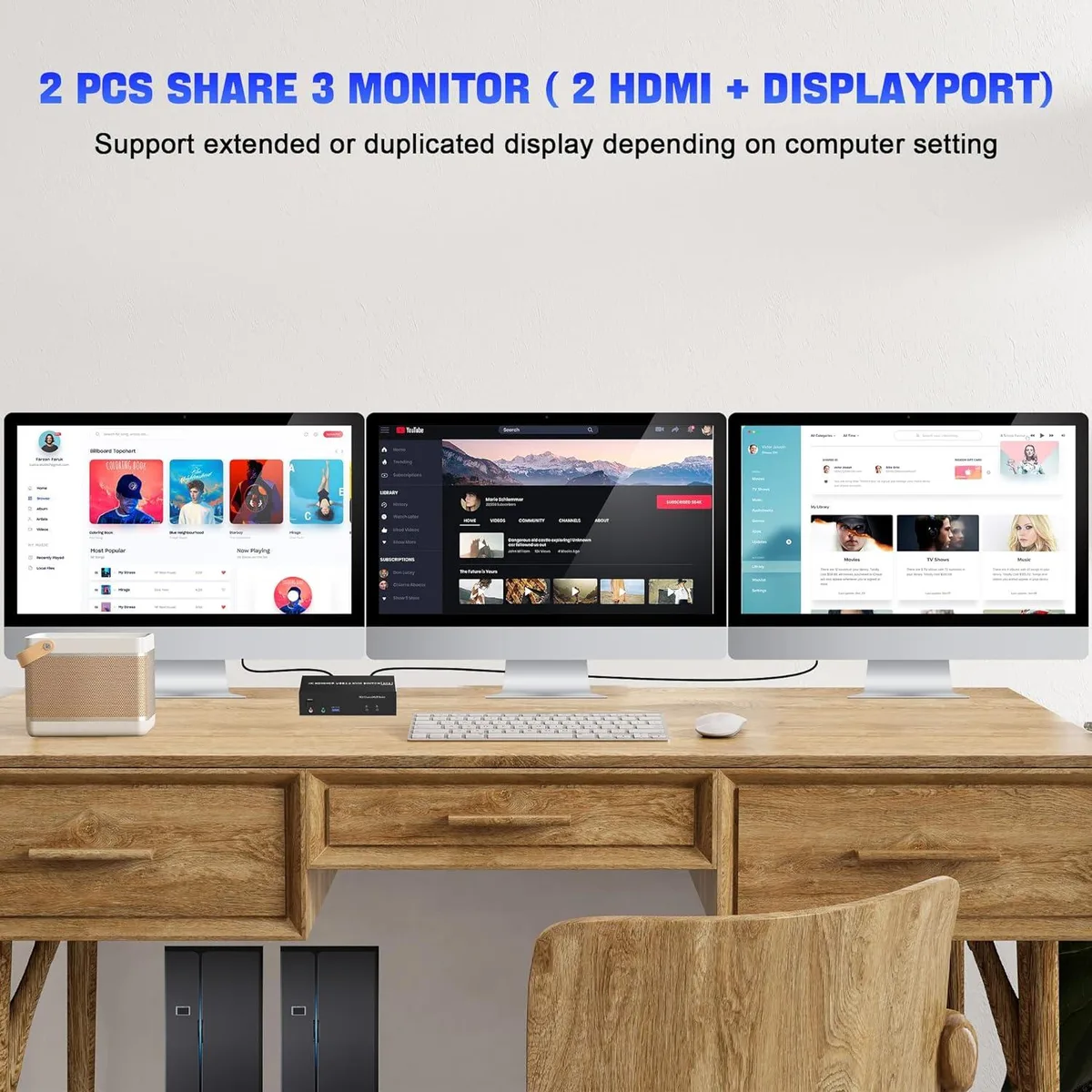

Triple-monitor KVM for two computers
This KVM switch lets two desktops or laptops share three monitors — two HDMI and one DisplayPort — with a single keyboard and mouse. It supports extended and mirrored display modes at up to 4K@60Hz. Each source must be able to drive three independent screens. The unit includes a wired remote button for convenient switching.
Passive operation with USB 3.0 and audio
No external power supply is required for basic operation, keeping the desk free of extra adapters. Three USB 3.0 ports handle keyboard, mouse, printer or other peripherals at up to 5 Gbps. Separate audio and microphone outputs are provided for headsets or speakers. LED indicators show the active computer at a glance.
Consistent 4K@60Hz under continuous use
Video performance remains stable during long sessions because the switch simply routes native HDMI 2.0 and DisplayPort 1.2 signals without compression. Switching is instant via front-panel buttons or the wired remote, with no software or driver installation needed. The metal enclosure measures 9.17 x 6.77 x 2.24 inches and weighs 1.37 pounds.
Highlights
- Control two computers with one keyboard and mouse
- Triple-monitor output at up to 4K 60 Hz
- Switch instantly via front button or wired remote
- Three USB 3.0 ports plus dedicated audio and mic jacks
- Works with Windows, Linux, Mac and more
Specifications
| Type | 2 HDMI + 1 Displayport |
|---|---|
| PC Connectors | 2 HDMI + 1 Displayport, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | up to 4K@60Hz and downwards. |
| PC Selection | Push Buttons |
| Monitors Supported | 2 HDMI + 1 Displayport Triple Monitor |
| LED Indicators | Yes |
| Audio Features | with audio and microphone output |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This 2 HDMI + 1 DP KVM switch is perfect for connecting 2 desktops or laptops to share 3 monitors and control them all with just one set of keyboard and mouse. Supports extended, mirrored displays; It requires every Laptop/PC support 3 screen or above display functions and must support extended display. |
| Features | 1. 2 computers / laptops share one set of keyboard, mouse and 3 monitors (2 HDMI + 1 DisplayPort) 2. Triple monitors output support up to 4K@60Hz for extended and mirrored display 3. Two Switching modes: Button switch and wired remote. 4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output 5. Cross support major operation systems including Windows, Linux, Mac and more 6. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered |
| Dimensions | 9.17 x 6.77 x 2.24 inches |
| Weight | 1.37 Pounds |
| Package Contents | 1x Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual |
Questions about this item
How do I connect both computers to the 2 HDMI + 1 DisplayPort KVM without mixing the inputs?

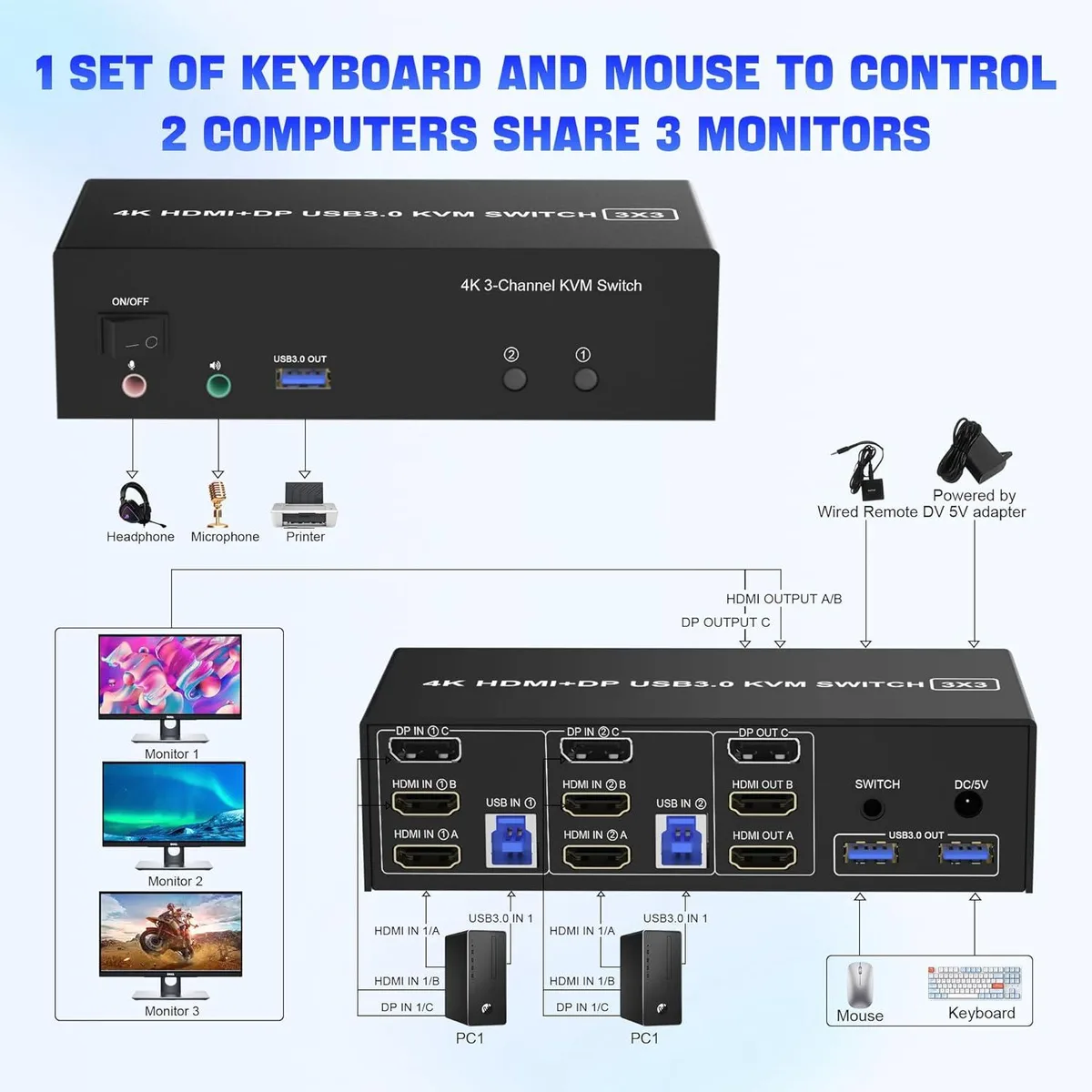

Match each computer to its labelled group: HDMI IN 1A, HDMI IN 1B, DP IN 1C and USB IN 1 for the first system; HDMI IN 2A, HDMI IN 2B, DP IN 2C and USB IN 2 for the second. The ports are hidden at the rear, so cable them before placing the unit on the desk.
Which parts will need replacement if I use this switch daily for years?
The push-button panel, wired remote controller and three USB 3.0 ports are the only moving or wear-prone components. The internal video switching circuitry is solid-state and the supplied power adapter is the only external part that may age.
What limits triple-monitor 4K output during long sessions?
Each computer must natively support three simultaneous displays at 4K@60Hz over HDMI 2.0 and DisplayPort 1.2. If a laptop only drives two external screens, the third monitor will stay dark regardless of the KVM.
