IHDAPP

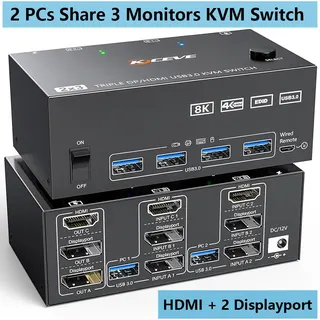

IHDAPP 2 DP + HDMI KVM Switch 2 PC 3 Mon 8K@60Hz 4K@144Hz USB 3.0
Controls two PCs across three monitors with 8K@60Hz or 4K@144Hz resolution, plus four USB 3.0 ports and push-button or remote switching
- Type2 Displayport + HDMI
- PC Connectors2 PCs
- Computer Connections2 Ports
- Monitor Connections3 Ports
- Video Resolution7680 x 4320
- PC SelectionPush Buttons

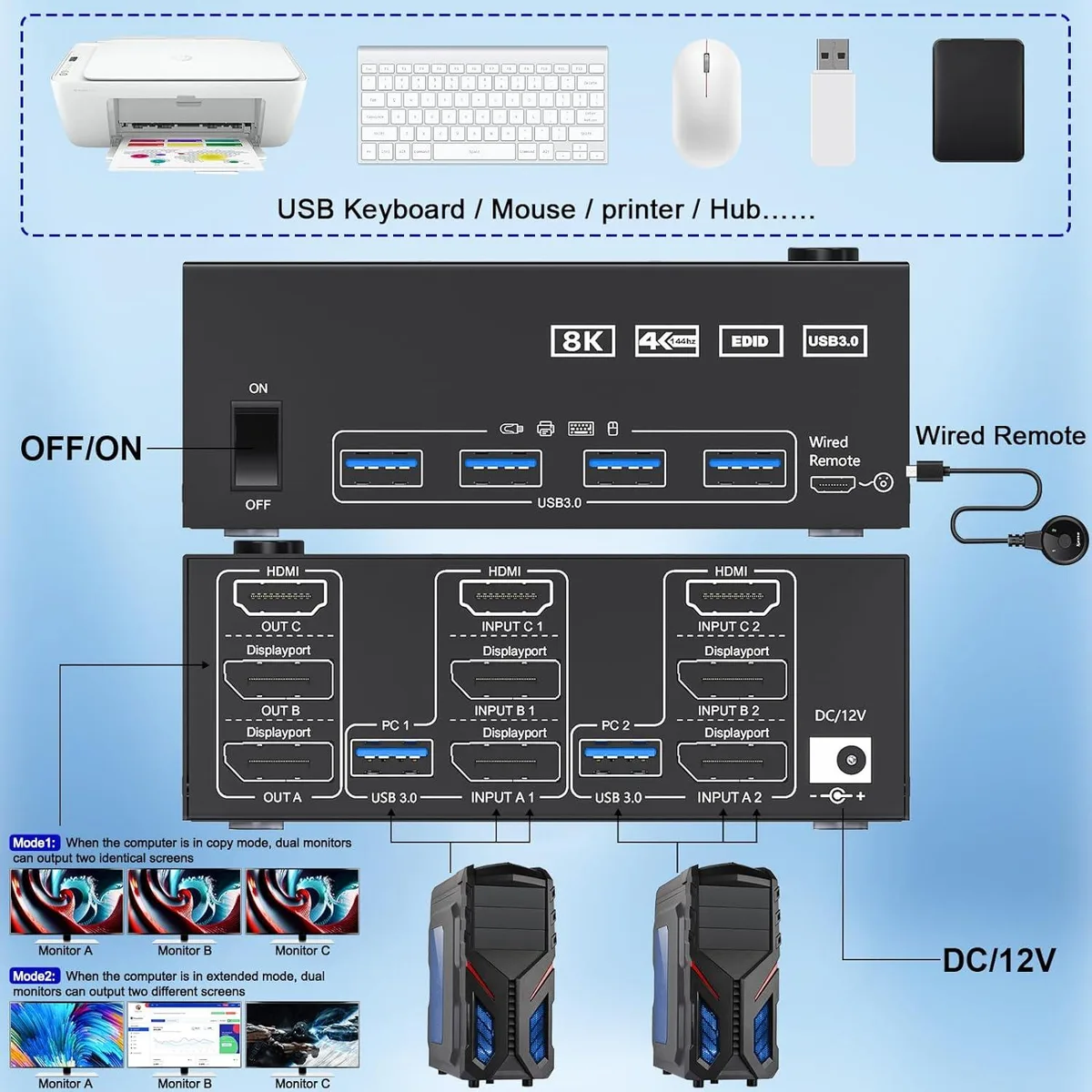

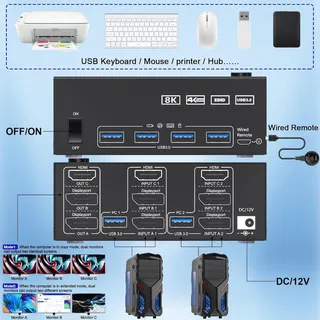

- Control 2 PCs with one keyboard and mouse set
- Share 3 monitors across both computers via DP and HDMI
- View 8K at 60 Hz or 4K at 144 Hz resolution
- Transfer data at 5 Gbps through 4 USB 3.0 ports
- Switch instantly using front button or wired remote
Triple-Monitor KVM for Two PCs
This KVM switch lets one keyboard, mouse and four USB 3.0 peripherals control two computers across three displays. It is built for users who need simultaneous multi-monitor workflows on separate systems without swapping cables. Buyers who only run a single monitor or a single PC will not use the extra video ports.
Driver-Free Setup with Cables Included
The unit works without software on Windows, Mac, Linux and Unix; switching is done by front-panel buttons or the wired remote. Two DisplayPort 1.4 cables, one HDMI 2.1 cable and two USB 3.0 cables are supplied, so the only common issue is forgetting to set the OS display mode (Win+P) after connection.
8K 60 Hz and 4K 144 Hz over DP 1.4 and HDMI 2.1
The decisive specification is the maximum video resolution of 7680 × 4320 at 60 Hz on DisplayPort and 3840 × 2160 at 144 Hz on HDMI. If your monitors or GPUs cannot reach those rates, the switch will still pass lower resolutions, but the headline bandwidth will not be used.
Highlights
- Control 2 PCs with one keyboard and mouse set
- Share 3 monitors across both computers via DP and HDMI
- View 8K at 60 Hz or 4K at 144 Hz resolution
- Transfer data at 5 Gbps through 4 USB 3.0 ports
- Switch instantly using front button or wired remote
Specifications
| Type | 2 Displayport + HDMI |
|---|---|
| PC Connectors | 2 PCs |
| Computer Connections | 2 Ports |
| Monitor Connections | 3 Ports |
| Video Resolution | 7680 x 4320 |
| PC Selection | Push Buttons |
| Monitors Supported | Triple Monitor |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This Triple Monitor HDMI + 2 Displayport KVM switch allow you to control 2 computers by only one set of wired or wireless keyboard mouse,share 4 USB 3.0 devices and 3 monitors.Unique design makes the desktop more tidy, Say goodbye to cluttered cables improve your productivity |
| Features | Switching modes:Physical button and wired remote High compatibility,canauto-match source and display device supports ultra-fast USB 3.0 data transfer, which is 10 times higher than USB 2.0, Data transfer speeds up to 5Gbps Support most major OS including Windows, Linux, Mac HDMI 2.1 Compatible input and out put ports Three display modes :extended mode, mirror mode and splicing mode Displayport 1.4 Compatible input and out put ports Built in automatic adjustment system, make the image smooth, clear and stable Simple to install,plug and play |
| Dimensions | 11.9 x 6.5 x 4.3 cm |
| Weight | about 200g |
| Package Contents | 1x Triple Monitor KVM Switch, 2x DP1.4 Cable, 1x HD-MI2.1 Cable, 2x USB 3.0 Cable, 1x Power Adapter, 1x Wired remote, 1x User's manual |
Questions about this item
How do I confirm the KVM switch is passing 8K 60 Hz to my monitors after setup?
Press Windows+P on each PC and select Extend mode; both LED indicators should light, showing the active computer, and all three monitors must display the 7680×4320 desktop without flicker.
Which cables and adapters are included versus what I must buy separately?
The box contains two DP 1.4 cables, one HDMI 2.1 cable, two USB 3.0 cables, a power adapter and a wired remote; any DP-to-HDMI, USB-C-to-DP or docking-station adapters are extra.
Should I choose the DP 1.4 or HDMI 2.1 inputs for 4K 144 Hz gaming?
Use the two DisplayPort 1.4 ports for 3840×2160 at 144 Hz; the single HDMI 2.1 port is limited to 60 Hz at that resolution.
