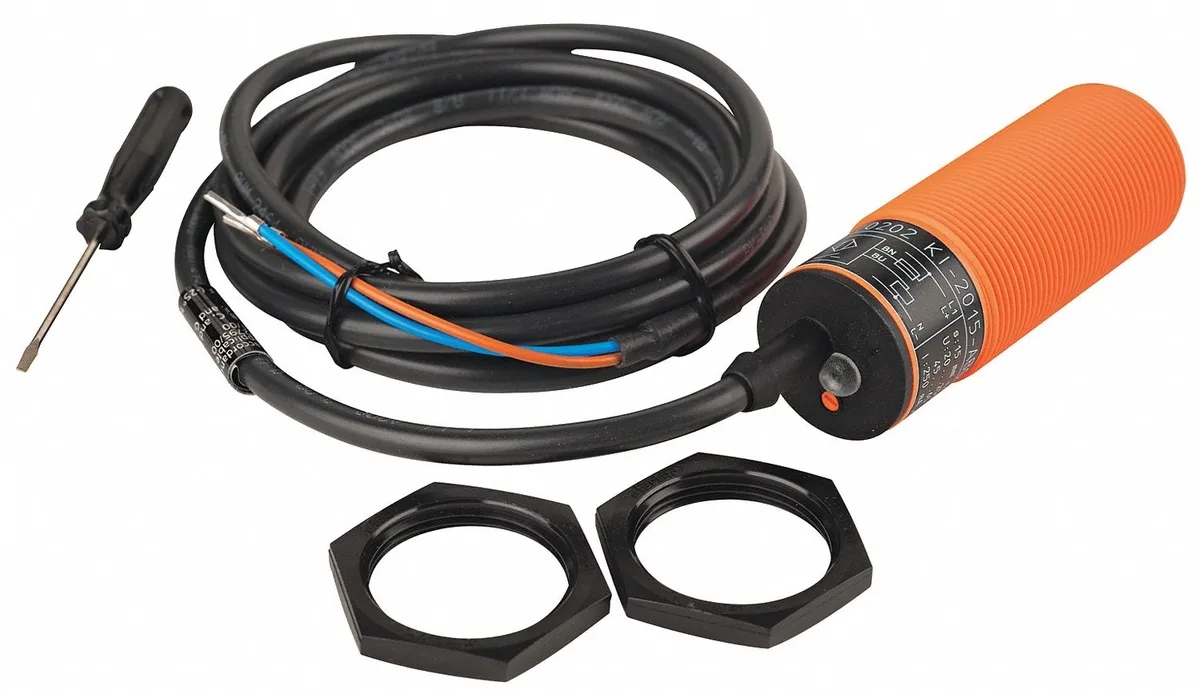

Grey cylindrical proximity sensor 30 mm diameter 99 mm long with 2 m cable

IFM Efector Inc

IFM Efector Inc KI0203 Capacitive Proximity Sensor 15mm NC

SKU CH-MY94-S5JJ9

Capacitive proximity sensor detects objects up to 15 mm with NC output, 20–250 V AC/DC supply and IP65 rating

  • TypeEnclosures
  • Color/FinishGray
  • Detects objects up to 15 mm away
  • Operates on 20 to 250 V AC/DC supply
  • Withstands temperatures from -13 to 158 °F
  • IP65 rating protects against dust and water jets
  • 2 m cable provides flexible installation reach

IFM Capacitive Proximity Sensor 15mm NC

This capacitive proximity sensor detects objects at a maximum distance of 15 mm using an unshielded 30 mm cylindrical housing. It operates on a wide 20 to 250V AC/DC supply and provides a normally closed two-wire output. The grey PBT case carries an IP65 rating and measures 99 mm in length. It suits industrial automation tasks requiring non-contact presence detection.

Check supply voltage and wiring before ordering

Verify that your control circuit provides between 20 and 250V AC or DC and can accept a two-wire normally closed signal with a maximum load of 250 mA AC or 200 mA DC. Confirm the 2 m cable length reaches your termination point without splicing. Ensure the operating temperature range of -13 to 158 degrees F matches the installation environment.

Replaces failed two-wire NC capacitive sensors

This unit serves as a direct drop-in replacement for existing 30 mm unshielded capacitive sensors with identical voltage, output logic and 15 mm sensing distance. The upgrade is worthwhile when the current sensor shows reduced reliability, damaged cabling or degraded sealing. It is not suited for applications needing a normally open output, shielded mounting or a different sensing range.

Highlights

  • Detects objects up to 15 mm away
  • Operates on 20 to 250 V AC/DC supply
  • Withstands temperatures from -13 to 158 °F
  • IP65 rating protects against dust and water jets
  • 2 m cable provides flexible installation reach

Specifications

BrandIFM
TypeEnclosures
Color/FinishGray

Questions about this item

Does the KI0203 sensor ship with a mounting bracket or must I source one separately?

The sensor is supplied with a 2 m cable and a PBT case; mounting hardware is not included and must be purchased separately.

Should I select the 15 mm unshielded version or a shielded alternative for my application?

This model is the 15 mm unshielded capacitive type; choose it when you need the full 15 mm sensing range through non-metallic walls.

How does the 15 mm detecting distance behave once the sensor is installed in a machine?

The rated 15 mm range applies under standard conditions; actual distance can vary with target material, temperature and mounting orientation.
