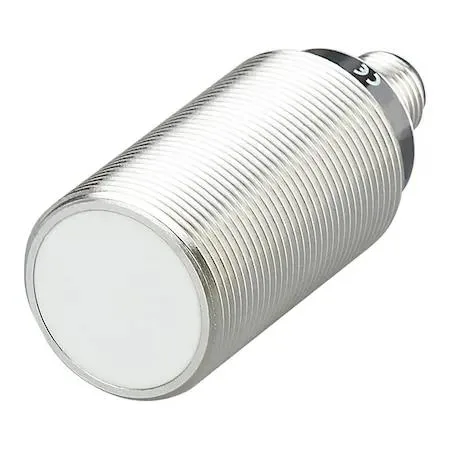

Cylindrical brass inductive sensor, 30 mm diameter, 72 mm length, 3-pin connector

IFM Efector Inc

IFM Efector Inc II0340 Inductive Proximity Sensor 15mm NO 30mm 20-250V AC/DC IP67 Brass

SKU CH-YSPJ-XQT35

Inductive proximity sensor detects metal at 15 mm with NO output on 20–250 V AC/DC and IP67 brass housing

  • TypeEnclosures
  • 15 mm sensing range detects metal targets reliably
  • 20–250 V AC/DC supply works with wide voltage sources
  • IP67 brass housing resists dust and water ingress
  • 2-wire NO output simplifies wiring installation
  • 13 °F to 158 °F operating range suits harsh environments

Industrial Proximity Detection

The IFM II0340 is an inductive proximity sensor built for industrial automation tasks that require non-contact metal detection. Its shielded cylindrical brass housing carries an IP67 rating and a white bronze coating for durability in harsh environments. The unit operates on a wide 20 to 250V AC/DC supply, simplifying integration into varied control panels.

Upgrade From Basic Switches

This sensor replaces mechanical limit switches where physical wear, dirt ingress, or vibration cause frequent failure. The jump is worth it when the application demands a 15.0 mm sensing range on a 30.0 mm diameter body without moving parts. It suits machines needing a normally open 2-wire output and a 3-pin 1/2-20 UNF male connector for quick wiring.

Sustained Load Behaviour

Under continuous operation the sensor maintains its 25 Hz AC or 40 Hz DC switching frequency up to the rated current limits of 250 mA for AC and 100 mA for DC. The brass case dissipates heat across an operating span of -13 to 158 degrees Fahrenheit without derating the 72 mm housing. Sealed construction prevents contaminant buildup that would degrade repeatability over long shifts.

Highlights

  • 15 mm sensing range detects metal targets reliably
  • 20–250 V AC/DC supply works with wide voltage sources
  • IP67 brass housing resists dust and water ingress
  • 2-wire NO output simplifies wiring installation
  • 13 °F to 158 °F operating range suits harsh environments

Specifications

BrandIFM
TypeEnclosures

Questions about this item

What size mounting hole does the 30 mm brass sensor body need?

The sensor has a 30.0 mm cylindrical brass body, so a 30 mm clearance hole lets it sit flush for standard M30 mounting hardware.

How do I wire the 3-pin 1/2-20 UNF connector without reversing the load?

The 2-wire output is normally open; connect the load in series with the brown and blue pins, then tighten the 1/2-20 UNF plug to maintain IP67.

When should I replace the sensor if the sensing face gets damaged?

Replace it if the 15.0 mm detecting distance drops or the IP67 seal fails, since the white-bronze coated brass face cannot be resealed.
