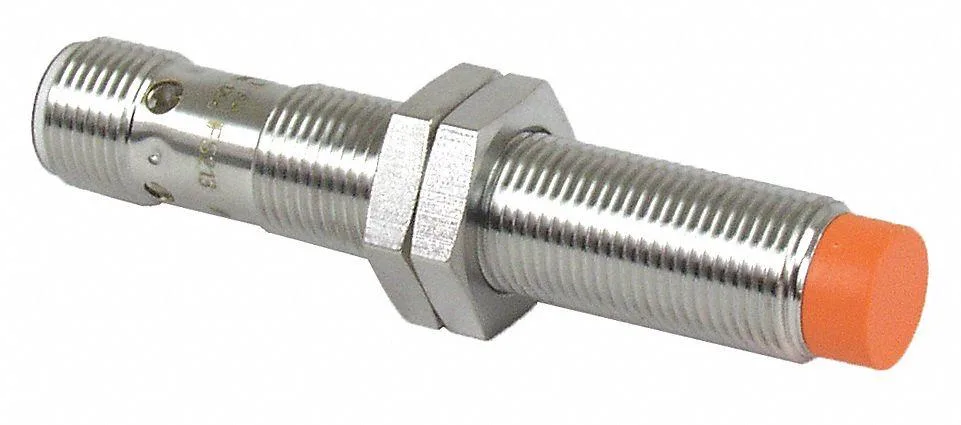

Cylindrical brass sensor with white bronze coating and M12 connector

IFM Efector Inc

IFM Efector Inc IFS213 Inductive Proximity Sensor 12 mm 7 mm PNP NO IP67

SKU CH-6Y3D-JAVPX

Inductive proximity sensor detects metal at 7 mm, PNP normally-open output, 10 to 30 V DC, IP67 brass housing

  • TypeEnclosures
  • Detects metal targets up to 7 mm range
  • PNP normally-open output simplifies PLC wiring
  • 10 to 30 V DC supply fits standard control voltage
  • IP67 brass housing resists water and dust ingress
  • 700 Hz switching frequency supports fast automation cycles

Sensor purpose and fit

The IFM IFS213 is an inductive proximity sensor built for industrial detection tasks where a 12 mm cylindrical housing fits. It targets control systems that need a PNP normally-open output and a 4-pin M12 connection. The brass housing with white bronze coating suits harsh environments. It is not for applications requiring a shielded sensing face or an NPN output type.

Sensing range and electrical headroom

The sensor detects metal targets up to 7 mm away with an operating frequency of 700 Hz. It runs on 10 to 30 V DC and switches a maximum load of 100 mA. The unshielded design gives the stated range but makes the sensor more sensitive to surrounding metal. It is not for circuits that demand higher switching current or a longer sensing distance.

Interface limits and environmental bounds

The 4-pin M12 connector defines the wiring interface and limits cable options to matching cordsets. The IP67 rating protects against dust and temporary immersion. Operating temperature spans -13 to 158 degrees F. The 70 mm overall length sets the mounting depth required. It is not for environments exceeding the temperature range or for mounting spaces shorter than 70 mm.

Highlights

  • Detects metal targets up to 7 mm range
  • PNP normally-open output simplifies PLC wiring
  • 10 to 30 V DC supply fits standard control voltage
  • IP67 brass housing resists water and dust ingress
  • 700 Hz switching frequency supports fast automation cycles

Specifications

BrandIFM
TypeEnclosures

Questions about this item

Will the IFS213 sensor operate correctly with my existing 10 to 30 V DC control cabinet supply?

Yes, the sensor accepts 10 to 30 V DC, so it will work with any supply in that range.

How can I confirm the IFS213 is detecting targets at its rated 7 mm distance after installation?

The PNP normally open output switches high when metal enters the 7 mm sensing zone; watch the PLC input LED or measure 100 mA load current.

Does the IFS213 come with a mating M12 cable or must I purchase the 4-pin connector separately?

Only the sensor with its integral 4-pin M12 connector is supplied; a compatible cable assembly must be bought separately.
