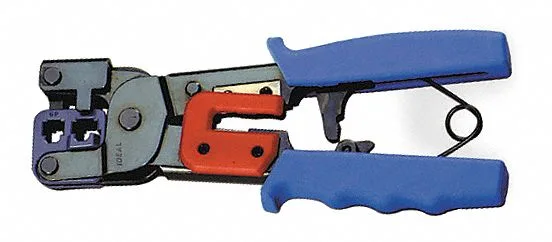

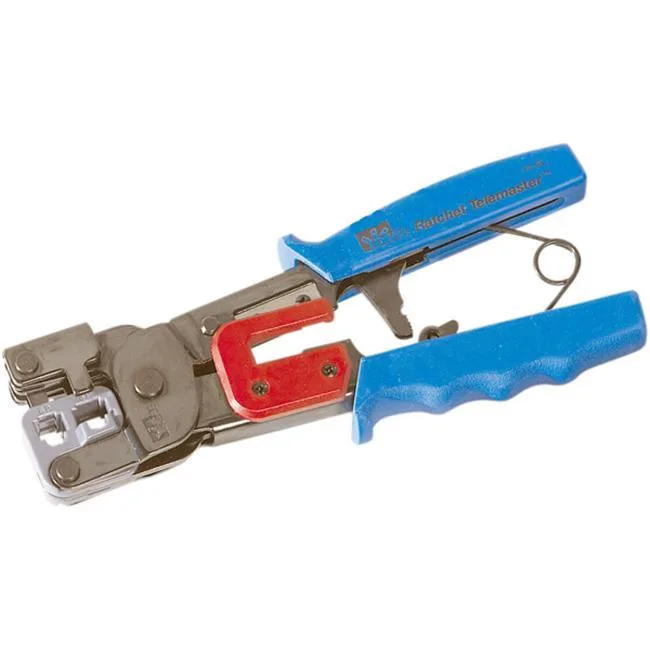

Ideal 30-696 Ratchet Telemaster Modular Plug Tool
A ratchet crimper for voice and data cables with a 13-inch cushioned grip and adjustable die system
- TypeCrimping Tool Dies
- Ratchet mechanism ensures consistent crimps every time
- Cushion-grip handle reduces fatigue during extended use
- Adjustable die system adapts to multiple modular plug types
- 13-inch length provides extra leverage for solid connections
- Suitable for voice and data cable terminations
Ideal 30-696 Ratchet Telemaster Tool
The Ideal 30-696 is a manual ratchet crimper designed for terminating modular plugs on voice and data cables. It features an adjustable die system and a 13-inch frame with cushion grip handles for operator comfort. This hand tool is intended for technicians and installers who need reliable crimp connections on site.
Suited for field terminations and repair work
Installers who regularly terminate RJ-type connectors will appreciate the ratchet mechanism that ensures full-cycle crimps. The adjustable dies allow flexibility across compatible plug types without swapping tool heads. Users requiring automated high-volume production or specialised coaxial crimping should consider dedicated bench equipment instead.
Simple setup with die adjustment
The tool ships ready to use; select the required die position for the plug type and engage the ratchet handle until it releases. Common issues include misaligned dies causing uneven crimps or using incompatible modular plugs that do not match the die profile. Regular cleaning of the die faces maintains consistent termination quality.
Highlights
- Ratchet mechanism ensures consistent crimps every time
- Cushion-grip handle reduces fatigue during extended use
- Adjustable die system adapts to multiple modular plug types
- 13-inch length provides extra leverage for solid connections
- Suitable for voice and data cable terminations
Specifications
| Brand | IDEAL |
|---|---|
| Type | Crimping Tool Dies |
Questions about this item
What modular plug dies must I already have to use the 30-696 ratchet crimper?
The 30-696 uses a manual adjustable die system; you need compatible modular plug dies for the voice or data connectors you plan to terminate.
Will the 13-inch ratchet crimper work with older IDEAL die sets I already own?
Yes, if the older dies fit the adjustable die system they can be swapped in for the same voice and data cable applications.
How can I confirm the 30-696 is crimping correctly after I set the dies?
The ratchet mechanism releases only when the crimp cycle completes fully, giving a tactile and audible signal that the connection is properly formed.
