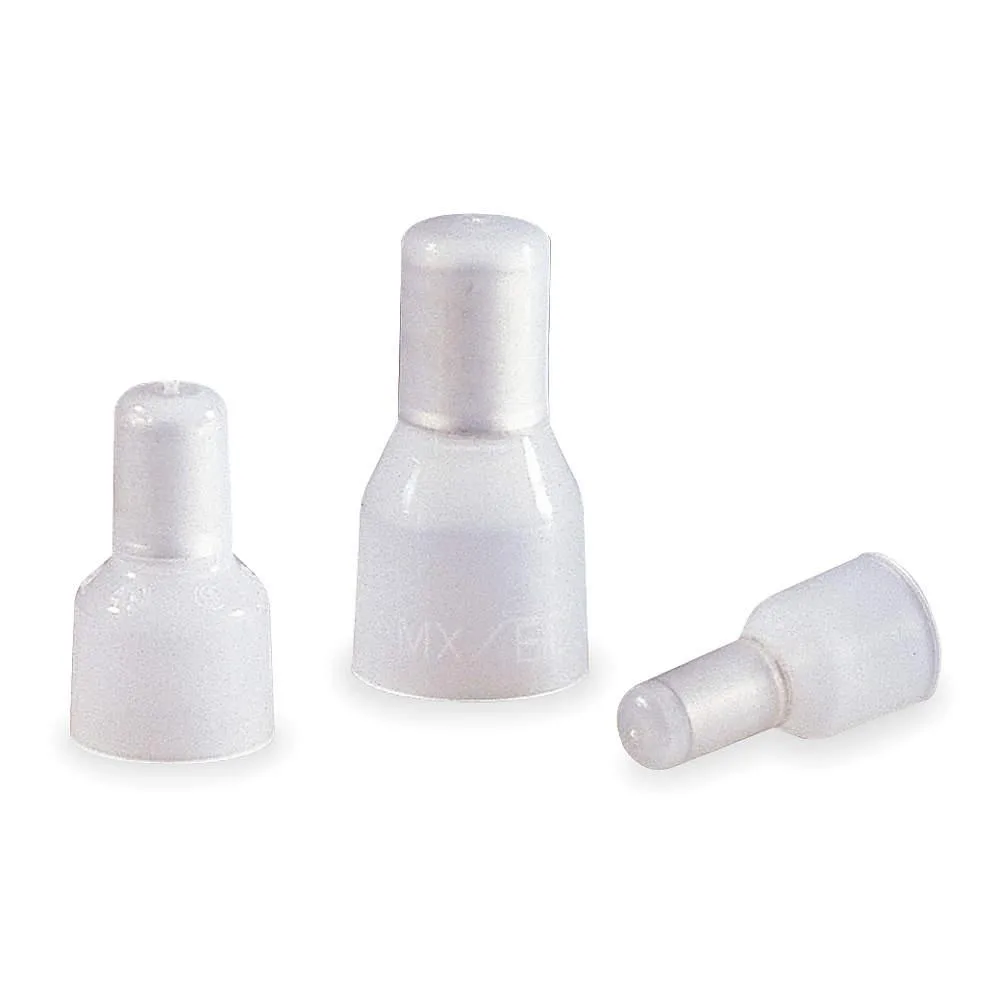

Clear nylon crimp connector, cylindrical, 1.07 in long

Ideal

Ideal 30-147 Crimp Wire Connector Clear Nylon 600 V 1000 PK

SKU CH-96FS-G78P8

Clear nylon crimp connectors join 22 to 12 AWG wires at 600 V, UL 486C listed, 1000 per pack

  • TypeElectrical Connectors
  • Connects 22–12 AWG wires with one crimp
  • Clear nylon lets you verify every connection
  • Rated 600 V for residential and commercial circuits
  • Withstands 221 °F in high-heat environments
  • UL 486C and CSA C22.2 #188 certified safety

Ideal 30-147 Closed-End Crimp Connectors

These closed-end crimp connectors accept solid or stranded copper wire from 22 AWG up to 12 AWG. The nylon insulation is rated for a maximum operating temperature of 221 degrees Fahrenheit and a maximum voltage of 600 V. They come in a bulk pack of 1000 pieces for high-volume electrical work.

Practical limits of the 600 V nylon-insulated

The connectors are listed to UL 486C and certified to CSA C 22.2 #188 for safety compliance. Minimum wire combination is one 18 AWG with one 22 AWG, while maximum combination is one 12 AWG with one 16 AWG. Overall length measures 1.07 inches, which determines the space needed inside junction boxes or enclosures.

Replaces tape splices

Crimping creates a gas-tight, vibration-resistant connection that twist-on connectors cannot match in harsh environments. The steel contacts with nickel finish resist corrosion better than bare copper splices. The jump is worth it when a sealed, insulated, and standards-compliant joint is required for 600 V circuits.

Highlights

  • Connects 22–12 AWG wires with one crimp
  • Clear nylon lets you verify every connection
  • Rated 600 V for residential and commercial circuits
  • Withstands 221 °F in high-heat environments
  • UL 486C and CSA C22.2 #188 certified safety

Specifications

BrandIDEAL
TypeElectrical Connectors

Questions about this item

Which wire-gauge range does the 30-147 connector cover so I can match my cables?

It accepts from 22 AWG up to 12 AWG, with a minimum combination of one 18 AWG plus one 22 AWG and a maximum of one 12 AWG plus one 16 AWG.

What does the 600 V rating mean when the connector is crimped in a harness?

The 600 V rating is the maximum operating voltage the nylon-insulated crimp is certified to withstand under UL 486C and CSA C22.2 #188.

How does the clear nylon insulation and steel contact affect the temperature limit?

The assembly is rated for a maximum operating temperature of 221 °F, set by the nylon insulation and nickel-plated steel contact.
