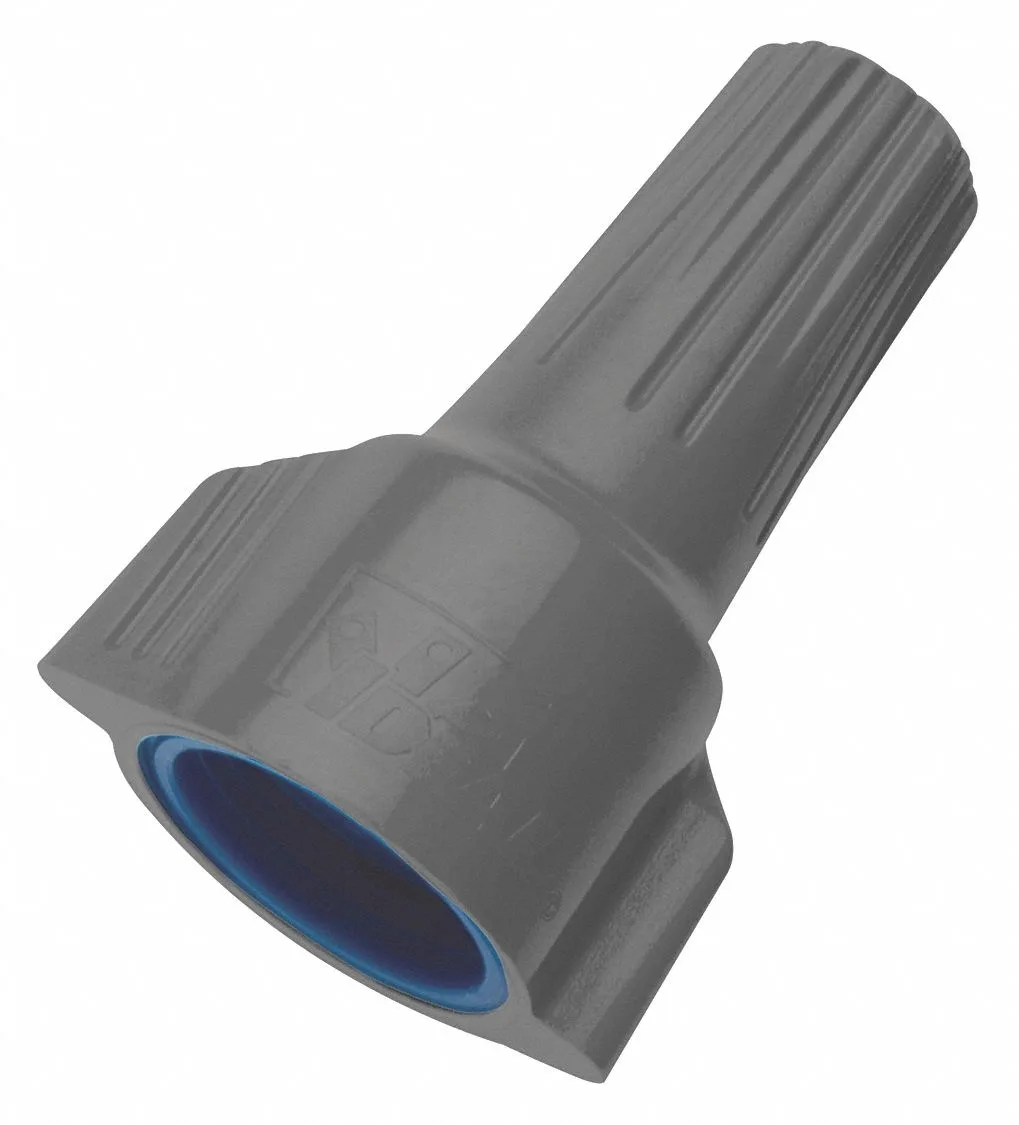

Blue and gray winged twist-on wire connector with thermoplastic body

Ideal

Ideal 30-1263J Twist-On Wire Connector Blue Gray

SKU CH-0FC7-YE1F1

Twist-on wire connector joins copper conductors up to 600 V and 221 °F with winged thermoplastic insulation

  • TypeElectrical Connectors
  • Handles up to 6 conductors for complex wiring jobs
  • Rated 600 V for standard residential and commercial circuits
  • Withstands 221 °F operating temperature for demanding environments
  • UL 94 V-2 flammability rating adds safety assurance
  • Wing-style twist-on design enables quick tool-free installation

Ideal 30-1263J Wire Connector

The Ideal 30-1263J is a twist-on wing connector built for copper conductors in residential or light commercial wiring. Its thermoplastic polyester shell and silicone fill resist heat up to 221 degrees F while meeting UL 94 V-2 flammability requirements.

600 Volt 6 AWG Maximum Limit

Rated for 600 volts, the connector accepts a maximum single wire of 8 AWG and a combined maximum of five 10 AWG conductors. The lower bound starts at three 14 AWG wires, so very small gauge bundles fall outside the listed range.

Replaces Standard Wire Nuts

Installers moving from basic twist-on nuts gain the wing profile for higher torque and the silicone fill for moisture resistance. The step up is worthwhile when vibration or temperature cycling demand a more secure grip than a plain cap provides.

Highlights

  • Handles up to 6 conductors for complex wiring jobs
  • Rated 600 V for standard residential and commercial circuits
  • Withstands 221 °F operating temperature for demanding environments
  • UL 94 V-2 flammability rating adds safety assurance
  • Wing-style twist-on design enables quick tool-free installation

Specifications

TypeElectrical Connectors
BrandIDEAL

Questions about this item

Should I use the blue/gray connector for 14 AWG or 10 AWG wires?

The connector handles a minimum of three 14 AWG and a maximum of five 10 AWG copper conductors, with a single-wire limit of 8 AWG.

What does the 600 V rating mean for my circuit?

It certifies the connector for circuits up to 600 volts; the thermoplastic insulation and V-2 flammability rating maintain that safety margin at the listed voltage.

Is the wing-style twist-on connector compatible with standard electrical boxes?

Yes, the wing design provides leverage for hand-tightening onto copper wires, and the UL/CSA listings confirm it meets standard box-fill and temperature requirements.
