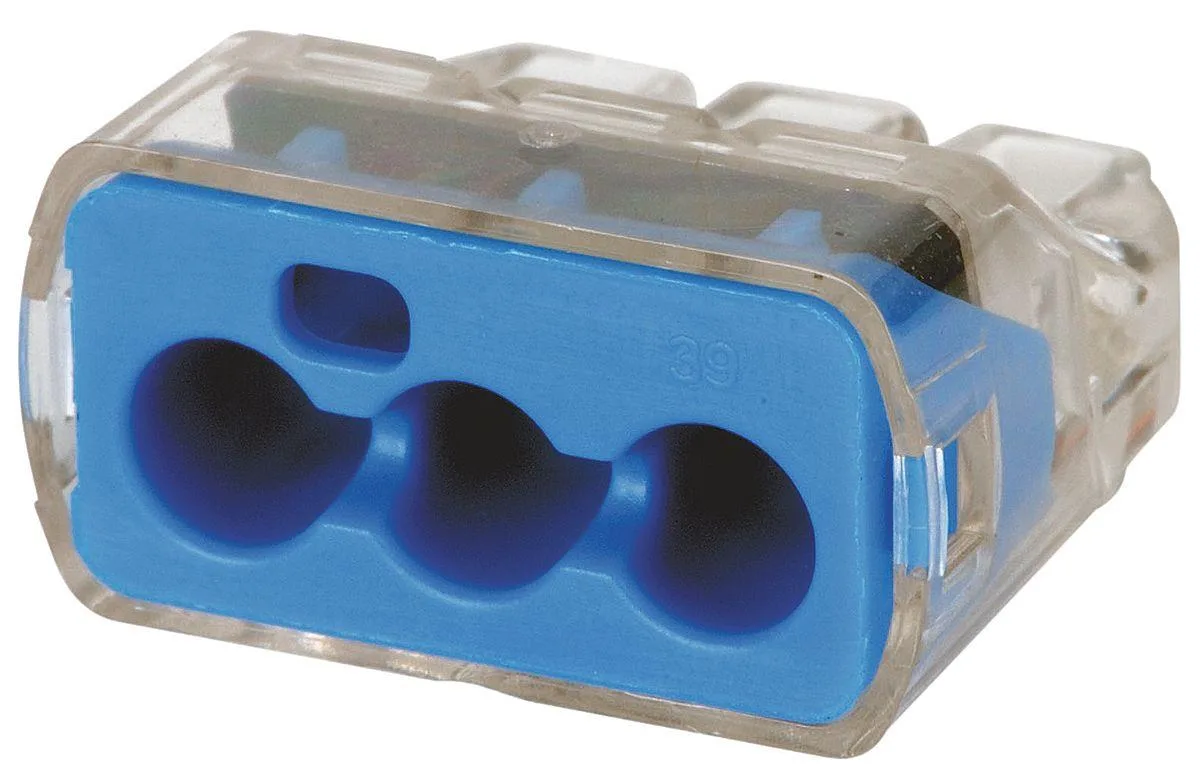

Blue three-port push-in wire connectors polycarbonate housing pack of fifty

Ideal

Ideal 30-1039 3-Port Push-In Connector Blue PK50

SKU CH-CX1B-XQAD2

Three-port push-in connectors accept 12 to 10 AWG stranded copper wire, rated 600 V and 221 °F, supplied in a pack of 50

  • Length0.78"
  • TypePush-In
  • Push-in design speeds wiring without tools
  • Three ports join up to three conductors
  • Accepts 12 to 10 AWG stranded copper wire
  • Rated 600 V and 221 °F for demanding circuits
  • Pack of 50 connectors for volume jobs

3-Port Push-In Connector for Copper Wire

The Ideal 30-1039 accepts stranded copper or tin-plated copper conductors from 12 AWG to 10 AWG. Each blue polycarbonate housing provides three ports rated for 600 V and a maximum operating temperature of 221 °F. The push-in design allows tool-free termination for solid and stranded wire. UL 94 V-2 flammability rating and CSA/UL listings confirm compliance.

Pack of Fifty Connectors Speeds Volume Work

A single pack contains fifty 3-port units, reducing re-order frequency on large residential or commercial jobs. The compact 0.78 in length and 0.86 in width fit tight junction boxes without stacking issues. RoHS-compliant materials meet current environmental restrictions for wire-connection hardware.

Suited for Electricians Running Multiple Circuits

Installers joining up to three conductors per connection point benefit from the quick push-in action and clear port visibility. The 10 AWG maximum wire size limits use on heavier feeder cables. Buyers needing connectors for larger gauges or higher port counts should select a different model.

Highlights

  • Push-in design speeds wiring without tools
  • Three ports join up to three conductors
  • Accepts 12 to 10 AWG stranded copper wire
  • Rated 600 V and 221 °F for demanding circuits
  • Pack of 50 connectors for volume jobs

Specifications

BrandIdeal
Length0.78"
TypePush-In

Questions about this item

Will the polycarbonate housing need replacing after years at the 221 °F limit?

The housing is rated to 221 °F and carries a UL 94 V-2 flammability rating; it is not a consumable part and does not require scheduled replacement under normal conditions.

What stops me from adding more than three wires to the connector?

The body has exactly three push-in ports, each accepting one stranded copper or tin-plated copper conductor between 12 AWG and 10 AWG.

Does the connector get hot when run at 600 V continuously?

The connector is rated for 600 V and a maximum operating temperature of 221 °F; it does not generate heat itself, but ambient temperature plus current heating must stay below that limit.
