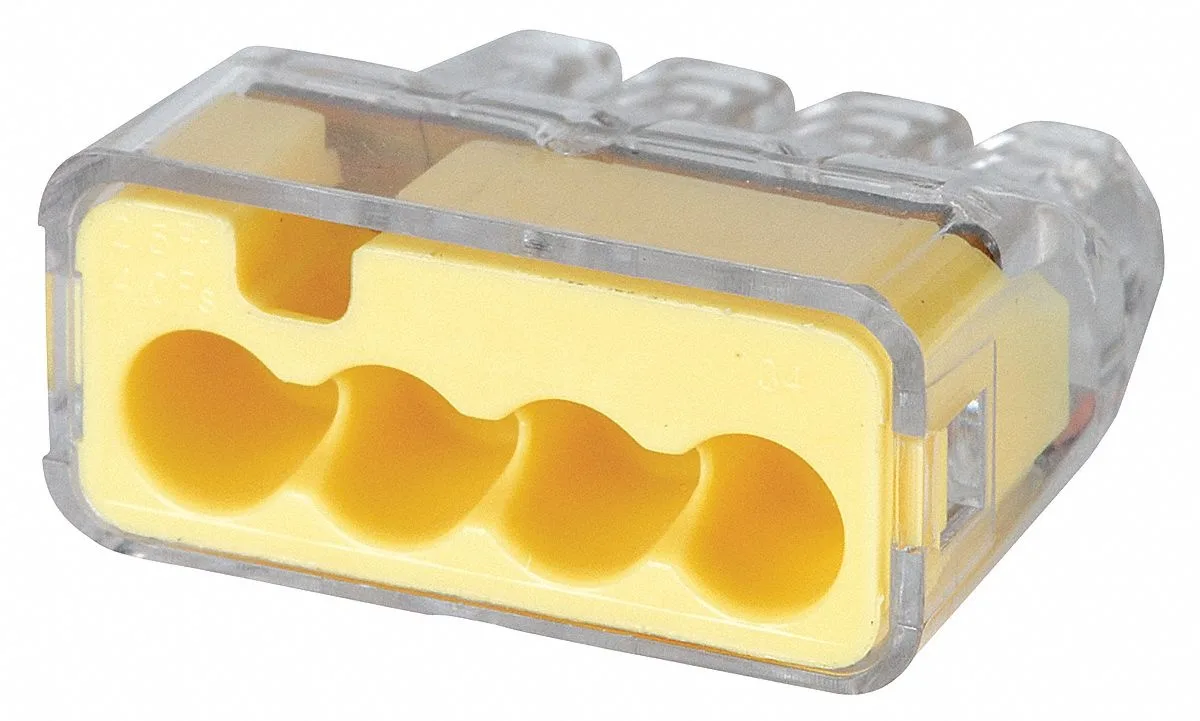

Yellow push-in wire connector four ports polycarbonate housing 0.78 inch length pack of 200

Ideal

Ideal 30-1034J 4-Port Push-In Wire Connector Yellow PK200

SKU CH-TKAT-G2NAC

Pack of 200 four-port yellow push-in connectors accepting 16–12 AWG copper, rated 600 V and 221 °F

  • Length0.78"
  • TypePush-In
  • Push-in design speeds up wiring jobs
  • Four ports handle multiple conductors in one block
  • Accepts 16 to 12 AWG stranded copper wire
  • Rated for 600 V and 221 °F operating temperature
  • UL and CSA listed with UL 94 V-2 flammability rating

Quick 4-Port Splicing for Copper Wire

Ideal 30-1034J push-in connectors join solid or stranded copper conductors from 16 to 12 AWG without twisting or tape. The polycarbonate housing is rated for 600 V and 221 °F, meeting UL 94 V-2 and CSA standards. Each yellow connector accepts four wires and the pack contains 200 pieces.

Tool-Free Installation with Visual Check

Strip each conductor to the proper length and push it straight into a port until it seats; the transparent window lets you confirm full insertion. The only common error is inserting undersized or oversized wire outside the 16–12 AWG range, which prevents a reliable contact.

Four Ports per Connector Decides Fit

Each unit provides exactly four independent ports, so one connector handles up to four conductors in a single junction. Jobs that require three-wire or five-wire splices will need a different port count.

Highlights

  • Push-in design speeds up wiring jobs
  • Four ports handle multiple conductors in one block
  • Accepts 16 to 12 AWG stranded copper wire
  • Rated for 600 V and 221 °F operating temperature
  • UL and CSA listed with UL 94 V-2 flammability rating

Specifications

BrandIdeal
Length0.78"
TypePush-In

Questions about this item

How can I confirm the 30-1034J connector is seated properly after pushing in the wires?

The push-in design holds 12 AWG to 16 AWG stranded copper or tin-plated copper; a firm tug on each wire verifies the internal spring clamp has gripped the conductor inside the polycarbonate housing.

What comes in the PK200 pack and do I need any extra tools or wire types?

The pack contains 200 yellow 4-port push-in connectors rated for 600 V and 221 °F; no special tools are required, but you must supply stranded copper or tin-plated copper wire between 16 AWG and 12 AWG.

Why choose the yellow 4-port version over other Ideal push-in connectors?

This 30-1034J model provides four ports in a 0.78 in × 0.82 in × 0.38 in polycarbonate body with UL 94 V-2 flammability rating, CSA and UL listing, and RoHS compliance for 600 V applications.
