iDatalink KIT-PAC1 Dash Kit for 2017+ Pacifica, 2020+ Voyager, 2021+ Grand Caravan

Dash Kit for 2017+ Pacifica, 2020+ Voyager.

This dash kit enables installation of an iDatalink-ready aftermarket receiver in select Chrysler minivans. It supports 2017 and newer Pacifica, 2020 and newer Voyager, and 2021 and newer Grand Caravan models equipped with 4-inch, 7-inch, or 8.4-inch factory radios. The kit provides a factory-grade fit and finish across all trim levels.

Included Harnesses, Adapters, and Media Hub Board

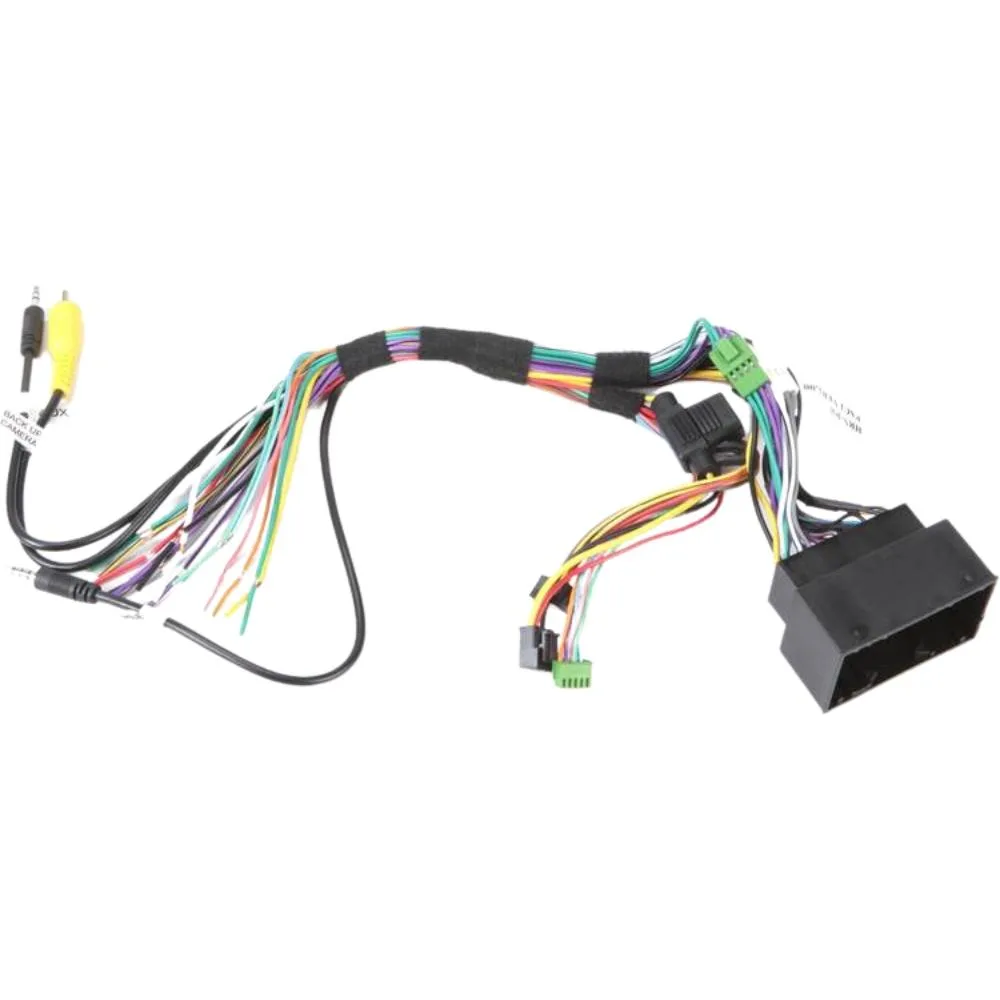

The package supplies a CH3 T-harness, backup camera harness, AM/FM antenna adapter, metal mounting brackets, and a media hub replacement board with a USB port and auxiliary audio input jack. These components retain the vehicle’s on-screen climate controls, cluster display, backup camera, and rear-seat entertainment system when equipped. They also add gauges and vehicle information display accessible through the new Maestro-compatible radio.

Installation Requires Separate Maestro Module

Installation is straightforward with the provided vehicle-specific harnesses and brackets, but the system will not function without a separately purchased Maestro ADS-MRR or ADS-MRR2 module. Builders who already own a compatible aftermarket radio still need to budget for and install that module. The kit is not suitable for vehicles lacking the supported factory radio sizes or for owners unwilling to add the required Maestro interface.
