ID TECH
ID TECH IDMB-334133BM MiniMag Intelligent credit card reader
Magnetic-stripe reader reads three tracks at 3–60 IPS via keyboard wedge or USB in a 90 mm black housing
- TypeMagStripe Reader
- InterfaceKeyboard wedge / USB
- ColorBlack
- Read Speed3 to 60 IPS
- Track1, 2 & 3
- Card FormatAAMVA, CA DVM
- Reads three tracks in either direction for flexible swiping
- Keyboard wedge and USB interfaces simplify system integration
- Compact 90 mm length fits tight counter spaces
- 1 000 000-pass head rating supports high-volume use
- Programmable data output matches custom application needs

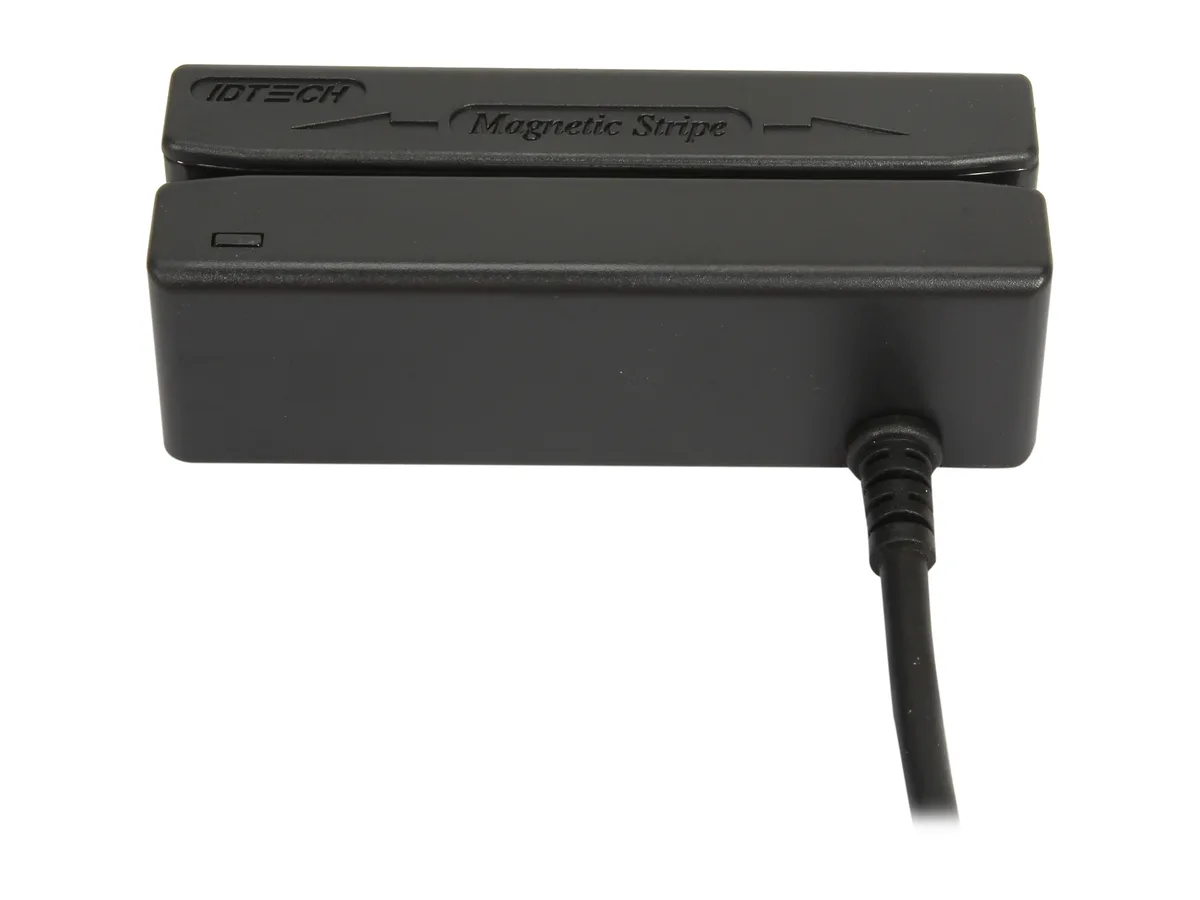

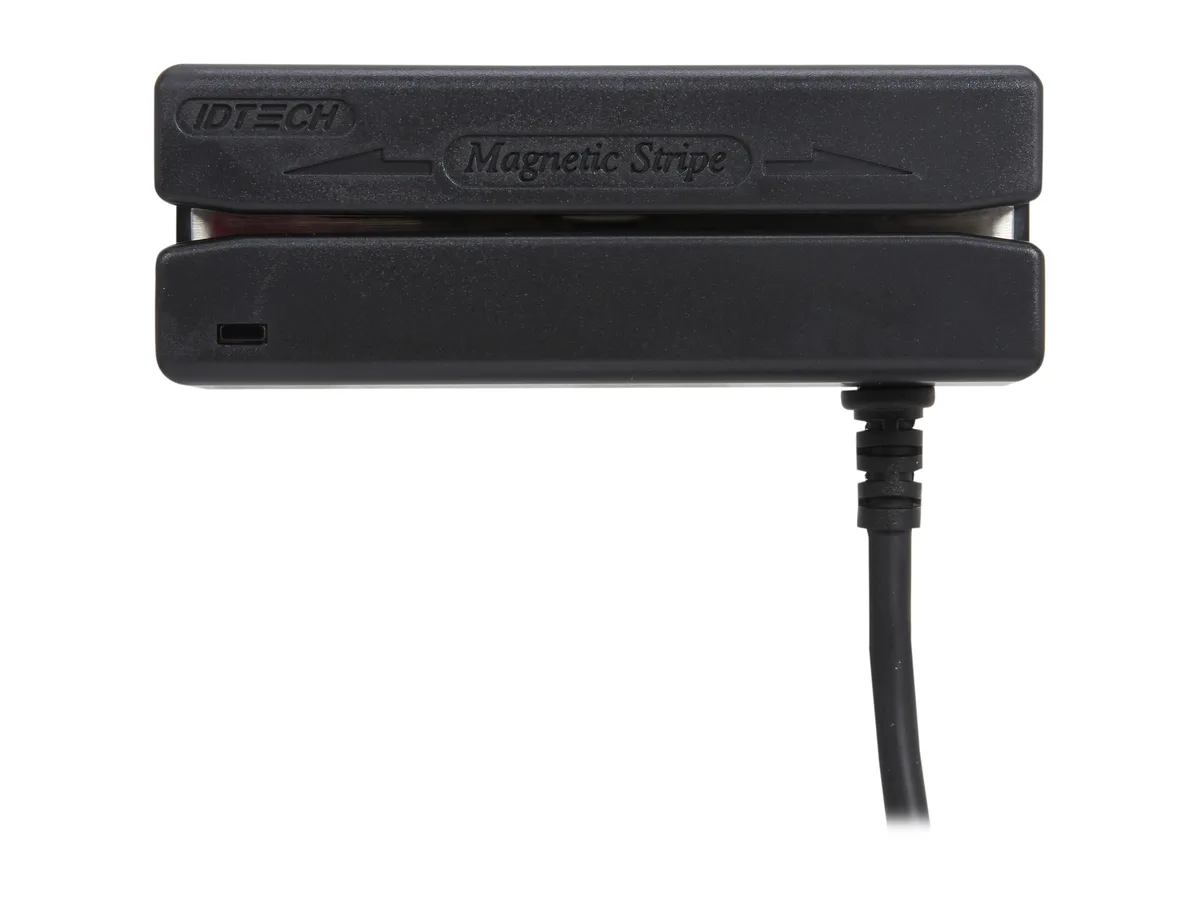

ID TECH MiniMag Intelligent Reader
The ID TECH MiniMag Intelligent IDMB-334133BM is a compact magnetic stripe reader designed for point-of-sale systems. It reads up to three tracks of card data in either swipe direction at speeds from 3 to 60 IPS. The unit measures 3.5 inches long and connects via keyboard wedge or USB interface for broad compatibility.
Suits POS systems needing three-track reading
This reader suits businesses requiring reliable AAMVA and CA DVM format support with programmable data output. The 1,000,000-pass head duty cycle handles high-volume daily use. Buyers needing contactless NFC or EMV chip capability should look at other devices, as this unit reads magnetic stripe only.
Keyboard wedge and USB interface
The dual keyboard wedge and USB interface determines whether this reader integrates with your existing terminal or PC. No additional drivers are required for keyboard wedge mode, while USB provides a direct serial connection. Verify your system accepts one of these two interfaces before purchasing.
Highlights
- Reads three tracks in either direction for flexible swiping
- Keyboard wedge and USB interfaces simplify system integration
- Compact 90 mm length fits tight counter spaces
- 1 000 000-pass head rating supports high-volume use
- Programmable data output matches custom application needs
Specifications
| Brand | ID TECH |
|---|---|
| Series | MiniMag Intelligent |
| Model | IDMB-334133BM |
| Type | MagStripe Reader |
| Interface | Keyboard wedge / USB |
| Color | Black |
| Read Speed | 3 to 60 IPS |
| Track | 1, 2 & 3 |
| Card Format | AAMVA, CA DVM |
| Head Duty Cycle (Passes) | 1,000,000 |
| Feature | The MiniMag intelligent reader delivers exceptional performance in brilliantly designed housing. It can read up to three tracks of magnetic stripe card data regardless of swiping direction or speed which increases usability. MiniMag's compact footprint is ideal for POS, security, loyalty and other applications where space is limited. The MiniMag is a fully programmable reader. Reader output format can be customized with user-friendly, Windows-based MagSwipe configuration utility. For example, after reading and validating card data, the unit can be programmed to parse the data, insert |
| Dimensions | 3.5" x 1.3" x 1.1" |
| Weight | 4.6 oz. |
| Shipping weight | 0.16 kg |
| Package size | 127 × 97 × 48 mm |
Questions about this item
Will the MiniMag IDMB-334133BM work with my older POS terminal that only has a PS/2 keyboard port?
Yes, the keyboard wedge interface connects between a PS/2 keyboard and the terminal, so the reader appears as keystrokes without extra drivers.
How do I know the reader captured the swipe correctly on the first try?
A beeper sounds and a three-colour LED flashes green to confirm a good read of tracks one, two and three.

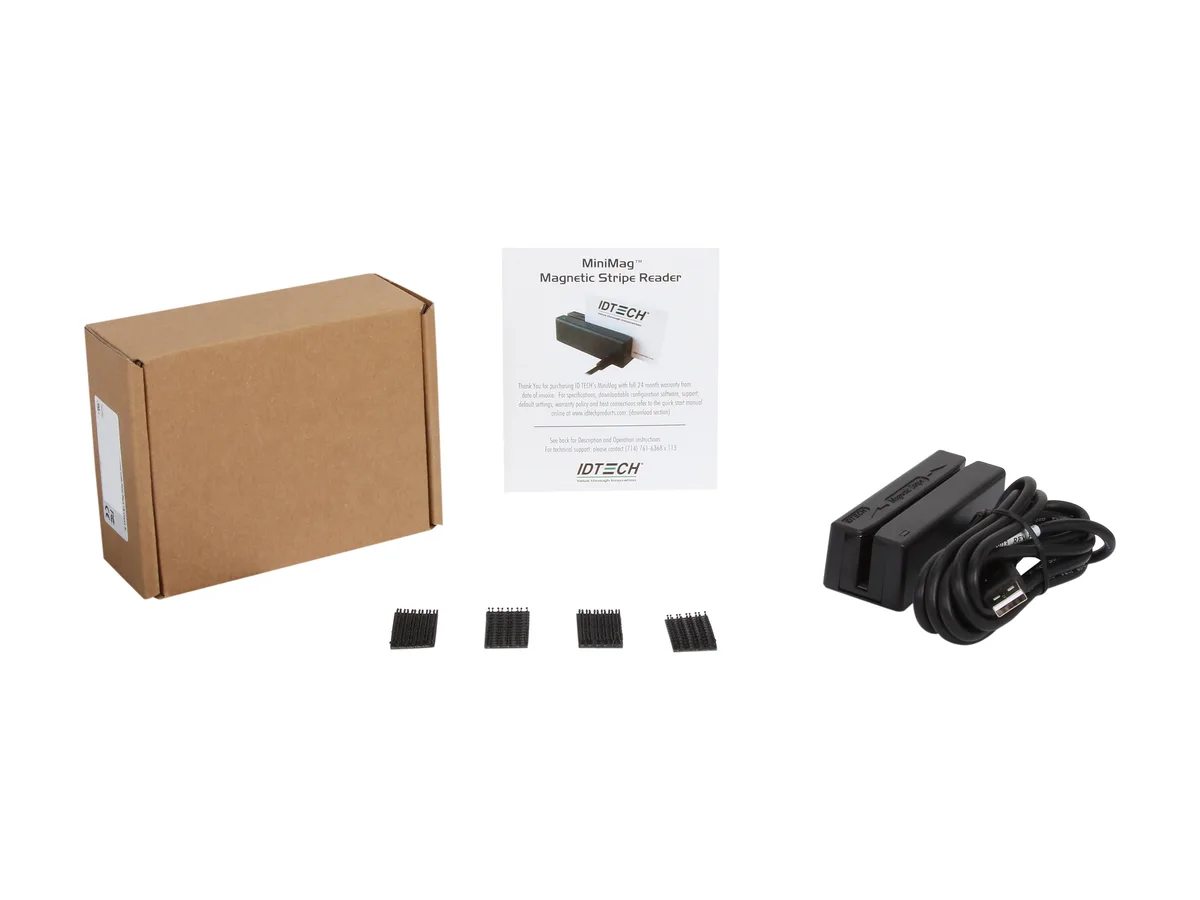

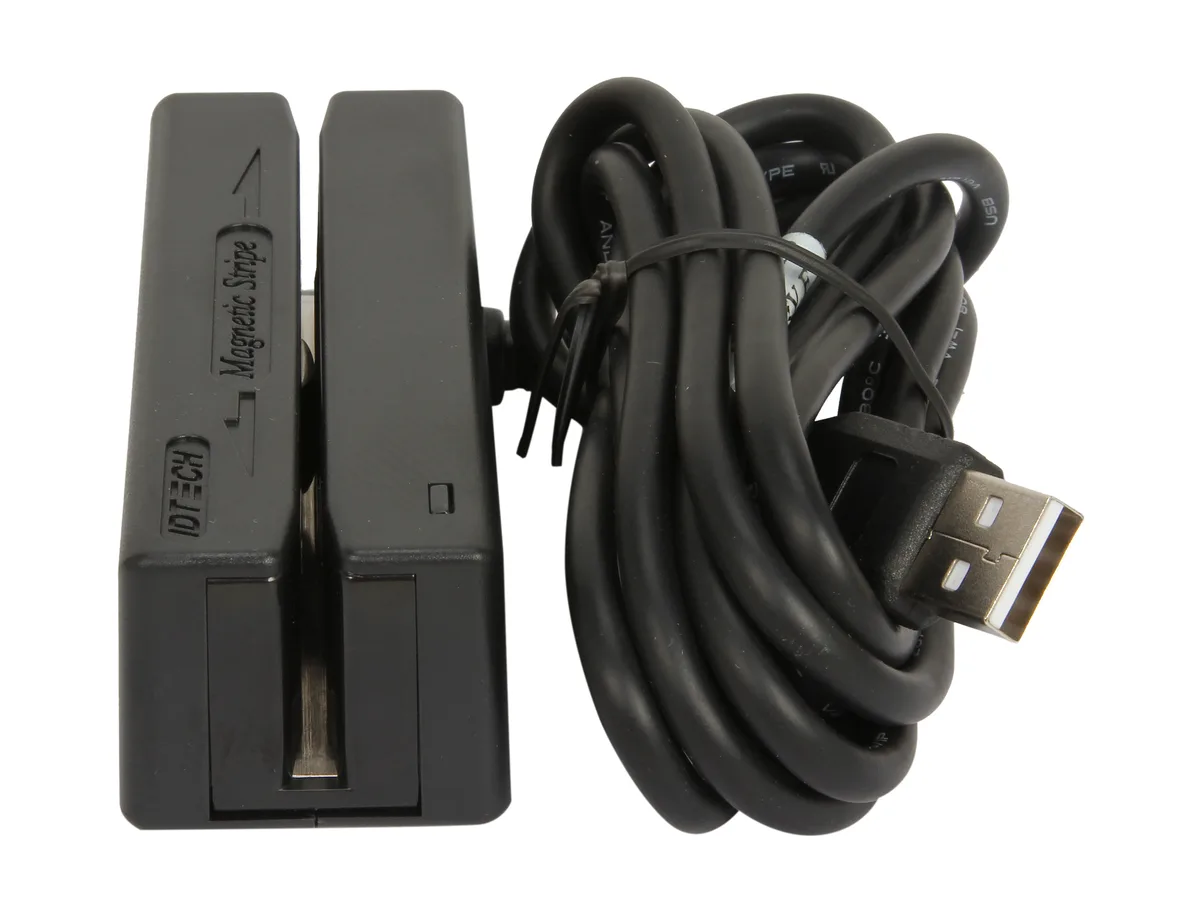

Does the box include a USB cable, or do I need to order one separately?
The reader ships with an attached USB cable for the USB interface; no separate cable is required for that connection.
