ICY DOCK
ICY DOCK ICYNano MB809U3-1M2B M.2 SATA drive enclosure
A pocket-sized enclosure that turns a single M.2 SATA SSD into a USB 3.2 Gen 1 external drive with tool-less installation
- ColorBlack
- SizeM.2
- TypeEnclosure
- AC AdapterNo
- MaterialABS
- Internal Interface1 x M.2 SATA SSD (2230/2242/2260/2280)
- Tool-less drive installation with patent-pending adjustable M.2 locker
- Fits M.2 SATA SSDs in 30mm, 42mm, 60mm and 80mm lengths
- USB 3.2 Gen 1 interface delivers up to 5Gbps transfer speed
- Pocket-size ABS enclosure weighs 0.11 lbs for ultra-portable use
- Blue LED shows power and drive activity at a glance
Compact M.2 SATA enclosure for on-the-go use
This pocket-sized case turns a single M.2 SATA stick drive into a bus-powered USB 3.2 Gen 1 external drive. It fits 2230, 2242, 2260 and 2280 lengths and weighs only .11 lbs. No AC adapter or tools are required.
Suits mobile backups, not PCIe drives
Users who want a lightweight, bus-powered way to read or clone SATA stick drives will find it convenient. Builders who need to access PCIe-based M.2 modules or require multiple bays should look at something else. The ABS shell and blue activity LED are built for portability.
Adjustable tool-less locker for 30 to 80 mm drives
A patent-pending sliding latch secures any supported M.2 SATA length without screws. This single mechanism decides whether your drive fits, so verify the drive is SATA before buying. A USB 3.2 Gen 1 Type C to A cable is included.
Highlights
- Tool-less drive installation with patent-pending adjustable M.2 locker
- Fits M.2 SATA SSDs in 30mm, 42mm, 60mm and 80mm lengths
- USB 3.2 Gen 1 interface delivers up to 5Gbps transfer speed
- Pocket-size ABS enclosure weighs 0.11 lbs for ultra-portable use
- Blue LED shows power and drive activity at a glance
Specifications
| Brand | ICY DOCK |
|---|---|
| Series | ICYNano |
| Model | MB809U3-1M2B |
| Color | Black |
| Size | M.2 |
| Type | Enclosure |
| AC Adapter | No |
| Material | ABS |
| Internal Interface | 1 x M.2 SATA SSD (2230/2242/2260/2280) |

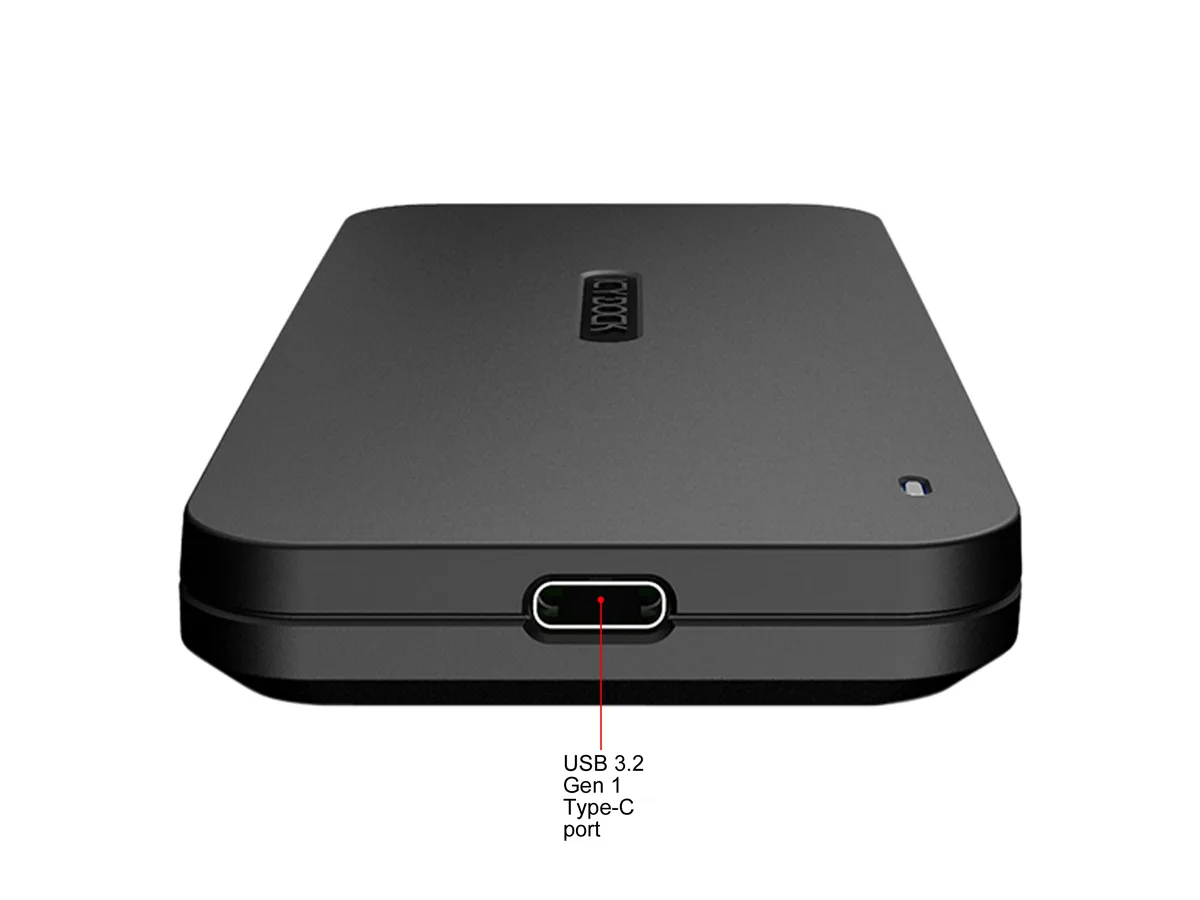

| External Interface | 1 x USB 3.2 Gen 1 |
| HDD Count Supported | Single SSD |
| Number of Bay | 1 |
| Fan | No |
| Power | Via USB |
| Specifications | Support Drive Size: 1 x M.2 SATA SSD (2230/2242/2260/2280) Host Interface: USB 3.2 Gen 1 Power Input: Via USB Transfer Rate: Up to 5Gb/s (Depending on hard drive speed) Structure / Material: ABS Plastic Product Dimension (L x W x H): 60 x 14 x 122.5mm Product Net Weight: 45g Drive Activity LED Indication: SSD power: solid blue; SSD access: flashing blue |
| Features | Fits 1x M.2 SATA SSD of all length - 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280) Patent-Pending adjustable M.2 locker for tool-less & screw-less drive installation process Lightweight, pocket-size, ultra-portable design Supports USB 3.2 Gen 1 Interface - Up to 5Gbps transfer speed Supports USB plug and play and backward compatible with USB 2.0 and 3.0 interfaces USB Type C to A Cable included Lightweight yet durable ABS plastic construction with anti-scratch round edges Soft-blue LED indicators for drive power and access activity |
| Dimensions | 2.36" x 0.55" x 4.82" |
| Weight | 0.11 lbs. |
| Package Contents | Device, user manual, USB 3.2 Gen 1 Type C to A cable |
| Shipping weight | 0.09 kg |
| Package size | 137 × 89 × 25 mm |
Questions about this item
How do I install an M.2 SATA SSD into the adjustable locker without screws?
Slide the drive into the slot, then move the patent-pending locker to the matching notch for 30, 42, 60 or 80 mm length; it locks tool-free.
What upkeep will the enclosure need over time?
No fan or replaceable parts exist; only the USB 3.2 Gen 1 Type C to A cable may wear out and need swapping.
What limits transfer speed first during long copies?
The USB 3.2 Gen 1 link caps sustained throughput at 5 Gbps, so a fast SATA SSD will hit that ceiling before the drive does.
