ICC Data 6 CAT6 Switch Module 8 Port 250MHz PoE++ 100W UL Listed Push-Pin Mount Fits 14 21 28 Enclosures
Eight-port CAT6 module delivers 250 MHz performance with PoE++ up to 100 W for IP cameras and access points
- SpecificationsPush Pins PCB, 250 MHz, ethernet, Data 6, ICC, 3 L x 2 W x 7
- FeaturesPush Pins PCB, ethernet, 250 MHz
- 8 data lines via non-bridged CAT6 IDC punch-down ports
- 10 dB headroom at 250 MHz exceeding ANSI/TIA-568.2-D
- PoE++ rated up to 100 W for IP cameras and access points
- Push-pin mount fits ICC 14, 21 and 28 inch enclosures
- UL Listed for safe residential networking installations
ICC Data 6 8-Port CAT6 Switch Module

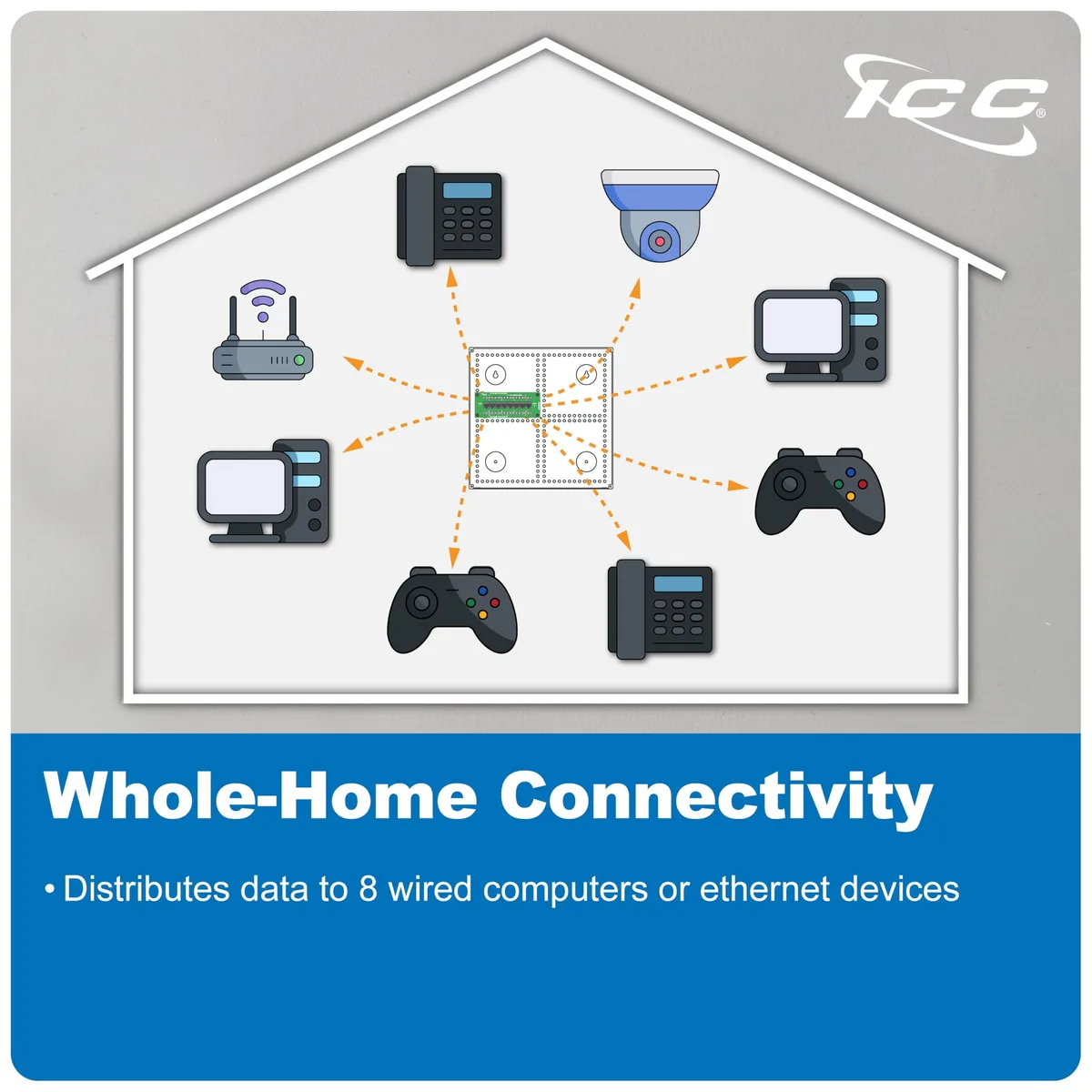

This ICC Data 6 module provides eight non-bridged CAT6 IDC punch-down ports for Ethernet distribution inside a structured wiring enclosure. It is designed for installers and homeowners building a central data hub for residential or light-commercial networks.
250 MHz certified with 10 dB headroom
The board exceeds ANSI/TIA-568.2-D requirements, delivering verified performance at 250 MHz with 10 dB of margin. This single specification confirms the module can handle gigabit speeds and PoE++ loads across all eight ports simultaneously.

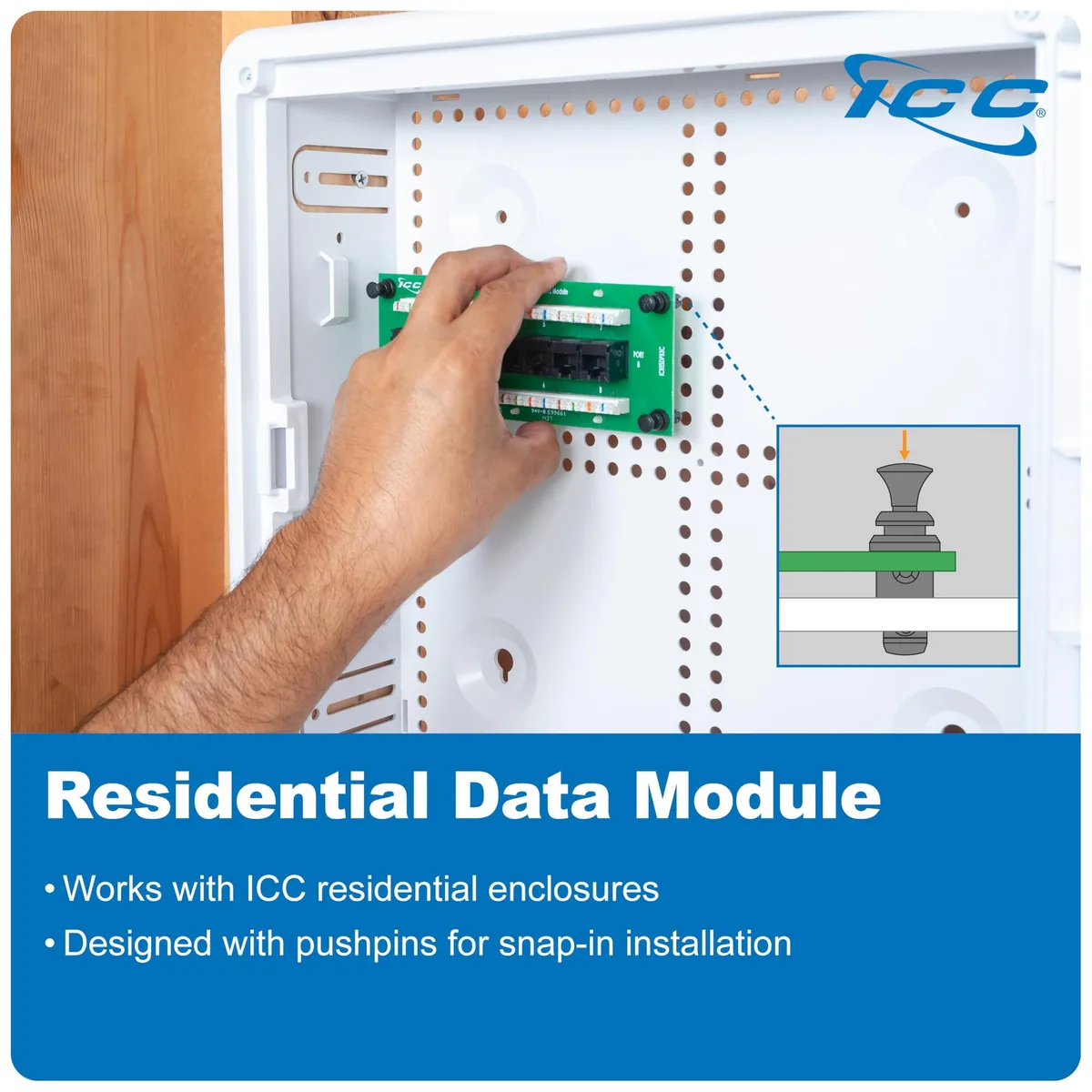

Push-pin mount fits 14, 21 and 28 inch enclosures
Quick push-pin installation secures the module in ICC 14, 21 and 28 inch enclosures and works with most major-brand cabinets. UL listing and a 100 W PoE++ rating free up separate power injectors for cameras, access points and smart devices.
Highlights
- 8 data lines via non-bridged CAT6 IDC punch-down ports
- 10 dB headroom at 250 MHz exceeding ANSI/TIA-568.2-D
- PoE++ rated up to 100 W for IP cameras and access points
- Push-pin mount fits ICC 14, 21 and 28 inch enclosures
- UL Listed for safe residential networking installations
Specifications
| Brand | ICC |
|---|---|
| Model | Data 6 |
| Part Number | ICRESDPB3C |
| Specifications | Push Pins PCB, 250 MHz, ethernet, Data 6, ICC, 3 L x 2 W x 7 H inches, Protected by ICC 3-Year Limited Product Warranty |
| Features | Push Pins PCB, ethernet, 250 MHz |
Questions about this item
What does the 250 MHz rating mean for my network?
The board provides 10 dB headroom at 250 MHz, exceeding ANSI/TIA-568.2-D for reliable CAT6 Ethernet performance.
What does the PoE++ 100 W rating cap in practice?
It supports up to 100 W Power over Ethernet for IP cameras, access points, and smart devices.
Which enclosures does the push-pin mount fit?
It fits ICC 14", 21", and 28" structured wiring enclosures and works with most major brands.
