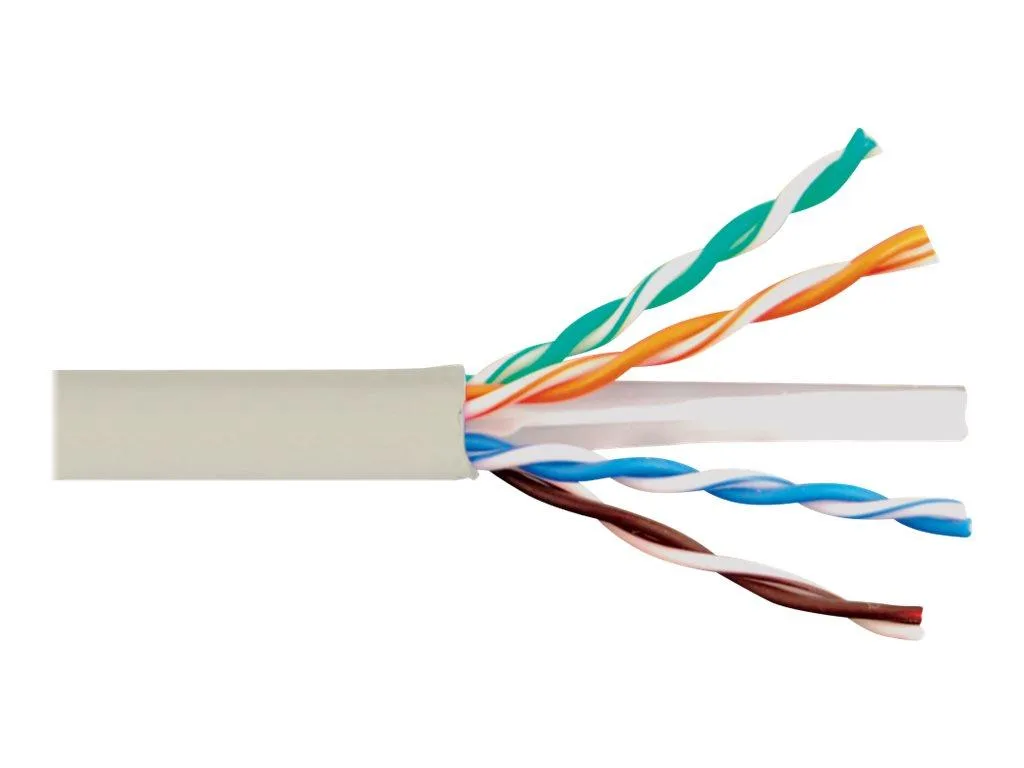

White CAT6e CMR PVC cable on spool in pull-box carton, 23 AWG solid copper, 1000 ft

ICC

ICC CAT6e CMR PVC Cable White 23 AWG 1000 ft

SKU CH-8M7E-TSRRD

CMR-rated PVC cable with 23 AWG solid copper conductors supplied in a 1000 ft pull-box for voice, data, video and security runs

  • SpecificationsCAT6e CMR PVC CABLE WHITE
  • Meets TIA 568-C.2 industry standard for reliable installations
  • UL and cUL listed for verified safety compliance
  • 23 AWG solid bare copper conductors ensure strong signal
  • 1000 ft pull box with footage markings simplifies measurement
  • CMR rated PVC jacket suits commercial and residential runs

ICC CAT6e CMR PVC Cable 1000 ft

This ICC CAT6e CMR PVC cable comes in a 1000 ft pull box with sequential footage markings. It uses 23 AWG solid bare copper conductors in a four-pair twisted construction. The white PVC jacket is CMR rated for riser installations. It suits commercial and residential voice, data, video and security runs.

TIA 568-C.2 UL cUL limits

The cable is manufactured to the TIA 568-C.2 standard and carries UL and cUL listings. CMR rating restricts use to vertical riser and general horizontal spaces, not plenum air-handling areas. PVC jacket material does not meet low-smoke plenum requirements. Performance is verified for the specified category distance limits.

Upgrades from older category cable

This cable replaces Category 5 or 5e UTP where higher bandwidth headroom is needed for modern voice, data, video and security applications. The jump is worth it when existing infrastructure cannot support current application demands. Installers who need plenum-rated cable must choose a CMP version instead.

Highlights

  • Meets TIA 568-C.2 industry standard for reliable installations
  • UL and cUL listed for verified safety compliance
  • 23 AWG solid bare copper conductors ensure strong signal
  • 1000 ft pull box with footage markings simplifies measurement
  • CMR rated PVC jacket suits commercial and residential runs

Specifications

BrandIcc
ModelICC-ICCABR6E-WH
SpecificationsCAT6e CMR PVC CABLE WHITE

Questions about this item

Should I choose this 1000 ft spool or a shorter length?

The 1000 ft spool comes in a pull-box carton with sequential footage markings so you can measure exact runs without waste.

What does the 600 figure mean for installed performance?

The 600 MHz rating indicates the cable is tested to handle high-frequency signals up to that level, supporting demanding voice, data, video and security applications.

Is the CMR rating the limiting factor for where I can run this cable?

CMR (riser) rating means the cable is UL and cUL listed for vertical runs between floors in non-plenum spaces, meeting the TIA 568-C.2 standard for commercial and residential installs.
