IBM 7316-TF3 1U rackmount 17 inch LCD console drawer

IBM

IBM 7316-TF3 1U 17" LCD KVM Console Kit

SKU CH-46J0-8E3M6 MPN 7316-TF3

A 1U rack-mount 17-inch LCD console kit with 1280 x 1024 resolution that supports single-point control of up to 64 servers via an optional NetBAY LCM Switch

  • TypeD-Sub
  • Space-saving 1U rack height fits dense server cabinets
  • 17-inch LCD delivers 1280 x 1024 resolution for clear server management
  • Supports NetBAY LCM Switch 4202 controlling up to 64 servers
  • Single D-Sub video input simplifies cabling to target systems
  • 1-inch width matches standard 19-inch rack mounting dimensions

Rack-mount LCD console kit

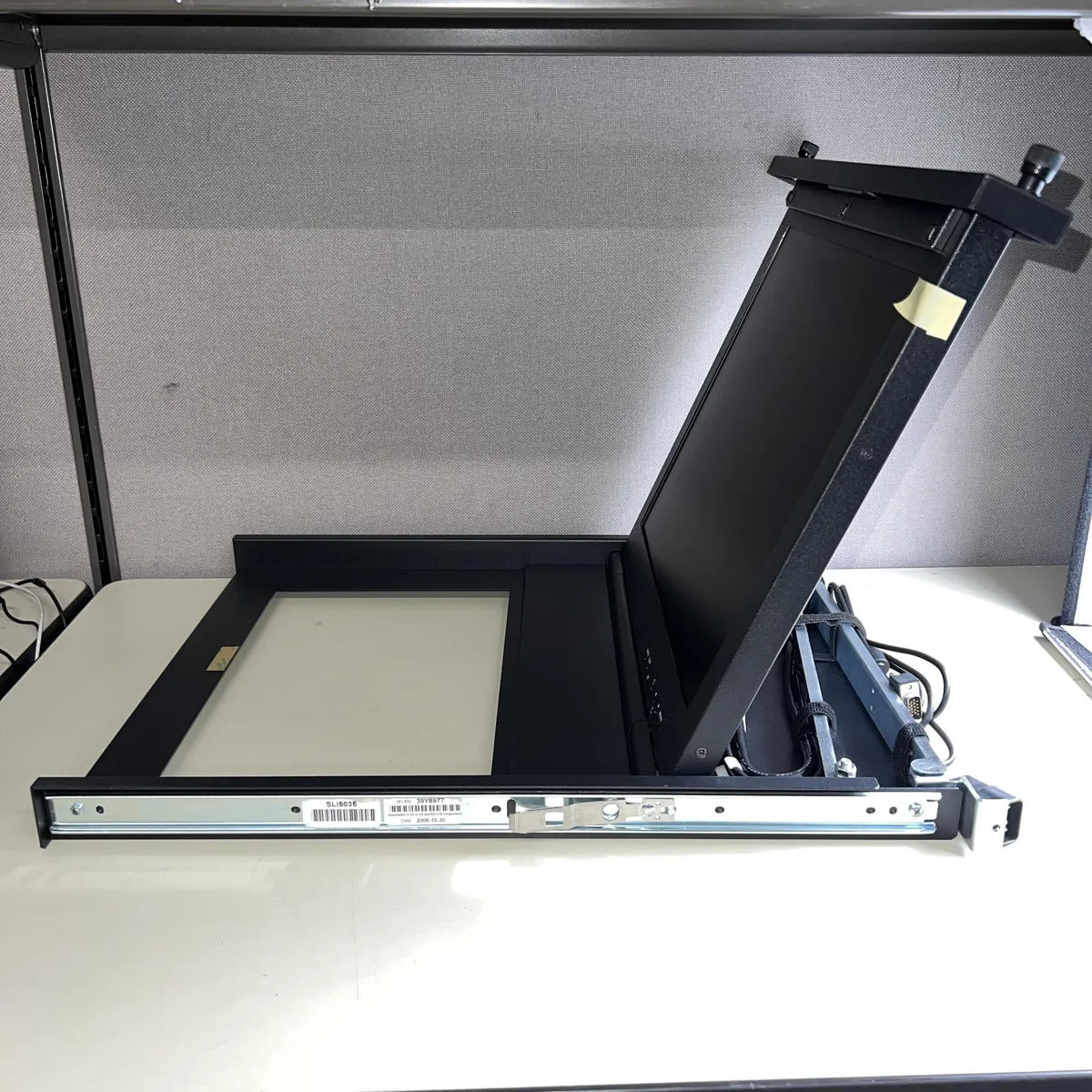

The IBM 7316-TF3 is a 1U rack-mount console kit with an integrated 17-inch LCD panel. It fits a standard 19-inch rack and provides local server access in a compact drawer format. The unit ships new and includes the flat panel monitor rack-mount hardware.

Suited for single-console server rooms

This kit serves administrators who need a space-saving console for direct rack access to servers. It supports the NetBAY LCM Switch for controlling up to 64 servers from one console. Buyers who require an integrated keyboard or a higher native panel resolution should consider other options.

1280 x 1024 native resolution

The built-in 17-inch LCD delivers a native resolution of 1280 x 1024. The optional NetBAY LCM Switch (#4202) extends the maximum video resolution to 1600 x 1280 across connected servers. Video connection to the console uses a D-Sub interface.

Highlights

  • Space-saving 1U rack height fits dense server cabinets
  • 17-inch LCD delivers 1280 x 1024 resolution for clear server management
  • Supports NetBAY LCM Switch 4202 controlling up to 64 servers
  • Single D-Sub video input simplifies cabling to target systems
  • 1-inch width matches standard 19-inch rack mounting dimensions

Specifications

TypeD-Sub

Questions about this item

How can I verify the 17" LCD is displaying correctly after rack installation?

Power on the unit and confirm the panel shows a stable 1280 x 1024 image with no dead pixels; the 1U drawer should slide smoothly and lock in the 19-inch rack.

Which accessories ship with the 7316-TF3 kit and what must I source separately?

The kit includes the 17" LCD drawer and mounting hardware for a 19-inch rack; a keyboard is not included and must be purchased separately, along with any KVM cables or the NetBAY LCM Switch #4202 for multi-server control.

Should I choose the base console or add the NetBAY LCM Switch #4202 for my server count?

The base console controls one server directly; adding the NetBAY LCM Switch #4202 expands single-console access to up to 64 servers with a maximum video resolution of 1600 x 1280.
