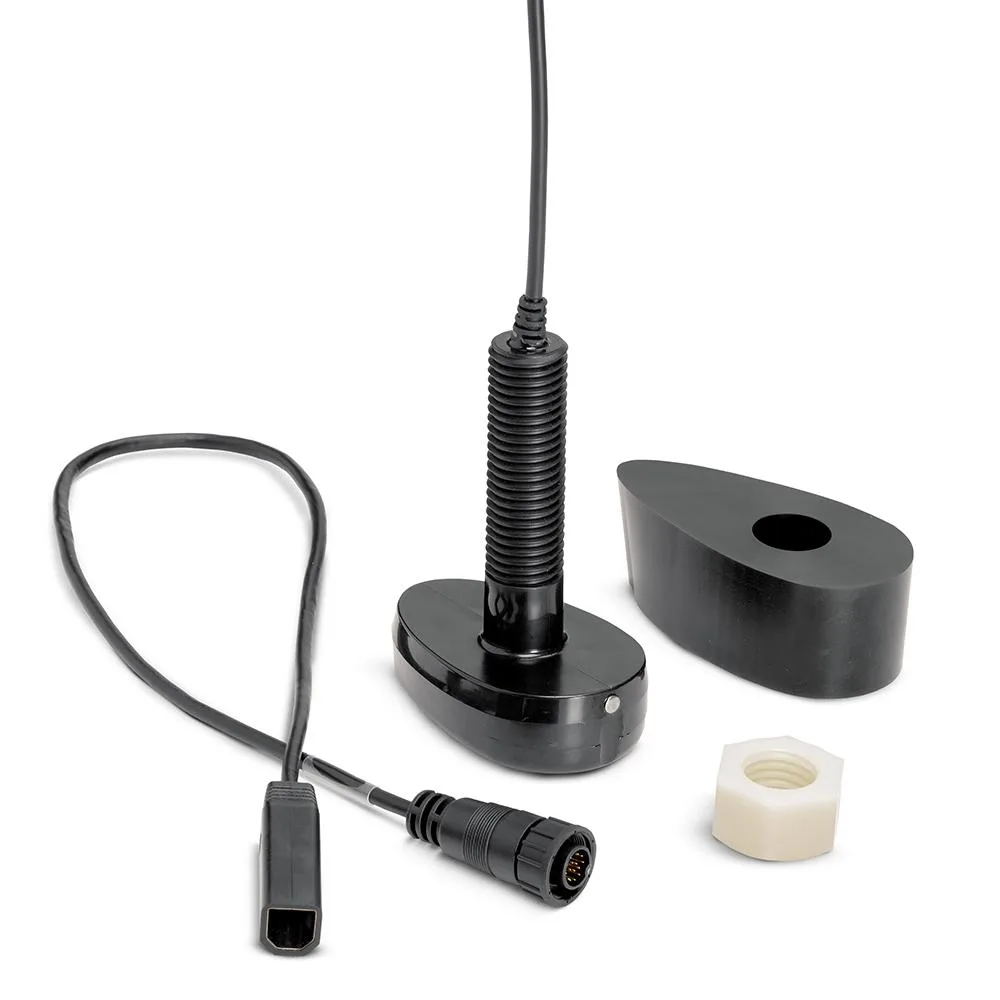

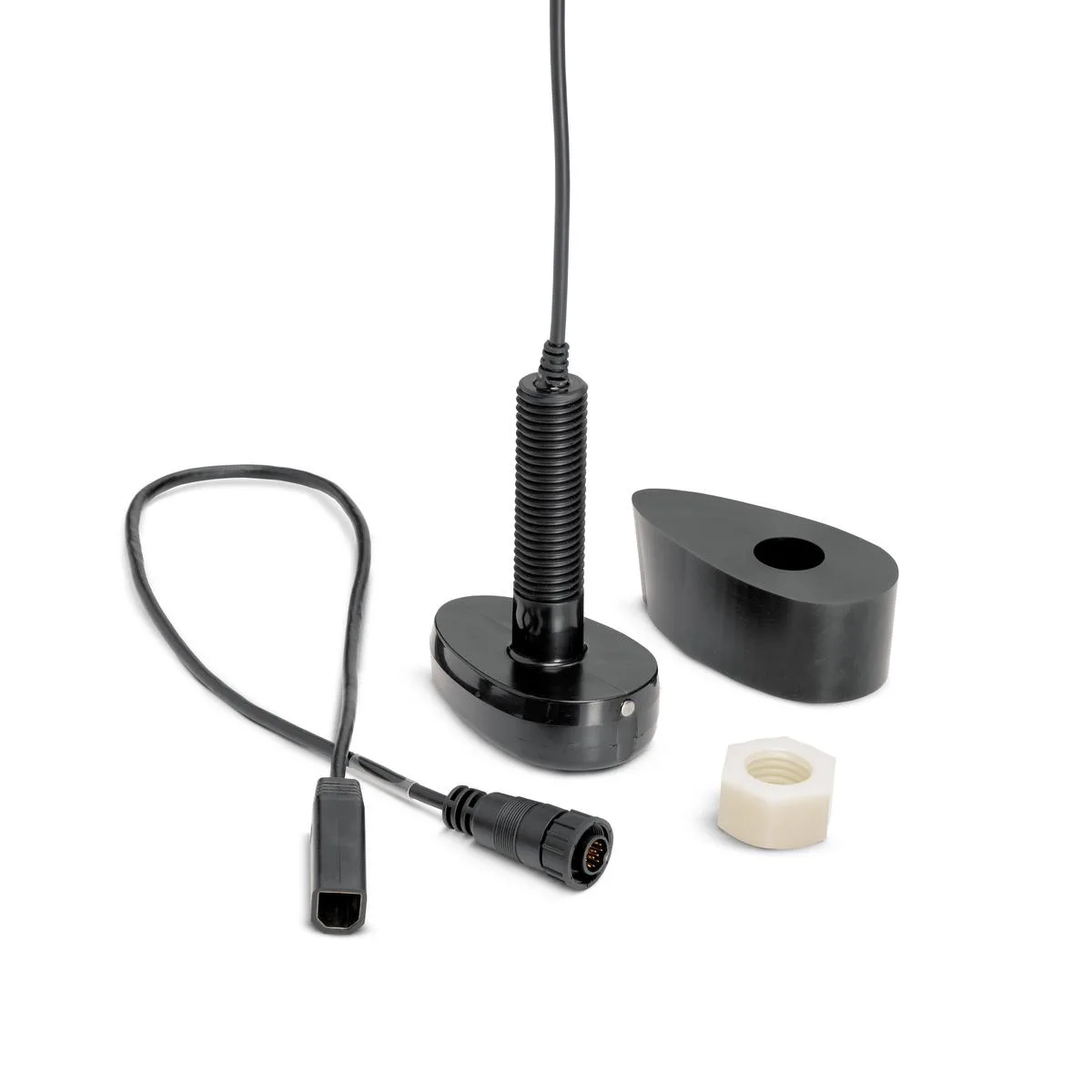

White plastic thru-hull transducer with 30' cable

HUMMINBIRD

Humminbird XPTH-9-HW-T Plastic Thru-Hull Transducer 710279-1

SKU CH-K5VR-QTMWD

Plastic thru-hull transducer delivers Dual Spectrum CHIRP 2D sonar at 150-220 kHz with 1200 ft depth capability and built-in temperature sensor

  • GenderUnisex
  • Dual Spectrum CHIRP 2D sonar with 150-220 kHz range
  • Wide 140-200 kHz cone angle for broad coverage
  • Narrow 180-240 kHz beam for detailed targets
  • Built-in temperature sensor adds water-temp data
  • 30 ft cable and 1200 ft max depth for deep water

Product Identity

The Humminbird XPTH-9-HW-T is a plastic thru-hull transducer designed for Humminbird HELIX fish finders. It delivers Dual Spectrum CHIRP 2D sonar with a built-in temperature sensor and a thirty-foot cable.

Compatibility Guidance

This transducer suits owners of compatible HELIX 5, 7, 8, 9, 10, 12 CHIRP G2, G2N, G3 and G3N GPS models, plus ICE HELIX CHIRP G2 units in open water mode. It is not for anglers who need Side Imaging or Down Imaging capability, as the unit supports 2D sonar only.

Installation Checks

Verify that your HELIX model appears in the supported list and that you require a thru-hull mounting style. Confirm the thirty-foot cable reaches your display location and that the 150-220 kHz CHIRP range matches your fishing depth needs up to twelve hundred feet.

Highlights

  • Dual Spectrum CHIRP 2D sonar with 150-220 kHz range
  • Wide 140-200 kHz cone angle for broad coverage
  • Narrow 180-240 kHz beam for detailed targets
  • Built-in temperature sensor adds water-temp data
  • 30 ft cable and 1200 ft max depth for deep water

Specifications

GenderUnisex

Questions about this item

Which Humminbird display must I already own to connect this XPTH-9-HW-T transducer?

Compatible displays include HELIX 5 CHIRP G2 GPS models, HELIX 7 CHIRP G2/G3 GPS and CHIRP DI G2 models, all HELIX 7/8/9/10/12 CHIRP G2N/G3N models, and ICE HELIX CHIRP G2 units in open-water mode.

Can this transducer add Side Imaging or Down Imaging to my existing HELIX unit?

No, the XPTH-9-HW-T provides Dual Spectrum CHIRP 2D sonar only; Side Imaging and Down Imaging units accept it as a 2D transducer but gain no imaging capability from it.

How do I verify the built-in temperature sensor is reporting correctly after installation?

Observe a stable water-temperature reading on the sonar screen and confirm depth returns reach the rated 1200 ft (365 m) maximum with the 150-220 kHz full-range CHIRP band active.
