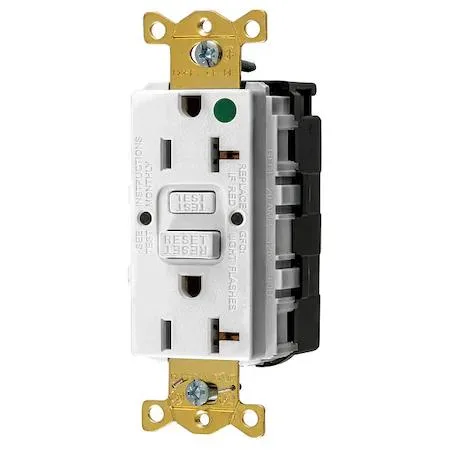

White rectangular GFCI receptacle with two decorator slots and ground hole

Hubbell Incorporated

Hubbell SNAPGF83W GFCI Receptacle 20A 125V White

SKU CH-87X6-QQ1NY

20 A, 125 V GFCI-protected duplex receptacle in white nylon for flush mounting

  • Length3.250
  • TypeWiring Devices
  • GFCI protection stops shock hazards
  • 20 A rating handles heavy-duty circuits
  • 125 V AC suits standard commercial wiring
  • Hospital-grade build meets strict medical codes
  • Back-wire modular connection speeds installation

20A Hospital-Grade GFCI Receptacle

This Hubbell SNAPGF83W is a 20A, 125V AC ground-fault circuit interrupter built to hospital-grade specifications. It features a white nylon housing, a decorator duplex face, and a single-gang flush-mount design. The device is rated for a 1 hp motor load and uses a back-wired modular connection method. It is intended for commercial and institutional wiring projects requiring enhanced protection.

NEC-Compliant 5-20R Configuration Limits

The receptacle conforms to NEMA 5-20R configuration and NEC standards with a NEMA Type 1 enclosure rating. It provides two-pole, three-wire, single-phase grounded and polarized connections. The straight orientation and lack of an included cover plate define its installation profile. AFCI protection is not integrated into this device.

Verify Circuit Amperage and Box Compatibility

Before ordering, confirm the branch circuit is rated for 20A service with appropriate 12 AWG conductors. Ensure the existing wall box accommodates a single-gang decorator device with back-wiring access. The modular wiring system requires compatible connectors not supplied with the receptacle.

Highlights

  • GFCI protection stops shock hazards
  • 20 A rating handles heavy-duty circuits
  • 125 V AC suits standard commercial wiring
  • Hospital-grade build meets strict medical codes
  • Back-wire modular connection speeds installation

Specifications

BrandHUBBELL
Length3.250
TypeWiring Devices

Questions about this item

Which GFCI receptacle rating should I select for a 20 A branch circuit?

Choose the 20 A, 125 V AC model; it is rated for a 20 A single-phase circuit and carries a 1 hp motor load rating.

What does the 20 A current rating mean when the device is installed?

It will supply up to 20 A continuously to connected equipment and trip the ground-fault protection within Class A limits if leakage exceeds the threshold.

How does the modular wiring interface affect installation?

The back-wired modular connection accepts solid or stranded conductors and locks them in place without screw terminals, speeding up rough-in on a flush-mounted box.
