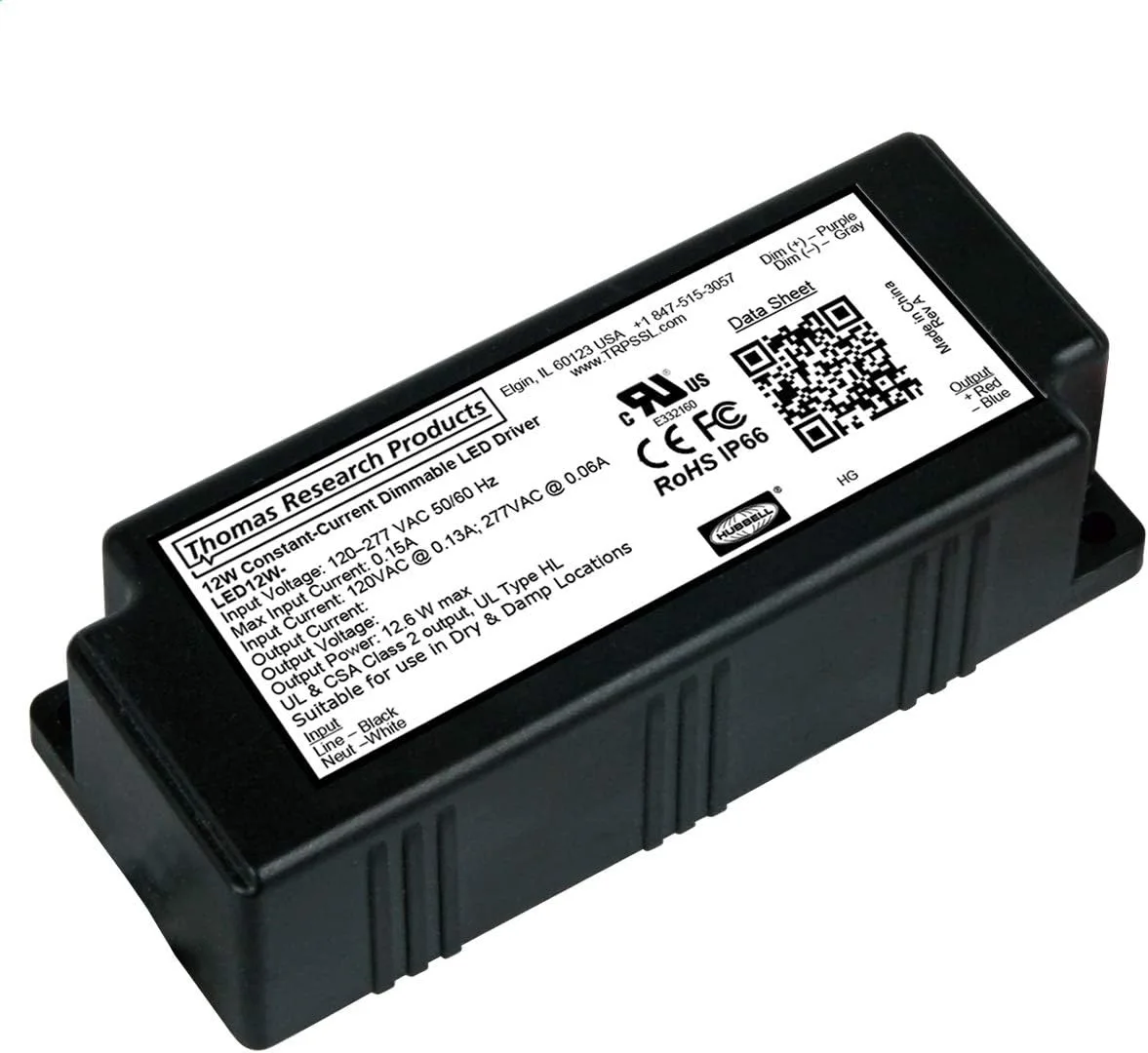

Compact black plastic LED driver housing, IP66 rated

Hubbell Incorporated

Hubbell LED12W-24-C0500 12W Constant Current Ballast

SKU CH-AN9G-FD4DK

Constant-current LED driver delivering 500 mA at 12-24 Vdc with 12 W maximum output, 100-277 Vac input, high power factor, UL dry/damp rating and IP66 housing

  • Wide input range 90–305 V AC suits many supplies
  • Constant 500 mA output keeps LEDs stable
  • 12 W maximum power handles typical loads
  • IP66 rating resists dust and water jets
  • UL rated for dry and damp locations

Constant Current LED Driver

The Hubbell LED12W-24-C0500 is a 12 watt Switch Mode LED driver designed for indoor lighting applications. It delivers a fixed 500 mA output current across a 12 to 24 Vdc range. The unit carries UL Dry and Damp Location ratings and an IP66 enclosure rating for moisture resistance. It suits installers needing a compact constant-current power supply.

Input Voltage Range Limits

The driver accepts a nominal input range of 100 to 277 Vac with an absolute minimum to maximum window of 90 to 305 Vac. Operation outside this window is not supported by the design. The High Power Factor circuitry helps maintain efficient current draw across the supported voltages. Installers must verify the site supply stays within these specified limits.

Fixed 500 mA Output Current

The single specification that determines compatibility is the constant 500 mA output current. LED modules or arrays must be rated for exactly this drive current to operate correctly. The 12 watt maximum output power and 12 to 24 Vdc compliance voltage define the usable load range. Buyers whose luminaires require a different drive current or higher total power cannot use this driver.

Highlights

  • Wide input range 90–305 V AC suits many supplies
  • Constant 500 mA output keeps LEDs stable
  • 12 W maximum power handles typical loads
  • IP66 rating resists dust and water jets
  • UL rated for dry and damp locations

Specifications

BrandHubbell

Questions about this item

Is the LED12W-24-C0500 the right driver for a 500 mA LED array?

Yes, this model delivers a fixed 500 mA output current with a 12–24 Vdc output range and a 12 W maximum power rating.

What does the 12 W rating mean for my fixture?

It is the maximum power the driver can supply; your LED load must not exceed 12 W within the 12–24 Vdc window.

What input voltage range does the driver accept and what limits the output?

It accepts 90–305 Vac (100–277 Vac nominal) and regulates a constant 500 mA up to 24 Vdc, capped at 12 W.
