Gray wall-switch motion sensor with PIR lens, 1200 sq ft coverage

Hubbell Incorporated

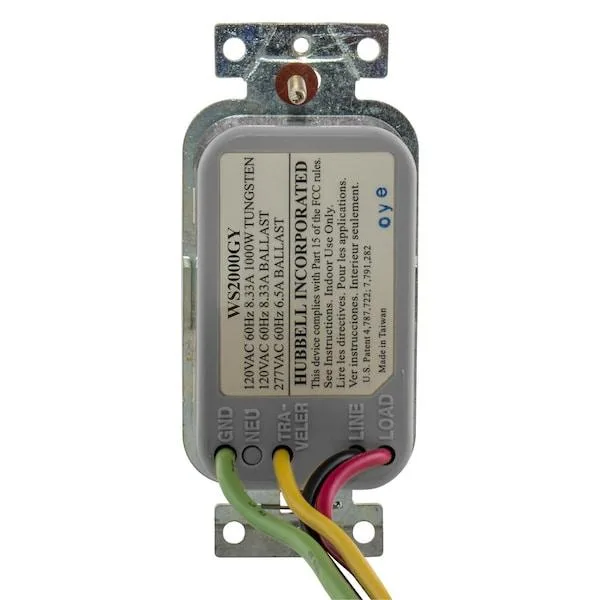

Hubbell Incorporated WS2000GY Occupancy/Vacancy Sensor PIR 1200 sq ft

SKU CH-5RNY-93RKP

Passive infrared sensor covers 1200 sq ft with adjustable 20 sec to 30 min delay and operates on 120V or 277V AC

  • PIR motion detection covers 1200 square feet
  • Adjustable time delay from 20 seconds to 30 minutes
  • Dual-voltage operation at 120V and 277V AC
  • Wall-switch box installation for simple retrofit
  • Neutral gray finish blends with commercial interiors

Hubbell PIR Occupancy Sensor

The Hubbell WS2000GY is a passive infrared motion sensor designed for lighting control in commercial and residential spaces. It fits a standard wall switch box and provides hands-free operation for areas up to 1200 square feet. The unit supports both occupancy and vacancy sensing modes for energy savings. It operates on 120V AC or 277V AC hardwired connections.

Installation and Common Issues

The sensor mounts in a standard wall switch box and connects via hardwired terminals for 120V or 277V circuits. A neutral wire connection is required for the dimming and sensing circuitry to function. The time delay adjusts manually from 20 seconds to 30 minutes using an onboard control. Incorrect line voltage selection or missing neutral wires are the most frequent wiring errors.

1200 sq ft PIR Coverage

Passive infrared technology detects motion across 1200 square feet at the suggested mounting height. The sensor requires a clear line of sight and cannot detect movement through walls, glass, or solid obstacles. It is not suited for areas requiring longer range detection or dual-technology verification. Spaces exceeding this coverage area will need additional sensors.

Highlights

  • PIR motion detection covers 1200 square feet
  • Adjustable time delay from 20 seconds to 30 minutes
  • Dual-voltage operation at 120V and 277V AC
  • Wall-switch box installation for simple retrofit
  • Neutral gray finish blends with commercial interiors

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS

Questions about this item

How do I verify the sensor is detecting motion correctly after installation?

Walk through the 1200 sq ft coverage area; the connected load should activate within the 20 sec to 30 min delay window you set manually.

What comes in the box and what must I supply separately?

The sensor unit is included; you must provide a standard wall switch box, 120V or 277V AC wiring, and a compatible cover plate.

Which time-delay setting should I choose for a typical office?

Start near the middle of the 20 sec to 30 min range and adjust manually until lights stay on during normal occupancy without lingering too long.
