Blue zinc-plated steel cord connector, straight form factor

Hubbell Incorporated

Hubbell Incorporated SHC1023ZP Wire Cap Connector Blue

SKU CH-M32N-6QTM0

Zinc-plated steel liquid-tight cord connector for 0.38–0.50 in cables with 1/2 in MNPT box connection

  • Color/FinishBlue
  • Color MappingBlue
  • MaterialHAWA
  • TypeWire Connectors
  • Liquid-tight seal protects cables
  • Cord diameter range .38 to .50 inch
  • 1/2 inch MNPT box connection fits standard fittings
  • Zinc-plated steel body resists corrosion
  • CSA LR27378 and UL E54218 listed

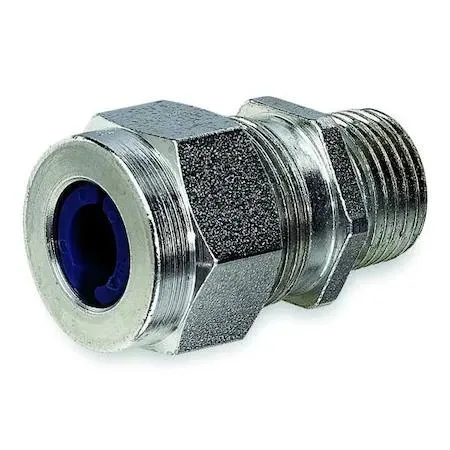

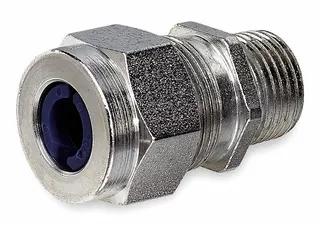

Blue Liquid-Tight Cord Connector

The Hubbell SHC1023ZP is a straight, liquid-tight cord connector finished in blue with a silver zinc-plated steel body. It accepts a single cord with a diameter range of .38 in to .50 in and threads into a 1/2 in MNPT box connection. The gland colour code matches the blue finish for quick identification. No external strain relief is fitted and the connector is not insulated.

Compatibility Check

Verify that the cord diameter falls between .38 in and .50 in before ordering. Confirm the enclosure provides a 1/2 in MNPT threaded entry. Ensure the application does not require an insulated throat or external strain relief, as neither is present. The overall length from box face to connector end is 1 3/16 in, so check available internal clearance.

Suitable Applications

This connector suits installers needing a CSA LR27378 and UL E54218 listed fitting for single-cord entry in dry or damp locations. It is not for buyers who need insulated throats, external strain relief, multi-cord entry, or a different thread size or cord range.

Highlights

  • Liquid-tight seal protects cables
  • Cord diameter range .38 to .50 inch
  • 1/2 inch MNPT box connection fits standard fittings
  • Zinc-plated steel body resists corrosion
  • CSA LR27378 and UL E54218 listed

Specifications

BrandHubbell Wiring Device-kellems
Color/FinishBlue
Color MappingBlue
MaterialHAWA
TypeWire Connectors

Questions about this item

Does the SHC1023ZP connector arrive with any extra cords or fittings, or must those be purchased separately?

The package contains the single straight zinc-plated steel connector with a blue gland; cords and any additional fittings are not included and must be sourced separately.

How do I know whether the 0.38 in to 0.50 in cord-diameter range suits my cable?

Measure your cable’s outer diameter; if it falls between .38 and .50 inches the SHC1023ZP will accept it, otherwise choose a different gland size.

What does the 1/2 in MNPT box connection mean when I install the connector in a real enclosure?

It threads directly into a standard 1/2 inch NPT female opening on the box, giving a liquid-tight seal without extra adapters.
