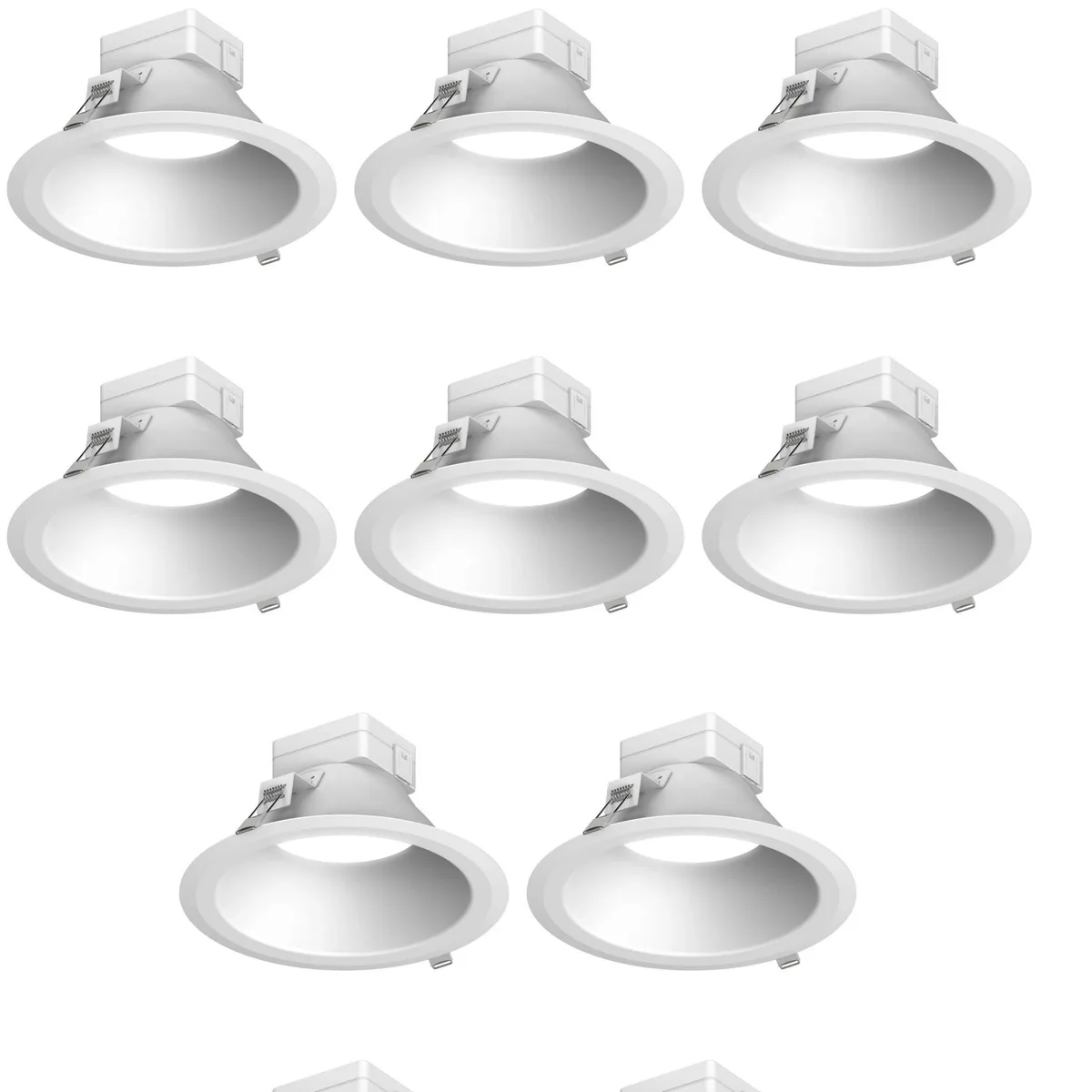

White round recessed LED downlight with matte white trim

Hubbell Incorporated

Hubbell Incorporated recessed lighting

SKU CH-96AM-10QQ5

A case of eight 4-inch round LED downlights with selectable colour temperature (3500K, 4000K, 5000K), selectable output (750, 1100 or 1500 lumens), 90+ CRI and 0-10V dimming on 120-277V

  • voltage120
  • typeLED
  • Tool-free single-piece design speeds installation

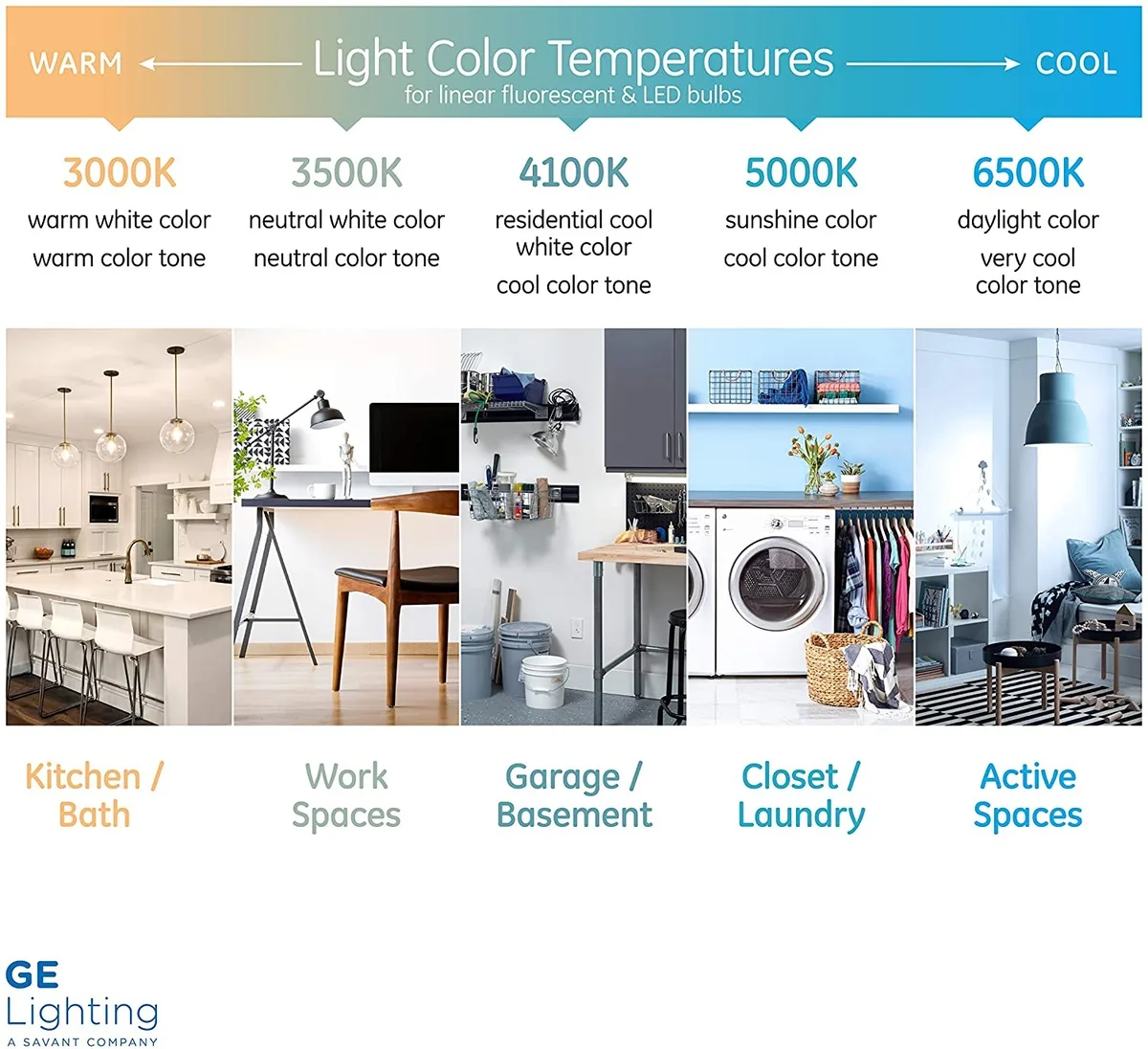

  • Switchable 3500K, 4000K or 5000K colour temperature
  • Three lumen settings 750, 1100 or 1500 for flexible output
  • 90+ CRI renders colours accurately
  • 0-10V dimming on 120-277V supply

Product identity and fit

The Prescolite LiteBox Standard is a four-inch round LED downlight sold in a case of eight. It suits commercial and residential projects that need a single colour temperature and lumen output chosen at install time.

Selectable output and dimming

A three-position switch sets the colour temperature to 3500K, 4000K or 5000K while a second switch selects 750, 1100 or 1500 lumens. The driver accepts 120-277V and supports 0-10V dimming down to 10 percent. Colour rendering stays above 90 CRI at every setting.

Installation notes and common issues

The single-piece housing mounts without tools and is rated for wet locations and covered ceilings. Allow enough plenum depth for the integral driver. Verify that the 0-10V control wiring is separate from line voltage to avoid dimming faults.

Highlights

  • Tool-free single-piece design speeds installation
  • Switchable 3500K, 4000K or 5000K colour temperature
  • Three lumen settings 750, 1100 or 1500 for flexible output
  • 90+ CRI renders colours accurately
  • 0-10V dimming on 120-277V supply

Specifications

BrandPrescolite
voltage120
typeLED

Questions about this item

What maintenance or replacement will the LED module need over its service life?

The sealed LED module is not user-replaceable; the entire downlight is replaced when output degrades or the driver fails.

Which limit appears first during continuous operation — thermal protection or lumen depreciation?

Thermal protection engages if the driver overheats, reducing output until the fixture cools.

How much heat and noise does the fitting produce during all-day operation?

The unit runs silently with no fan; heat is dissipated through the aluminium housing and stays within wet-location ratings.
