Hubbell Incorporated Prescolite 6 inch Square LED Downlight 1100 lumens 13 watts
A 6-inch square LED downlight delivering 1100 lumens at 13 watts with selectable colour temperatures of 2700K, 3000K, 3500K or 4000K and 90+ CRI
- Voltage120
- Watts13
- Selectable 2700K–4000K CCT suits any space
- 90+ CRI with R9 >50 renders colours accurately
- 1100 lumens at 13 watts delivers efficient brightness
- Flicker-free 0-10V, Triac or ELV dimming to 5%
- Installs in 3.5 inch plenum without recessed housing
6 inch Square LED Downlight
This 6 inch square LED downlight delivers 1100 lumens at 13 watts with selectable colour temperatures of 2700K, 3000K, 3500K, and 4000K. It suits commercial and residential projects needing a low-profile fixture with 90+ CRI and R9 greater than 50. The durable cast aluminium trim fits both IC and non-IC rated installations. It is not for buyers who need a round aperture or a fixture requiring a pre-existing junction box.
Sustained operation
The edge-lit design operates on 120-277V with 0-10V dimming to off or 120V Triac and ELV phase-cut dimming to 5%. Flicker-free performance is maintained across the dimming range during continuous use. The remote driver junction box separates heat-sensitive electronics from the trim for consistent output. It does not serve installations limited to line-voltage dimming only or those needing emergency battery backup.
Installation practicality
The fixture installs from below in ceilings with as little as 3.5 inch plenum space, eliminating the need for a recessed housing or existing junction box. Plenum-rated cables with quick connects link the trim to the metal remote driver J-Box. The low surface profile simplifies remodel work in tight cavities. It is not for installers who cannot access the plenum area to mount the remote driver box.

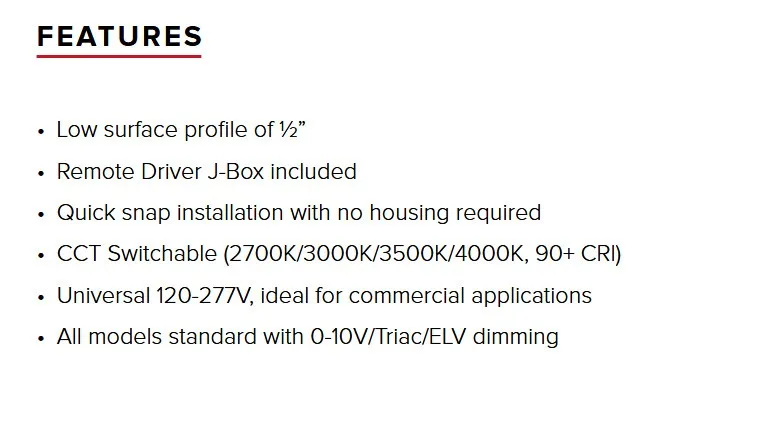

Highlights
- Selectable 2700K–4000K CCT suits any space
- 90+ CRI with R9 >50 renders colours accurately
- 1100 lumens at 13 watts delivers efficient brightness
- Flicker-free 0-10V, Triac or ELV dimming to 5%
- Installs in 3.5 inch plenum without recessed housing
Specifications
| Brand | Prescolite |
|---|---|
| Voltage | 120 |
| Watts | 13 |
Questions about this item
Does the 13-watt downlight generate noticeable heat when left on all day?
At 13 watts the LED trim runs cool; the low-profile cast aluminium housing dissipates heat passively and is rated for IC contact, so continuous operation does not create a hot surface.
What wiring and dimming equipment must already be in place for this fixture to operate?
A 120–277 V circuit is required; dimming needs either a 0–10 V control line for Dim-to-Off or a 120 V Triac/ELV phase-cut dimmer wired to the remote J-Box.
Can the 6-inch square trim be fitted into an existing 6-inch round housing I want to keep?
No — the square aperture and remote driver J-Box are designed for a 3.5-inch plenum opening without a traditional recessed can, so a round housing cannot be reused.
