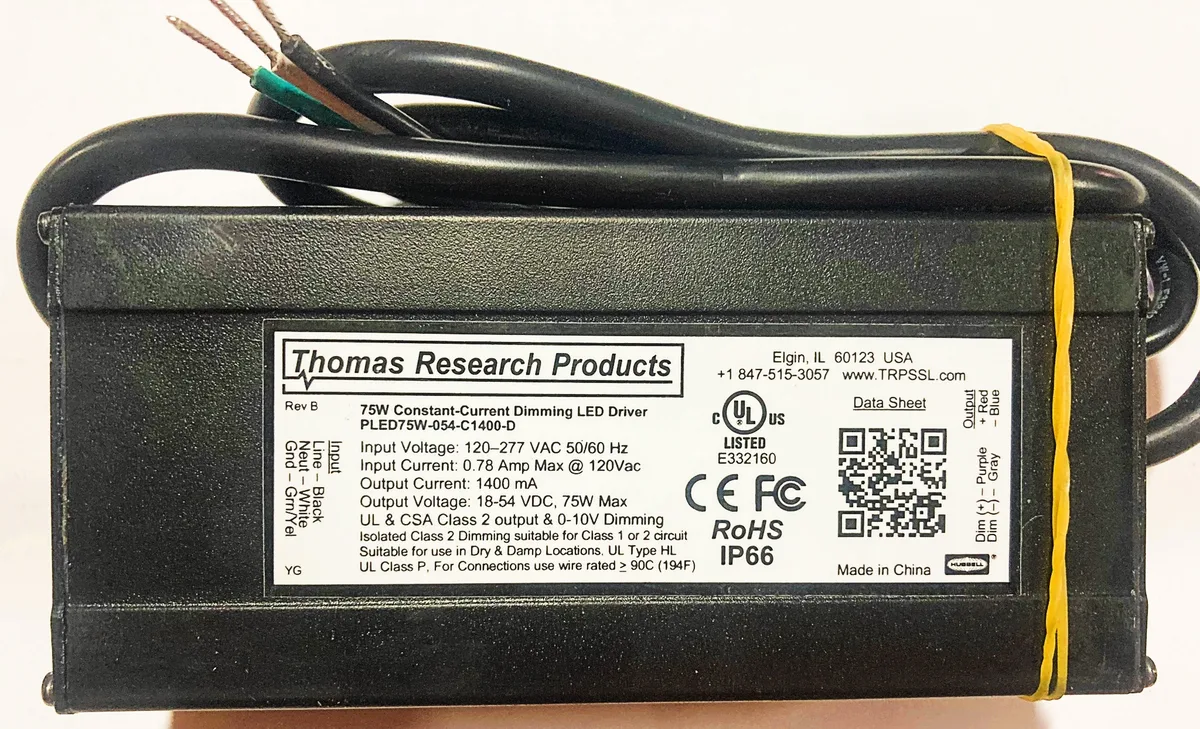

Rectangular aluminium LED driver with side cable entries

Hubbell Incorporated

Hubbell Incorporated PLED75W-054-C1400-D ballast

SKU CH-P5YD-QCNYS

Constant-current LED driver delivers 1400 mA at 18–54 Vdc with 75 W maximum output, dimming, IP66 and NEMA 6 sealing, UL Type HL hazardous-location rating, and -30 °C cold start

  • 1400 mA constant current drives LEDs without flicker
  • 75 W maximum output powers high-output fixtures
  • 18–54 Vdc range matches diverse LED arrays
  • IP66 and NEMA 6 rating seals out dust and water
  • UL Type HL approval allows use in hazardous locations

Driver Purpose & Fit

The Hubbell Incorporated PLED75W-054-C1400-D is a 75W constant-current LED driver delivering 1400mA across an 18 to 54Vdc output range. It suits installers needing flicker-free dimming for dry, damp or hazardous locations where UL Type HL and IP66 ratings are required.

Pre-Install Checks

Verify that the luminaire load stays within the 18 to 54Vdc window and draws no more than 75W at 1400mA. Confirm the supply is 100-277 Vac nominal and that the mounting location will not exceed the 90 C maximum case temperature or fall below the -30 C minimum starting temperature.

Build Integration

The Magic Thermal Advantage aluminum housing provides the smallest footprint for this wattage, freeing space inside tight enclosures. Its IP66 and NEMA6 sealing removes the need for additional weatherproofing, while the UL Dry & Damp and Type HL ratings allow direct use in approved hazardous-area fixtures.

Highlights

  • 1400 mA constant current drives LEDs without flicker
  • 75 W maximum output powers high-output fixtures
  • 18–54 Vdc range matches diverse LED arrays
  • IP66 and NEMA 6 rating seals out dust and water
  • UL Type HL approval allows use in hazardous locations

Specifications

BrandHubbell Lighting Components

Questions about this item

Does the driver ship with mounting hardware or wiring connectors, or must they be sourced separately?

The driver is supplied as the aluminium-housed unit only; mounting brackets, wire leads or connectors are not included and must be purchased separately.

The spec lists a single 1400 mA output — is that the only current setting available?

Yes, the driver provides a fixed 1400 mA constant-current output across the 18 to 54 Vdc range; no alternative current taps or programmable levels are offered.

With a 75 W rating and 1400 mA output, what LED voltage range can actually be driven?

The driver maintains 1400 mA from 18 Vdc up to 54 Vdc, so any LED array whose forward voltage falls within that window can be powered up to the 75 W maximum.
