Hubbell Incorporated

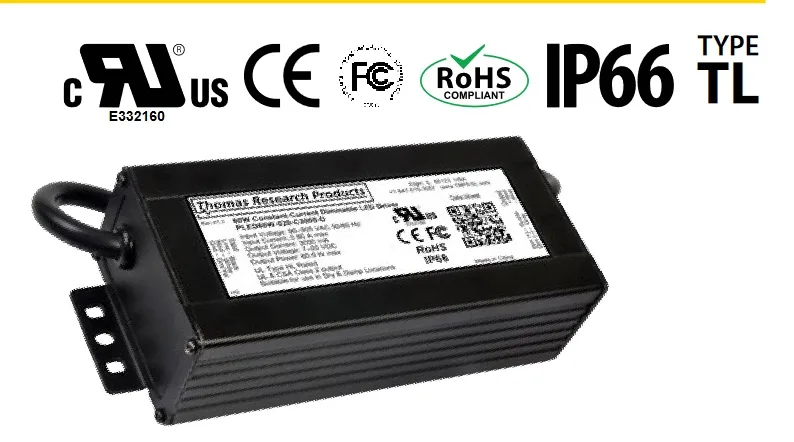

Hubbell Incorporated PLED60W-042-C1400-D LED Driver Ballast
A constant-current LED driver delivering 1400 mA at 14-42 Vdc with a maximum of 58.8 W, dimmable across 100-277 Vac, IP66 and NEMA 6 rated in an aluminium housing
- typeElectrical Ballast
- Constant current output at 1400 mA for stable LED performance
- Wide 100-277 Vac input range suits global installations
- Dimmable driver enables flexible light-level control
- IP66 and NEMA 6 rating protects against dust and water ingress
- Smallest footprint for 60 W class simplifies tight-space mounting
Constant-current LED driver for 1400 mA loads
The Hubbell PLED60W-042-C1400-D delivers a steady 1400 mA output across a 14-42 Vdc range with a maximum of 58.8 watts. It accepts 100-277 Vac nominal input, making it suitable for commercial and industrial luminaires that require precise current regulation. Its compact aluminium housing carries IP66 and NEMA 6 ratings plus UL Type HL approval for hazardous locations. Installers gain a dry-and-damp-location-rated unit that fits tight enclosures.
Replaces larger magnetic
Swapping out bulkier gear for this driver frees valuable space inside fixtures and reduces weight on mounting surfaces. The jump is worth it when a project demands the smallest footprint at 60 watts total power, dimmable operation, and UL hazardous-location compliance in one package. It is not for installations that need a different fixed output current or a non-dimmable constant-voltage supply.
Fits 100-277 Vac branch circuits
The driver connects directly to standard mains voltages from 100 to 277 Vac without extra transformers. Its output matches LED modules rated for 1400 mA within the 14-42 Vdc window. The Black Magic Thermal Advantage housing dissipates heat without external heatsinks, freeing enclosure volume. Wiring must respect the constant-current topology and the dimming control scheme specified for the PLED60W series.
Highlights
- Constant current output at 1400 mA for stable LED performance
- Wide 100-277 Vac input range suits global installations
- Dimmable driver enables flexible light-level control
- IP66 and NEMA 6 rating protects against dust and water ingress
- Smallest footprint for 60 W class simplifies tight-space mounting
Specifications
| Brand | Hubbell |
|---|---|
| type | Electrical Ballast |
Questions about this item
What mounting footprint and housing rating does the PLED60W-042-C1400-D need for installation?
The driver uses the smallest footprint for its wattage and has a Black Magic Thermal Advantage aluminium housing rated IP66 and NEMA6, suitable for UL dry and damp locations.
How do I wire the PLED60W-042-C1400-D and which dimming method is supported?
Connect the input to a 100-277 Vac nominal supply and the output to a 14-42 Vdc LED load drawing 1400 mA; the unit is dimmable per the series specification.
What environmental rating and thermal housing indicate when the PLED60W-042-C1400-D should be replaced?
The IP66 and NEMA6 rated aluminium housing is built for UL dry and damp locations; replace the driver if the housing is damaged, seals fail, or output current drifts from 1400 mA.
