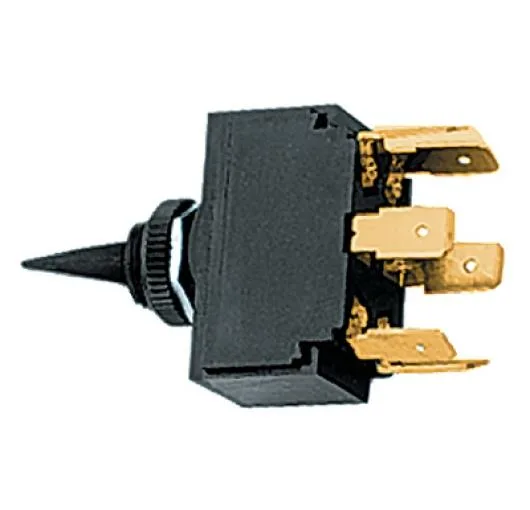

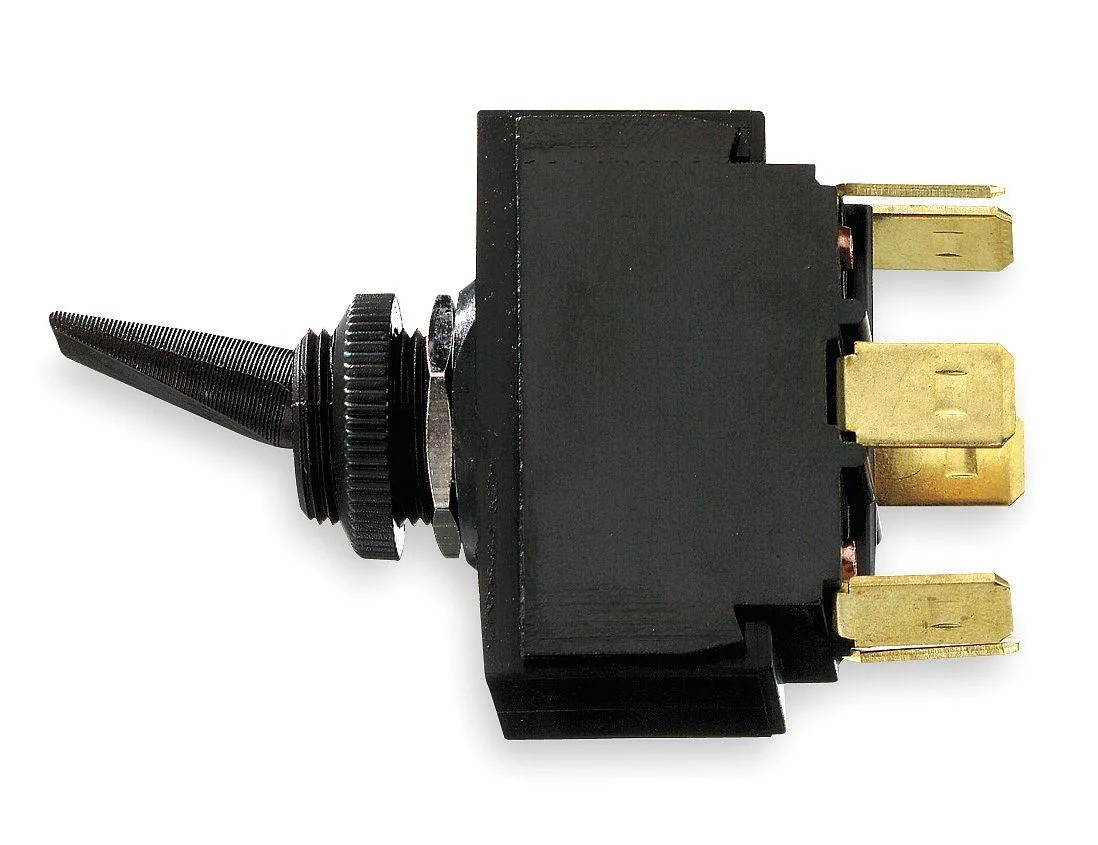

Black marine toggle switch with flattened lever, DPDT, six connections

Hubbell Incorporated

Hubbell Incorporated M223SP Marine Toggle Switch DPDT 6 Connections

SKU CH-7RM6-EWK63

Marine DPDT toggle switch with six connections, 15 A at 12 V DC rating and a flattened black lever for panel mounting

  • Color MappingBlack
  • TypeIndustrial Electrical Controls & Automation
  • DPDT on/off/on control for two circuits
  • 15 A at 12 V DC rating handles marine loads
  • .50 in mounting hole fits standard panels
  • .67 in flattened lever gives sure grip
  • operates from -10 to 105 °F in harsh environments

Marine Toggle Switch for DC Circuits

The Hubbell M223SP is a double-pole double-throw toggle switch rated for 15 amps at 12 volts DC. It features an on-off-on switching function with six solder lug and quick-connect terminals. The switch mounts in a 0.50 inch diameter hole and includes lock nuts for secure installation.

Suitable for Low-Voltage Marine Panels

This switch suits boat builders and electricians wiring 12-volt DC loads such as lighting, pumps or accessories where a centre-off position is required. The operating range extends from minus 10 to 105 degrees Fahrenheit. It is not intended for AC mains circuits or for applications demanding sealed waterproof contacts beyond the standard marine construction.

15 A at 12 V DC Contact Rating

The decisive specification is the 15 ampere DC contact rating at 12 volts, which sets the maximum load this device can safely switch. The 0.47 inch minus 32 UNC stem thread and 0.67 inch flattened lever determine panel fit and user feel. Verify that your circuit current stays within this limit before specifying the part.

Highlights

  • DPDT on/off/on control for two circuits
  • 15 A at 12 V DC rating handles marine loads
  • .50 in mounting hole fits standard panels
  • .67 in flattened lever gives sure grip
  • operates from -10 to 105 °F in harsh environments

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingBlack
TypeIndustrial Electrical Controls & Automation

Questions about this item

Should I choose the On/Off/On DPDT version or look for a different switch function?

The M223SP is an On/Off/On DPDT switch with six connections, giving you two separate on positions and a centre off — choose it when you need to control two circuits independently from one lever.

What does the 15 A at 12 V DC rating mean when the switch is installed in a boat circuit?

It means the contacts are rated to carry up to 15 amps on a 12‑volt DC load continuously within the -10 °F to 105 °F operating range.

The stem is 0.47 in‑32 UNC-2A — what panel thickness does that thread allow?

The 0.47‑in diameter, 32‑thread stem fits a 0.50‑in mounting hole and secures with the included lock nuts for panels up to roughly 0.37 in thick.
