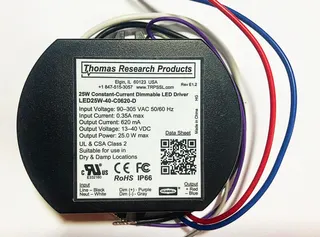

Small rectangular black plastic driver unit with side terminals

Hubbell Incorporated

Hubbell Incorporated LED 25W-40-C0620-D Constant Current Driver ballast

SKU CH-6RJN-12PFB

Constant-current LED driver delivers 620 mA at 13–40 Vdc with 0–10 V dimming and 100–277 Vac input

  • Constant 620mA output for stable LED performance
  • Universal 100-277V input works across supply voltages
  • 0-10V dimming enables adjustable light levels
  • UL Dry & Damp rated for protected installations
  • Operates from -30°C to 90°C case temperature

Driver output range

This constant-current LED driver delivers 620 mA across a 13 V to 40 Vdc window with a maximum output of 24.8 W. It accepts a universal 100 V to 277 Vac supply and includes 0–10 V dimming control. The unit carries UL Dry & Damp Location rating, UL 8750 and Class 2 compliance, and is housed in Black Magic Thermal Advantage plastic.

Indoor lighting installs

Installers retrofitting or building linear LED fixtures in commercial, retail or institutional interiors will find the wide input range and compact plastic housing straightforward to integrate. The -30 °C minimum starting temperature also suits unheated spaces such as parking garages or cold-storage areas. Projects requiring higher drive currents, non-dimming operation, or outdoor wet-location ratings should select a different model.

620 mA constant current

The single specification that determines compatibility is the fixed 620 mA output current; the LED array must be rated for exactly this value. Matching the load voltage to the 13 V to 40 Vdc range and confirming the 24.8 W power ceiling complete the selection check.

Highlights

  • Constant 620mA output for stable LED performance
  • Universal 100-277V input works across supply voltages
  • 0-10V dimming enables adjustable light levels
  • UL Dry & Damp rated for protected installations
  • Operates from -30°C to 90°C case temperature

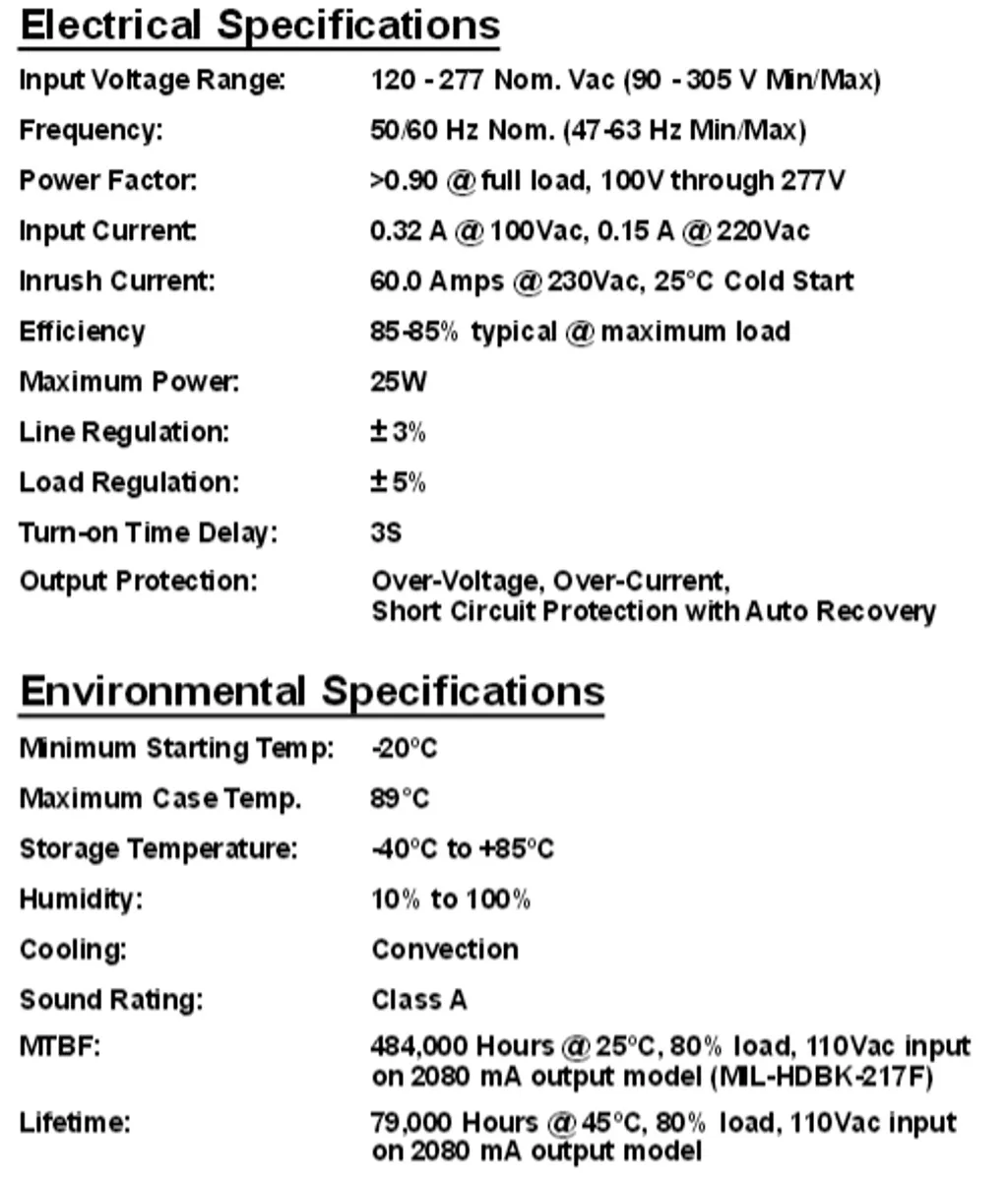

Specifications

BrandHubbell Lighting Components

Questions about this item

What input voltage range must my supply provide for the 100-277 Vac driver?

The driver accepts a universal 100 to 277 Vac nominal input, so any standard mains supply within that range will work.

Can I dim the 620 mA output using a 0-10 V control signal?

Yes, the dimming models feature 0-10 V dimming, allowing the constant 620 mA current to be reduced smoothly.

How do I confirm the driver is operating within its 90 °C case-temperature limit after installation?

Measure the case temperature under load; it must stay at or below 90 °C for the driver to run as intended.
