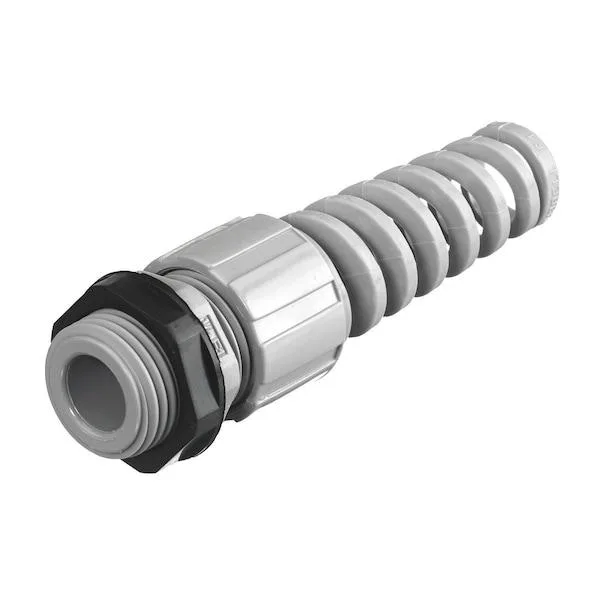

Gray nylon miniature liquidtight cord connector with spiral strain relief

Hubbell Incorporated

Hubbell Incorporated HJ1011G Miniature Liquidtight Spiral Gray

SKU CH-XYK5-49YF4

A liquid-tight cord connector with spiral strain relief for 0.14 to 0.20 inch cables and 1/4 inch MNPT box connection

  • TypeMiniature Liquidtight with Spiral
  • ColorGray
  • Gray nylon body resists corrosion
  • Spiral strain relief protects cable from sharp bends
  • Accepts cords from .14 to .20 inch diameter
  • Insulated straight connector with 1/4 MNPT box thread
  • CSA and UL listed for safety compliance

Miniature Liquidtight Cord Connector

The Hubbell HJ1011G is a straight nylon cord connector that provides a liquidtight seal for a single cable. It suits installers who need a compact gland for tight enclosures and exposed runs. The gray body blends with standard conduit and panel finishes. It is rated by CSA and UL for ordinary locations only.

Nylon Construction with Spiral Strain Relief

Both the connector body and the external strain relief are moulded from nylon for chemical resistance and impact strength. The spiral relief extends 1.25 in beyond the gland to distribute bending forces along the cable jacket. A 1/4 in MNPT thread secures the fitting into a threaded hub or knockout. The overall length from box face to connector end is .9 in.

Cable Diameter Range .14 in to .20 in

This connector accepts only cables with an outside diameter between .14 in and .20 in. Cables thinner than .14 in will not seal; thicker cables will not enter the gland. Buyers who need to terminate larger cords must select a different fitting. The fitting carries no hazardous-location rating.

Highlights

  • Gray nylon body resists corrosion
  • Spiral strain relief protects cable from sharp bends
  • Accepts cords from .14 to .20 inch diameter
  • Insulated straight connector with 1/4 MNPT box thread
  • CSA and UL listed for safety compliance

Specifications

BrandHubbell Wiring Device-Kellems
ModelHJ1011G
TypeMiniature Liquidtight with Spiral
ColorGray

Questions about this item

What does the 1/4 in MNPT box connection mean for thread compatibility?

The 1/4 in MNPT thread mates with a matching female NPT opening on an enclosure or conduit body, sealing the cord entry point to the box.

What are the overall length and strain-relief length that determine whether it fits inside my enclosure?

The connector measures .9 in from the box face to the end, and the external spiral strain relief adds 1.25 in beyond the gland nut.

How is the spiral strain relief installed onto the cord, and what step is often missed?

Slide the gland nut and spiral onto the cable, insert the cord through the body, then tighten the gland nut until the spiral grips the jacket; the missed step is fully seating the spiral before final tightening.
