Black flush-mount 30 A 125 V single receptacle, reinforced thermoplastic polyester housing, screw terminals

Hubbell Incorporated

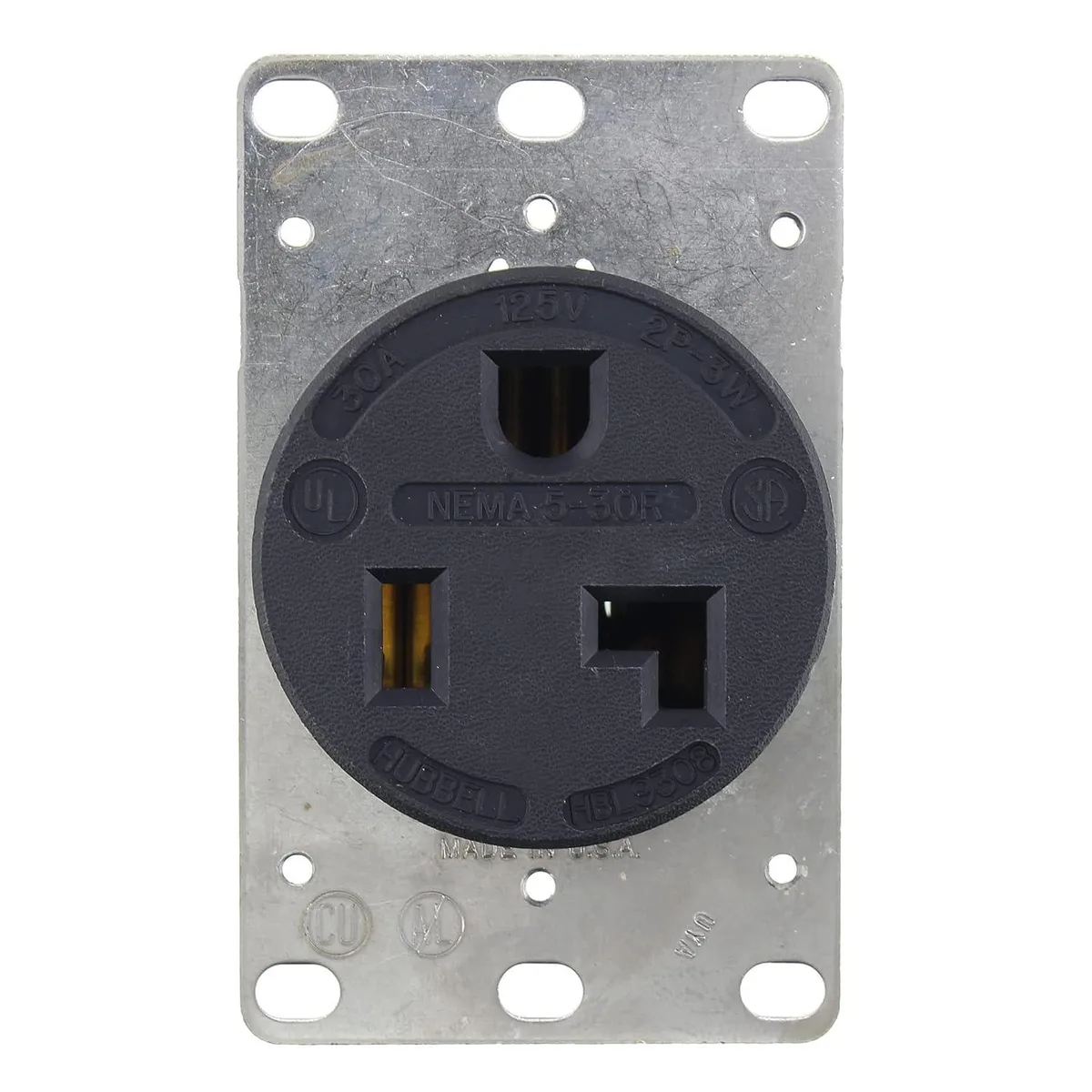

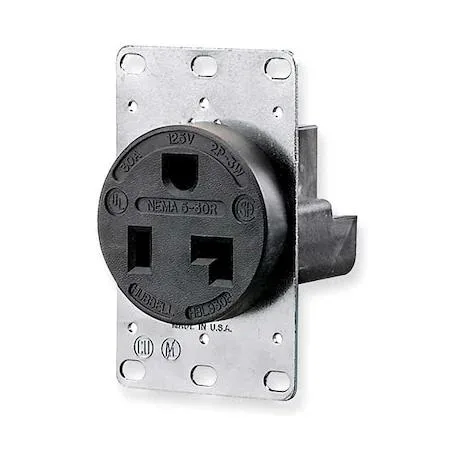

Hubbell Incorporated HBL9308 30 A 125V 5-30R receptacle

SKU CH-46VY-B70J9

A grounded, single-gang 30 A 125 V receptacle with screw terminals and a reinforced thermoplastic housing

  • Color MappingBlack
  • TypeWiring Devices
  • 30 A 125 V power delivery for high-draw equipment
  • NEMA 5-30R configuration matches dedicated 30 A circuits
  • CSA certified and UL E2186 listed for code compliance
  • Reinforced thermoplastic polyester housing resists impact and heat
  • Flush-mount single-gang design fits standard electrical boxes

HBL9308 30 A 125 V receptacle

The Hubbell HBL9308 is a straight-blade 5-30R receptacle rated for 30 A at 125 V AC. It is built for single-phase circuits that require a grounded, polarized outlet in a single-gang flush-mount housing. The reinforced thermoplastic polyester body carries CSA certification and meets UL E2186 and NEMA WD-6 standards. This device suits workshops, garages or light-industrial locations where a dedicated 30 A supply is needed.

Compatibility checks before ordering

Verify that the circuit breaker, wiring gauge and conduit are rated for 30 A at 125 V single-phase service. The receptacle uses screw terminals for a three-wire connection and fits a standard single-gang flush box with NEMA 1 enclosure rating. Confirm that local code permits a non-GFCI grounded outlet in the intended location. No cover is included, so a suitable wall plate must be sourced separately.

Behaviour under sustained load

The housing material and terminal design are intended to handle continuous 30 A current without overheating when installed on correctly sized conductors. CSA and UL listings confirm compliance with temperature-rise limits for the rated duty cycle. The straight-blade 5-30R configuration maintains secure blade contact during prolonged operation, reducing resistance buildup at the connection point. Performance remains stable as long as supply voltage stays within the 125 V nominal rating.

Highlights

  • 30 A 125 V power delivery for high-draw equipment
  • NEMA 5-30R configuration matches dedicated 30 A circuits
  • CSA certified and UL E2186 listed for code compliance
  • Reinforced thermoplastic polyester housing resists impact and heat
  • Flush-mount single-gang design fits standard electrical boxes

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingBlack
TypeWiring Devices

Questions about this item

Does the HBL9308 receptacle include a cover plate or mounting hardware, or do I need to buy them separately?

The receptacle is supplied without a cover; a matching wall plate and mounting screws must be purchased separately.

How do I choose between the 5-30R configuration and other NEMA types for a 30 A 125 V circuit?

Select the 5-30R version when the plug on your equipment matches that blade pattern; other NEMA configurations have different blade layouts and will not fit.

What does the 30 A 125 V rating mean when the HBL9308 is installed in a real circuit?

It means the receptacle can continuously carry up to 30 amps at 125 volts AC on a properly protected single-phase branch circuit.
