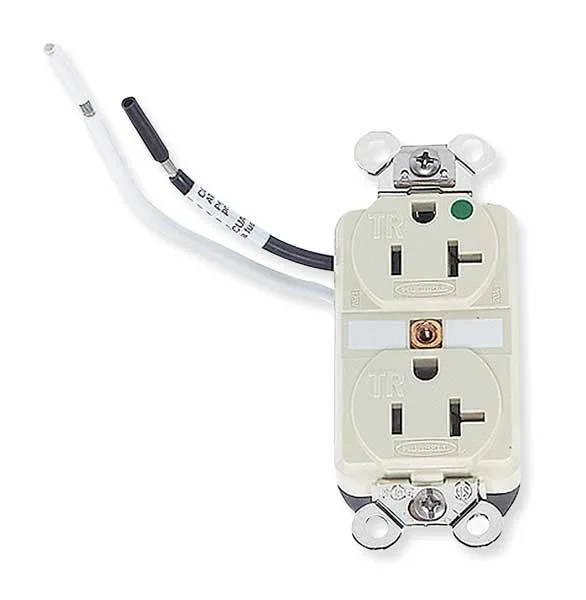

Ivory duplex receptacle with two grounded slots, thermoplastic housing, nickel-plated brass contacts visible

Hubbell Incorporated

Hubbell Incorporated HBL8300SGIA 20A 125V Duplex Receptacle

SKU CH-B3QJ-JZ58J

A 20 A, 125 VAC hospital-grade duplex receptacle with tamper-resistant design, nickel-plated brass contacts and four-point grounding for demanding indoor applications

  • Color MappingIvory
  • TypeWiring Devices
  • Hospital-grade durability meets demanding applications
  • Tamper-resistant design protects against accidental contact
  • Nickel-plated brass contacts ensure reliable conductivity
  • Four-point grounding system accommodates #12-#10 AWG copper wire
  • UL 94V-0 and UL 94-5 VA rated thermoplastic housing resists flammability

20 A Hospital-Grade Duplex Receptacle

The Hubbell HBL8300SGIA is a 20 A 125 VAC duplex receptacle built to hospital-grade standards. It uses a NEMA 5-20R configuration with a tamper-resistant shutter mechanism. Nickel-plated brass contacts and a UL 94V-0 rated thermoplastic housing provide durability for demanding indoor environments.

Installers needing code-compliant hospital-grade

This device suits electricians and facility managers wiring patient-care areas or other locations that require hospital-grade listing. It is not intended for buyers who need GFCI or AFCI protection integrated into the receptacle, nor for outdoor or wet-location installations.

Four-point grounding with #12–#10 AWG wire range

The receptacle accommodates copper conductors from #12 to #10 AWG using a four-point grounding system. Wire leads enable fast installation, while screw terminals allow back or side wiring. The assembly meets CSA C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6 and UL 498 File E2186.

Highlights

  • Hospital-grade durability meets demanding applications
  • Tamper-resistant design protects against accidental contact
  • Nickel-plated brass contacts ensure reliable conductivity
  • Four-point grounding system accommodates #12-#10 AWG copper wire
  • UL 94V-0 and UL 94-5 VA rated thermoplastic housing resists flammability

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingIvory
TypeWiring Devices

Questions about this item

Is this 20 A 125 V receptacle the right choice for a 20 A branch circuit?

Yes, the device is rated 20 A at 125 VAC with a NEMA 5-20R configuration, matching a 20 A branch circuit requirement.

What does the 20 A 125 V rating mean when the receptacle is installed?

It can continuously supply up to 20 amps at 125 volts, uses nickel-plated brass contacts, and accepts #12–#10 AWG copper wire via back or side wiring.

Which standards govern the NEMA 5-20R interface and what do they limit in practice?

The receptacle meets UL 498, CSA C22.2 No. 42, Federal Spec W-C-596 and NEMA WD-6, capping voltage at 125 VAC and current at 20 A with a 2,000 V dielectric withstand.
