Red duplex MRI receptacle with non-ferrous construction and flush mount design

Hubbell Incorporated

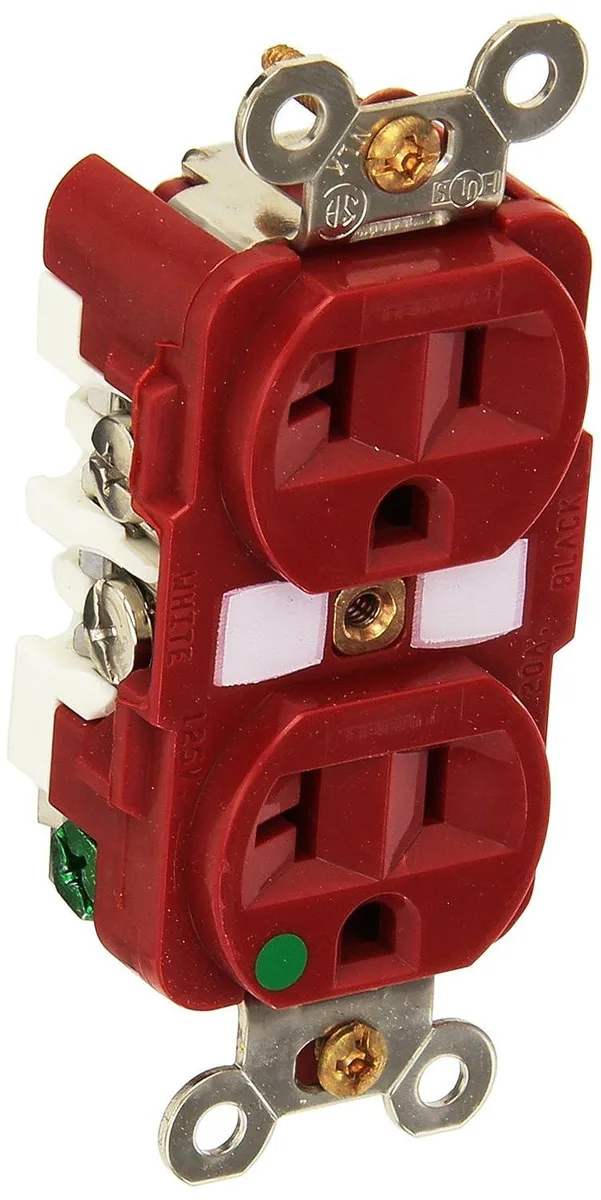

Hubbell Incorporated HBL8300RMRI 20A 125V Duplex MRI Receptacle Red

SKU CH-AQP5-CK1SC

Hospital-grade 20 A 125 V duplex receptacle with non-ferrous construction for MRI environments

  • Color MappingRed
  • TypeWiring Devices
  • Non-ferrous construction prevents MRI interference
  • Hospital-grade rating meets Federal Spec W-C-596
  • 20 A 125 VAC NEMA 5-20R duplex outlet
  • Back and side wiring accepts #12–#10 AWG copper
  • Impact-resistant nylon face with four-point grounding

Medical-grade MRI receptacle

The Hubbell HBL8300RMRI is a 20 A 125 VAC hospital-grade duplex receptacle built for MRI suites and other areas where magnetic interference must be avoided. Its all non-ferrous construction and nickel-plated brass contacts meet Federal Specification W-C-596 and UL hospital-grade requirements for patient-care spaces.

Thermal and electrical performance

The device operates continuously from -40 °F to 167 °F with a maximum continuous temperature of 75 °C. Nickel-plated contacts and an integral ground strap provide low-resistance connections, while the four-point grounding system maintains a reliable ground path under normal load.

Installation and daily use

A deep impact-resistant nylon face resists damage in busy clinical areas. Back and side screw terminals accept 12 to 10 AWG solid or stranded copper wire, and mounting hardware is included for flush indoor installation. The red colour coding identifies the circuit at a glance.

Highlights

  • Non-ferrous construction prevents MRI interference
  • Hospital-grade rating meets Federal Spec W-C-596
  • 20 A 125 VAC NEMA 5-20R duplex outlet
  • Back and side wiring accepts #12–#10 AWG copper
  • Impact-resistant nylon face with four-point grounding

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingRed
TypeWiring Devices

Questions about this item

How is the HBL8300RMRI receptacle installed and which wiring step is most often missed?

Install by mounting the device flush in a standard box, then connect #12 to #10 AWG copper conductors to the back or side screw terminals; the step most often missed is tightening the integral four-point grounding strap to the box before securing the face.

What maintenance or replacement will the HBL8300RMRI need over time?

The non-ferrous nickel-plated brass contacts and deep nylon face are built for hospital-grade durability; no routine maintenance is required, but inspect the screw-terminal torque and grounding continuity during periodic electrical safety audits.

What is the first operating limit reached under sustained load in an MRI suite?

The receptacle is rated 20 A at 125 VAC with a maximum continuous temperature of 75 °C (167 °F); sustained currents near 20 A in high-ambient conditions will hit the thermal limit before the electrical rating is exceeded.
