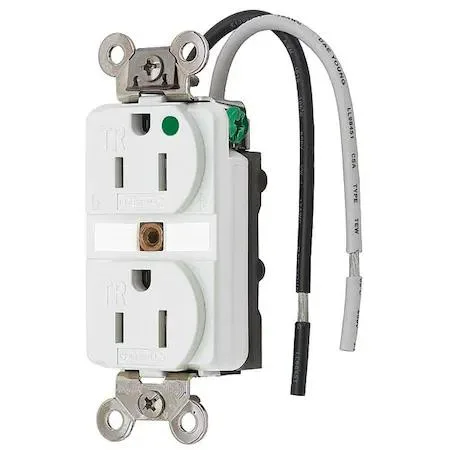

White thermoplastic duplex receptacle with two vertical slots and a round ground hole

Hubbell Incorporated

Hubbell Incorporated HBL8200SGWA 15A Duplex Receptacle 125VAC White

SKU CH-D46E-JEQVD

A hospital-grade 15 A 125 V duplex receptacle with tamper-resistant contacts, integral wire leads and a four-point grounding system

  • TypeLight Switch
  • Color/FinishWhite
  • Color MappingWhite
  • Hospital-grade durability backed by 2000V dielectric strength
  • Tamper-resistant contacts protect against accidental insertion
  • Four-point grounding system ensures secure connections
  • Thermoplastic housing meets UL94V-0 flammability standards
  • Integral wire leads simplify back or side wiring

15A 125VAC Duplex Receptacle

This 15-amp 125-volt duplex receptacle is built for extra heavy-duty and hospital-grade environments. It suits electricians and facility managers who need a tamper-resistant outlet with integral wire leads for faster installation. The NEMA 5-15R configuration fits standard North American plugs.

Thermoplastic housing with four-point grounding

The white thermoplastic body carries a UL94V-0 and UL94-5VA flammability rating and meets IP20 indoor suitability. Nickel-plated brass contacts and a one-piece ground strap form a four-point grounding system that accepts 12-10 AWG copper wire. Integral leads and screw terminals allow back or side wiring, while the included mounting hardware and grounding clip support flush mounting with no exposed live parts when installed as specified.

Rated for 15 amps at 125 volts

The device withstands a dielectric voltage of at least 2000 volts and is certified for current interrupting at full rated current. It is not suited for circuits requiring 20-amp capacity or higher voltage ratings. Installers needing a different NEMA configuration or outdoor-rated ingress protection must select an alternative product.

Highlights

  • Hospital-grade durability backed by 2000V dielectric strength
  • Tamper-resistant contacts protect against accidental insertion
  • Four-point grounding system ensures secure connections
  • Thermoplastic housing meets UL94V-0 flammability standards
  • Integral wire leads simplify back or side wiring

Specifications

TypeLight Switch
BrandHUBBELL WIRING DEVICE-KELLEMS
Color/FinishWhite
Color MappingWhite

Questions about this item

What NEMA configuration does this 15 A 125 VAC duplex receptacle use, and what plug types does it accept?

It uses the 5-15R configuration, accepting standard 5-15P plugs rated up to 15 A at 125 VAC.

What wall-box depth and mounting style are required for this flush-mount duplex receptacle?

It installs in a standard flush wall box using the included mounting hardware and grounding clip.

How are the integral wire leads and screw terminals connected, and which step is often missed?

Strip #12–#10 AWG copper wire, attach to screw terminals or use the integral leads, then secure the grounding clip to the box.
