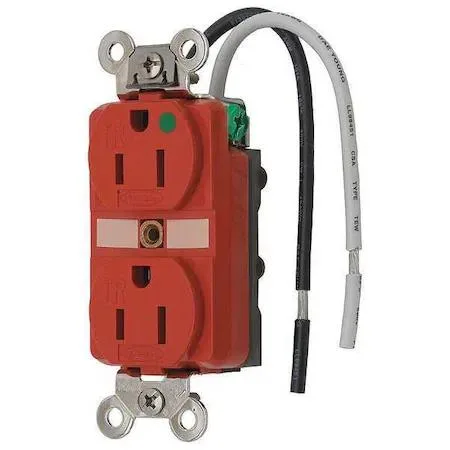

Red hospital-grade duplex receptacle with tamper-resistant slots and integral wire leads

Hubbell Incorporated

Hubbell Incorporated HBL8200SGRA Duplex Straight Blade Receptacle

SKU CH-Y7G5-ZY6AR

A 15 A, 125 VAC hospital-grade duplex receptacle with tamper-resistant shutters, four-point grounding and integral wire leads for #12–#10 AWG copper

  • Color MappingRed
  • TypeWiring Devices
  • Hospital-grade durability for demanding commercial and institutional environments
  • Tamper-resistant mechanism protects against accidental insertion of foreign objects
  • Integral wire leads enable fast installation with #12-#10 AWG copper wire
  • Four-point grounding system with nickel-plated brass strap ensures secure connections
  • UL94V-0 rated thermoplastic housing withstands -40°F to +167°F operating temperatures

Hospital-grade duplex receptacle

The Hubbell HBL8200SGRA is a 15 A, 125 VAC straight-blade duplex receptacle built to extra heavy-duty hospital grade specifications. It is intended for commercial and institutional wiring projects that require a tamper-resistant, flush-mount outlet with integral wire leads for faster termination.

Thermals and power handling

The device carries a UL94V-0 flammability rating and is rated for continuous operation from -40 °F to +167 °F, with a maximum continuous use temperature of 75 °C. A four-point grounding system with a one-piece nickel-plated brass ground strap maintains a reliable ground path under normal load.

Deciding specification

The integral wire leads accept only #12 to #10 AWG copper conductors, so installers must verify that the circuit wiring matches this gauge range before specifying the receptacle.

Highlights

  • Hospital-grade durability for demanding commercial and institutional environments
  • Tamper-resistant mechanism protects against accidental insertion of foreign objects
  • Integral wire leads enable fast installation with #12-#10 AWG copper wire
  • Four-point grounding system with nickel-plated brass strap ensures secure connections
  • UL94V-0 rated thermoplastic housing withstands -40°F to +167°F operating temperatures

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingRed
TypeWiring Devices

Questions about this item

How do I install the HBL8200SGRA receptacle with its integral wire leads, and what step is often missed?

Connect the integral leads to #12 or #10 AWG copper wire only, then secure the flush-mount device with the included hardware; the step often missed is confirming the four-point grounding strap makes solid contact with the metal box.

What maintenance or replacement will this hospital-grade receptacle need over time?

The tamper-resistant shutters and impact-resistant thermoplastic housing are built for continuous duty; replacement is only required if the receptacle shows physical damage, overheating signs, or fails a periodic continuity test.

What is the first limit reached under sustained heavy load?

The 15 A at 125 VAC rating and 75 °C maximum continuous operating temperature define the thermal limit; sustained loads near 15 A will hit the temperature ceiling before the 10 kA interrupting rating becomes relevant.
