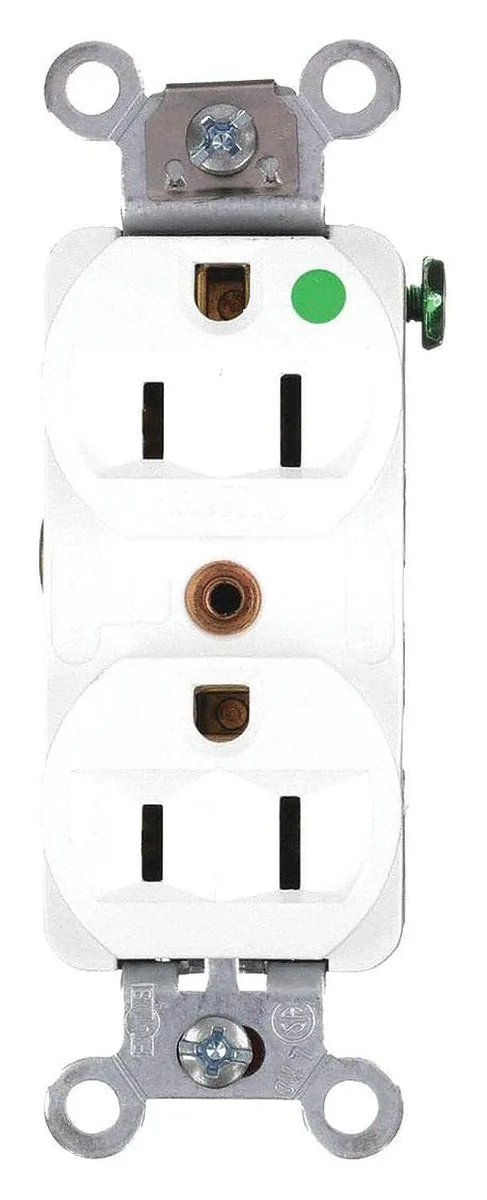

White hospital-grade duplex receptacle with impact-resistant thermoplastic housing and finder groove face

Hubbell Incorporated

Hubbell Incorporated HBL8200HW 15A 125V Duplex Receptacle

SKU CH-STRM-XNRYY

A hospital-grade 15A 125V duplex receptacle with impact-resistant thermoplastic housing, back and side wiring for 14-10 AWG copper wire, and a four-point grounding system

  • Color MappingBlanc
  • TypeWiring Devices
  • Hospital-grade construction meets federal specifications for commercial use
  • 15A 125V rating delivers up to 1875W maximum power
  • Back and side wiring accepts #14 to #10 AWG copper wire
  • Four-point grounding system enhances electrical safety
  • Impact-resistant thermoplastic housing withstands 2000V dielectric strength

Hospital Grade Duplex Receptacle

This hospital grade duplex receptacle is built for commercial environments that demand heavy-duty construction. It carries a 15 A 125 V AC rating with a NEMA 5-15R configuration and a maximum load of 1875 W. The impact-resistant thermoplastic housing features a finder groove face to help prevent breakage under physical abuse.

15 A 125 V AC Electrical Rating

The single specification that decides fit is the 15 amp 125 volt AC rating with NEMA 5-15R configuration. This device complies with federal specifications for hospital grade devices and withstands a minimum dielectric voltage of 2000V. It also meets UL94 V-0 flammability standards for safety in demanding installations.

Back and Side Wiring Installation

Installation uses back and side wired screw terminals that accept #14 to #10 AWG stranded or solid copper wire. A four-point grounding system and included grounding staple, mounting hardware, and wall plate simplify the job. The slender compact design fits standard boxes, though the deep face profile may require checking box depth before mounting.

Highlights

  • Hospital-grade construction meets federal specifications for commercial use
  • 15A 125V rating delivers up to 1875W maximum power
  • Back and side wiring accepts #14 to #10 AWG copper wire
  • Four-point grounding system enhances electrical safety
  • Impact-resistant thermoplastic housing withstands 2000V dielectric strength

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingBlanc
TypeWiring Devices

Questions about this item

What does the 15 A / 125 V rating mean for everyday use?

It means the receptacle can safely supply up to 15 amps at 125 volts AC, giving a maximum load of 1875 watts for standard North American plug-in equipment.

How does the NEMA 5-15R configuration limit what I can plug in?

The 5-15R layout accepts only standard 15 A, 125 V straight-blade plugs; higher-amperage or twist-lock plugs will not fit.

What wall-box depth and wire gauges are needed to install this receptacle?

It fits a standard box, uses the supplied mounting hardware, and accepts #14 to #10 AWG solid or stranded copper on both back and side terminals.
