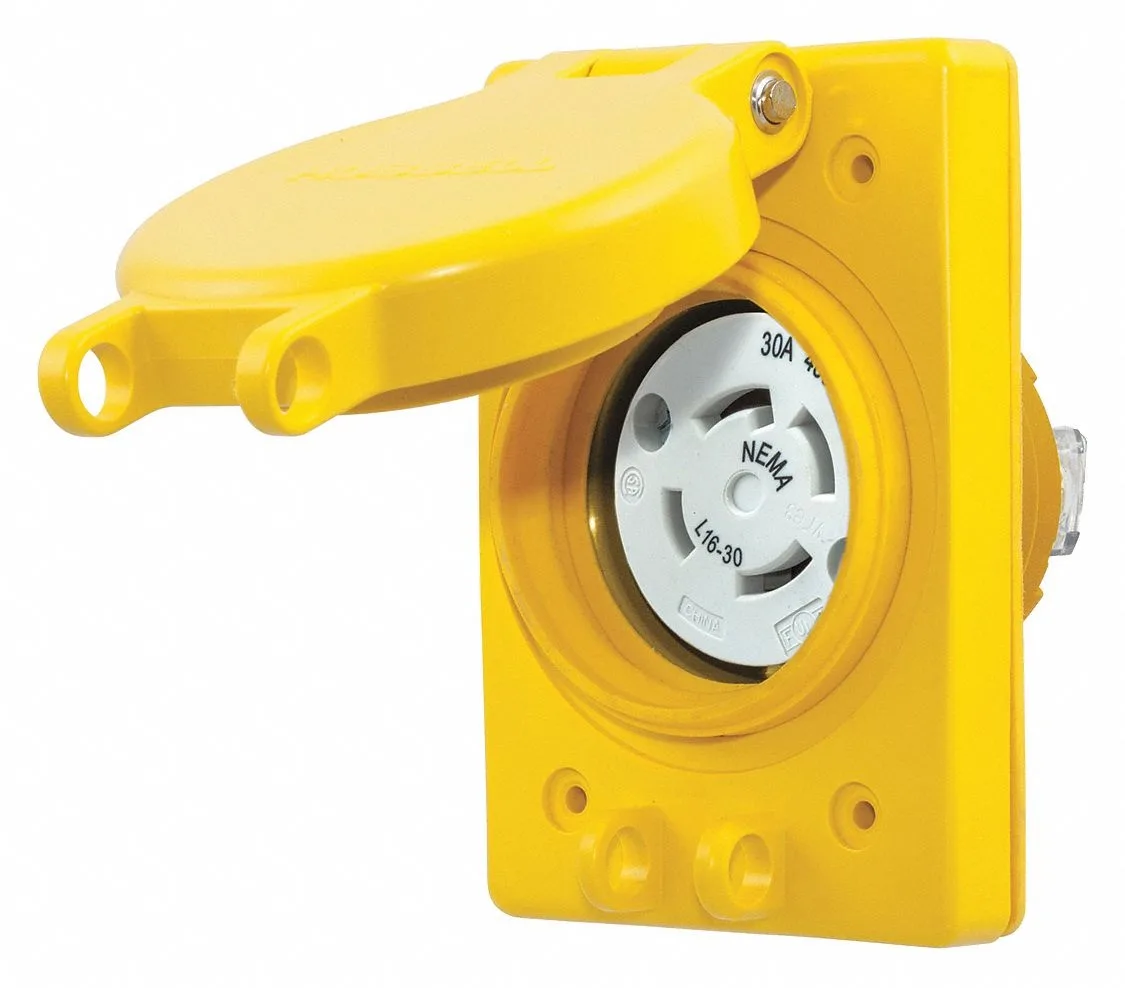

Yellow watertight locking receptacle with rectangular flange

Hubbell Incorporated

Hubbell Incorporated HBL69W76 Watertight Flanged Locking Receptacle

SKU CH-N6FR-5YTFZ

A 30 A, 480 V AC flanged locking receptacle rated NEMA L16-30R with IP69K and NEMA 4, 4X, 6, 6P, 12 enclosure protection

  • TypeWatertight Devices
  • Color/FinishYellow
  • Watertight protection in harsh environments with NEMA 4, 4X, 6, 6P, 12 and IP69K ratings
  • Reliable three-phase power delivery at 30 A and 480 V AC with L16-30R locking configuration
  • Durable PBT body and stainless steel hardware resist corrosion and impact in industrial settings
  • Wide operating range from -40 °F to +140 °F suits extreme indoor and outdoor installations
  • Accepts #18 AWG to #8 AWG conductors via screw terminals for flexible wiring options

30 A 480V Watertight Locking Receptacle

The Hubbell HBL69W76 is a flush-mount, flanged receptacle rated for 30 amps at 480V AC three-phase power. Its NEMA L16-30R locking configuration provides a secure, polarized connection for industrial equipment. The PBT body with thermoplastic elastomer housing meets NEMA Types 4, 4X, 6, 6P, 12 and IP69K enclosure ratings for watertight and impact-resistant performance.

Installations needing NEMA L16-30R at 30 A

This device suits facilities requiring a three-pole, four-wire locking receptacle rated for 480V AC in wet or corrosive environments. It accepts wire sizes from #18 AWG to #8 AWG via screw terminals. Builders needing a different NEMA configuration, a higher amperage rating, or a non-locking straight-blade outlet should select an alternative product.

Flush mount with rectangular flange

The rectangular flange allows straightforward flush mounting into compatible panels or boxes using stainless steel hardware. Screw terminals accommodate the specified wire range for reliable termination. Ensure the mounting surface matches the flange dimensions and that wiring follows the polarized locking layout to avoid misalignment or connection faults.

Highlights

  • Watertight protection in harsh environments with NEMA 4, 4X, 6, 6P, 12 and IP69K ratings
  • Reliable three-phase power delivery at 30 A and 480 V AC with L16-30R locking configuration
  • Durable PBT body and stainless steel hardware resist corrosion and impact in industrial settings
  • Wide operating range from -40 °F to +140 °F suits extreme indoor and outdoor installations
  • Accepts #18 AWG to #8 AWG conductors via screw terminals for flexible wiring options

Specifications

BrandHUBBELL
TypeWatertight Devices
Color/FinishYellow

Questions about this item

Does the rectangular flange fit the cutout I already have in the enclosure?

The receptacle uses a flush-mount rectangular flange; verify your cutout matches the manufacturer’s flange dimensions before installation.

Will the NEMA L16-30R locking face mate with the L16-30P plugs already on my cables?

Yes, the polarized L16-30R configuration is designed to accept matching NEMA L16-30P locking plugs.

How can I confirm the IP69K seal is effective after wiring the screw terminals?

After torquing the terminals, close the cover and perform a visual inspection of the gasket alignment; the device meets IP69K when properly assembled.
