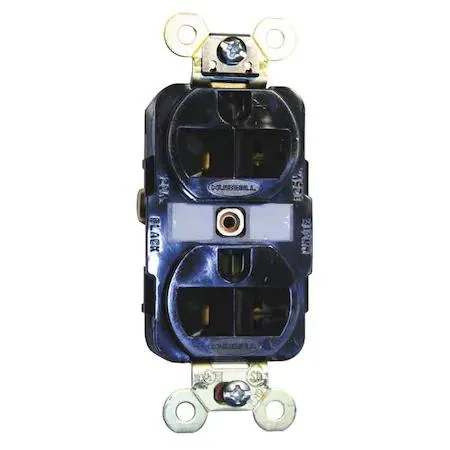

Black duplex receptacle with two vertical slots and a grounding hole, flush-mount nylon face

Hubbell Incorporated

Hubbell Incorporated HBL5362BK 20A 125V Duplex Receptacle

SKU CH-GPY7-NF2YX

A 20A 125V duplex receptacle with NEMA 5-20R configuration, back and side wiring for #14–#10 AWG copper, nylon face, nickel-plated brass contacts, flush mount, integral ground strap.

  • Color MappingBlack
  • TypeWiring Devices
  • Rated 20A 125V AC for reliable power delivery
  • NEMA 5-20R configuration ensures standard plug compatibility
  • Back and side wiring accepts #14 to #10 AWG copper conductors
  • Nylon face with reinforced PET base withstands -40°C to +75°C
  • UL Listed, CSA Certified and Federal Specification W-C-596 compliant

Industrial-Grade Power Connection

The Hubbell HBL5362BK is a 20A 125V AC duplex receptacle built to NEMA 5-20R configuration for industrial environments. It accepts #14 to #10 AWG copper conductors using both back and side wiring screw terminals. The nylon face and reinforced PET base provide durability in demanding conditions.

Included Hardware and Compliance

Mounting hardware is supplied for standard flush installation, and an integral one-piece brass ground strap with grounding clip ensures reliable bonding. The device meets UL Listed, CSA Certified, Federal Specification W-C-596, and NEMA WD-6 standards for safety and performance. Nickel-plated brass contacts resist corrosion over the operating temperature range of -40°C to +75°C.

Straightforward Flush Mount Install

Electricians wire the screw terminals with standard tools and secure the unit using the provided hardware; the deep body design allows circuit labeling directly on the faceplate. Installers must verify the enclosure suits the flush mount depth and that conductors are within the #14 to #10 AWG range. It is not suited for applications requiring higher amperage or alternative NEMA configurations.

Highlights

  • Rated 20A 125V AC for reliable power delivery
  • NEMA 5-20R configuration ensures standard plug compatibility
  • Back and side wiring accepts #14 to #10 AWG copper conductors
  • Nylon face with reinforced PET base withstands -40°C to +75°C
  • UL Listed, CSA Certified and Federal Specification W-C-596 compliant

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
Color MappingBlack
TypeWiring Devices

Questions about this item

Will the #14 to #10 AWG screw terminals need periodic retightening?

The nickel-plated brass contacts on the back and side wired terminals maintain clamping force under vibration, so retightening is not a scheduled maintenance item.

What is the continuous current limit before the nylon face or PET base overheats?

The device is UL Listed and CSA Certified for 20 A at 125 V AC; the -40 °C to +75 °C operating range assumes operation at that rated load.

Does the integral brass ground strap run warm when the receptacle carries 20 A all day?

The one-piece brass ground strap and nickel-plated contacts are sized for the full 20 A rating, so temperature rise stays within the UL and CSA limits at continuous load.
